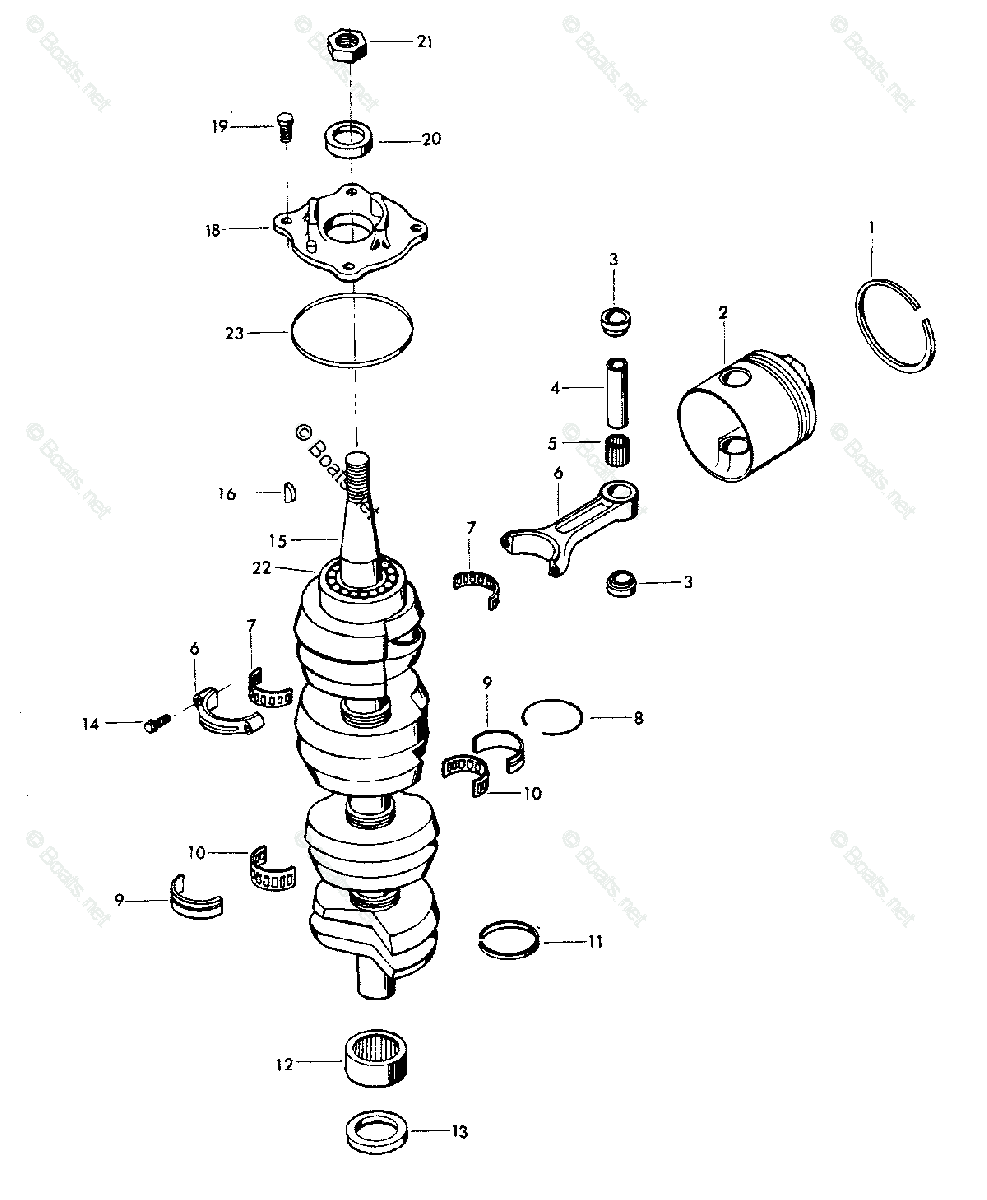

Chrysler 0T1150B9A - 1979 CRANKSHAFT AND PISTON GROUP Diagram

Check Availability

# Description Price Qty
- PISTON RING (2 PER SET) .010 OVERSIZE (NOT SHOWN)
FSA475260 		Unavailable
- PISTON RING (2 PER SET) .030 OVERSIZE (NOT SHOWN)
818123A-1 		Unavailable
- PISTON .010 OVERSIZE (NOT SHOWN)
819409A-3 		Unavailable
- PISTON .030 OVERSIZE (NOT SHOWN)
819409A-4 		Unavailable
1 PISTON RING SET - STANDARD (2 PER SET)
FA475260 		Unavailable
2 PISTON - STANDARD
F511015-2 		Unavailable
3 SPACER, PISTON PIN (2 PER PISTON)
F335215 		Unavailable
4 PISTON PIN
F85017 		Unavailable
5 BEARING, PISTON PIN (26 PER SET)
F335217-1 		Unavailable
6 CONNECTING ROD W/CAP AND SCREWS
818052A-4 		Unavailable
7 BEARING CAPE W/ROLLER
FK85228-1 		Unavailable
8 SNAP RING
F85410 		Unavailable
9 CRANKSHAFT MAIN BEARING RACE W/SNAP RING
FA85655-1
In Stock
$108.92
$106.37
Add
10 BEARING CAGE W/ROLLER
F85571 		Unavailable
11 SEAL, CRANKCASE
F316579
Ships in 2 to 3 days
$17.40
$16.18
Add
12 CRANKSHAFT LOWER MAIN BEARING
FA523014 		Unavailable
13 SEAL, CRANKSHAFT LOWER
F523146
Ships in 2 to 3 days
$22.92
$21.32
Add
14 CONNECTING ROD SCREW
F85634-2
In Stock
$7.60
$7.42
Add
15 CRANKSHAFT W/BEARING
817735A-4 		Unavailable
16 FLYWHEEL KEY
F85498
Ships in 2 to 3 days
$11.60
$10.79
Add
18 CRANKSHAFT BEARING CAGE W/SEAL
817785A-2 		Unavailable
19 HEX CAP SCREW, 3/8 - 16 X 1
F1867
Ships in 2 to 3 days
$2.50
$2.33
Add
20 SEAL
F84146-2
Ships in 2 to 3 days
$22.92
$21.32
Add
21 FLYWHEEL NUT
F1968
Ships in 2 to 3 days
$18.90
$17.58
Add
22 BEARING, CRANKSHAFT UPPER MAIN
F284659-2
Ships in 2 to 3 days
$102.67
$95.48
Add
23 SEAL
F84278
Ships in 2 to 3 days
$2.70
$2.51
Add
