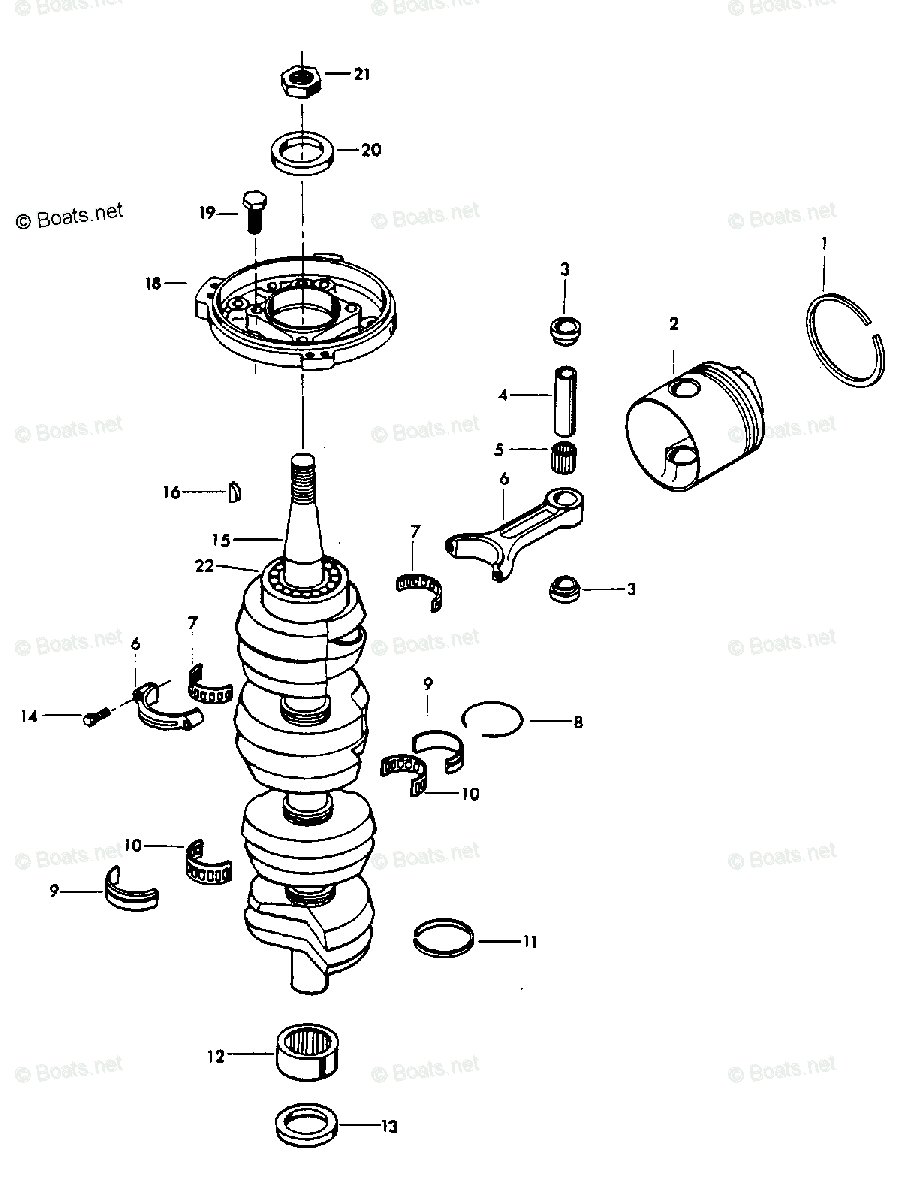

Chrysler 1209HD - 1976 CRANKSHAFT AND PISTON GROUP Diagram

Check Availability

# Description Price Qty
PISTON .030 OVERSIZE (NOT SHOWN)
3SA475015 		Unavailable
PLASTISOL CAP (NOT SHOWN)
F2067 		Unavailable
PISTON RING SET FOR 2 PISTONS .010 OVERSIZE (NOT SHOWN)
FSA474260 		Unavailable
PISTON .010 OVERSIZE (NOT SHOWN)
FSA440015 		Unavailable
PISTON RING (4 PER SET) .010 OVERSIZE (NOT SHOWN)
FS440260 		Unavailable
PISTON .010 OVERSIZE (NOT SHOWN)
SA475015 		Unavailable
PISTON RING SET FOR 2 PISTONS .030 OVERSIZE (NOT SHOWN)
818122A-1 		Unavailable
PISTON RING (4 PER SET) .030 OVERSIZE (NOT SHOWN)
818117A-1 		Unavailable
PISTON .030 OVERSIZE (NOT SHOWN)
818116A-2 		Unavailable
1 PISTON RING SET (4 PER SET)
FA440260 		Unavailable
1 PISTON RING SET FOR 2 PISTONS
FA474260 		Unavailable
2 PISTON
F440015-1 		Unavailable
2 PISTON
F475015-2 		Unavailable
3 SPACER, PISTON PIN (2 PER PISTON)
F335215 		Unavailable
4 PISTON PIN
F85017 		Unavailable
5 BEARING, PISTON PIN (26 PER SET)
F335217-1 		Unavailable
6 CONNECTING ROD W/CAP AND SCREWS
818052A-4 		Unavailable
7 BEARING CAGE W/ROLLER
FK85228 		Unavailable
8 SNAP RING
F85410 		Unavailable
9 CRANKSHAFT MAIN BEARING RACE W/SNAP RING
FA85655-1
In Stock
$108.92
$106.37
Add
10 BEARING CAGE W/ROLLER
F85571 		Unavailable
11 SEAL, CRANKCASE
F316579
Ships in 2 to 3 days
$17.40
$16.18
Add
12 CRANKSHAFT LOWER MAIN BEARING
FA523014 		Unavailable
13 SEAL
F84146-1 		Unavailable
14 CONNECTING ROD SCREW
F85634-1 		Unavailable
15 CRANKSHAFT W/BEARING
817735A-4 		Unavailable
16 FLYWHEEL KEY
F85498
Ships in 2 to 3 days
$11.60
$10.79
Add
18 CRANKSHAFT BEARING CAGE W/SEAL
FA489144 		Unavailable
19 SLOTTED PAN HD SCREW, 1/4 - 20 X 5/8
F1493 		Unavailable
20 SEAL
F84146-1 		Unavailable
21 FLYWHEEL NUT
F1968
Ships in 2 to 3 days
$18.90
$17.58
Add
22 BEARING, CRANKSHAFT UPPER MAIN
F284659-2
Ships in 2 to 3 days
$102.67
$95.48
Add
