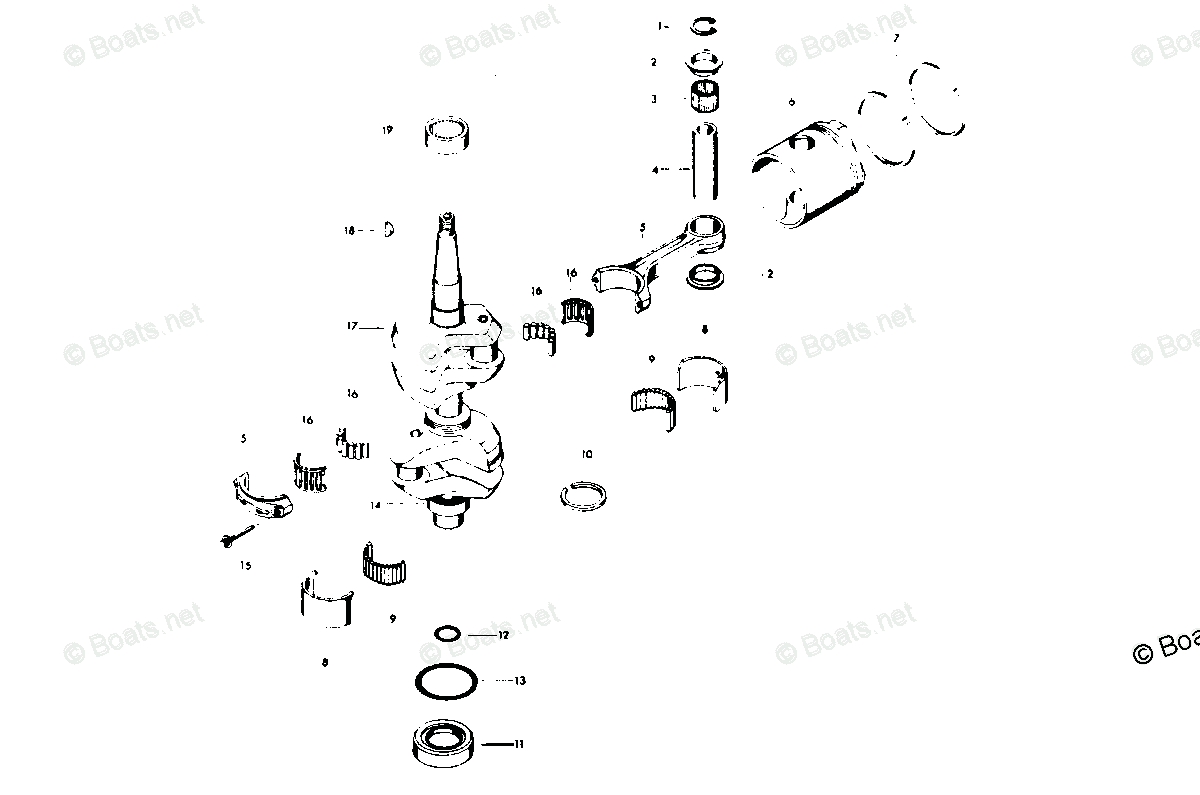

Chrysler Outboard 25HP OEM Parts Diagram for CRANKSHAFT AND PISTON GROUP

#	Description	Price	Qty
	PISTON RINGS (4 PER SET) .010 OVERSIZE (NOT SHOWN) FSA458260	Unavailable
	PISTON .030 OVERSIZE (NOT SHOWN) 818118A-1	Unavailable
	PISTON RINGS (4 PER SET) .030 OVERSIZE (NOT SHOWN) 818119A-1	Unavailable
	PISTON .010 OVERSIZE (NOT SHOWN) FSA458015	Unavailable
	CRANKSHAFT W/LOWER MAIN BEARING FOR ALTERNATOR MODELS FA505018	Unavailable
	FLYWHEEL KEY FOR ALTERNATOR MODELS F85498 Ships in 2 to 3 days	~~$11.60~~ $10.79	Add
1	RETAINER, PISTON PIN F90096	Unavailable
2	SPACER, PISTON PIN F366215	Unavailable
3	BEARING, PISTON PIN F335217	Unavailable
4	PISTON PIN F458017	Unavailable
5	CONNECTING ROD W/CAP AND SCREWS 818052A-4	Unavailable
6	PISTON F458015-1	Unavailable
7	PISTON RING SET (4 PER SET) FA458260	Unavailable
8	LINER, CENTER MAIN FA458655	Unavailable
9	ROLLER, CENTER MAIN FA458571	Unavailable
10	SEAL, CRANKCASE F458579	Unavailable
11	COLLAR W/LOWER CRANKSHAFT SEAL F2A458581	Unavailable
12	SEAL, DRIVESHAFT SPLINE F461342 In Stock	~~$2.30~~ $2.25	Add
13	SEAL, CRANKSHAFT COLLAR F455305 In Stock	~~$1.90~~ $1.86	Add
14	CRANKSHAFT LOWER MAIN BEARING F286028-1	Unavailable
15	SCREW, CONNECTING ROD F85634-1	Unavailable
16	BEARING CAGE W/ROLLERS (16 PER SET) FK85228	Unavailable
17	CRANKSHAFT W/LOWER MAIN BEARING FOR MAGNETO MODELS FA461018	Unavailable
18	FLYWHEEL KEY FOR MAGNETO MODELS F458498	Unavailable
19	BEARING, CRANKSHAFT UPPER MAIN F458028	Unavailable

Chrysler 254HB - 1975 CRANKSHAFT AND PISTON GROUP Diagram
