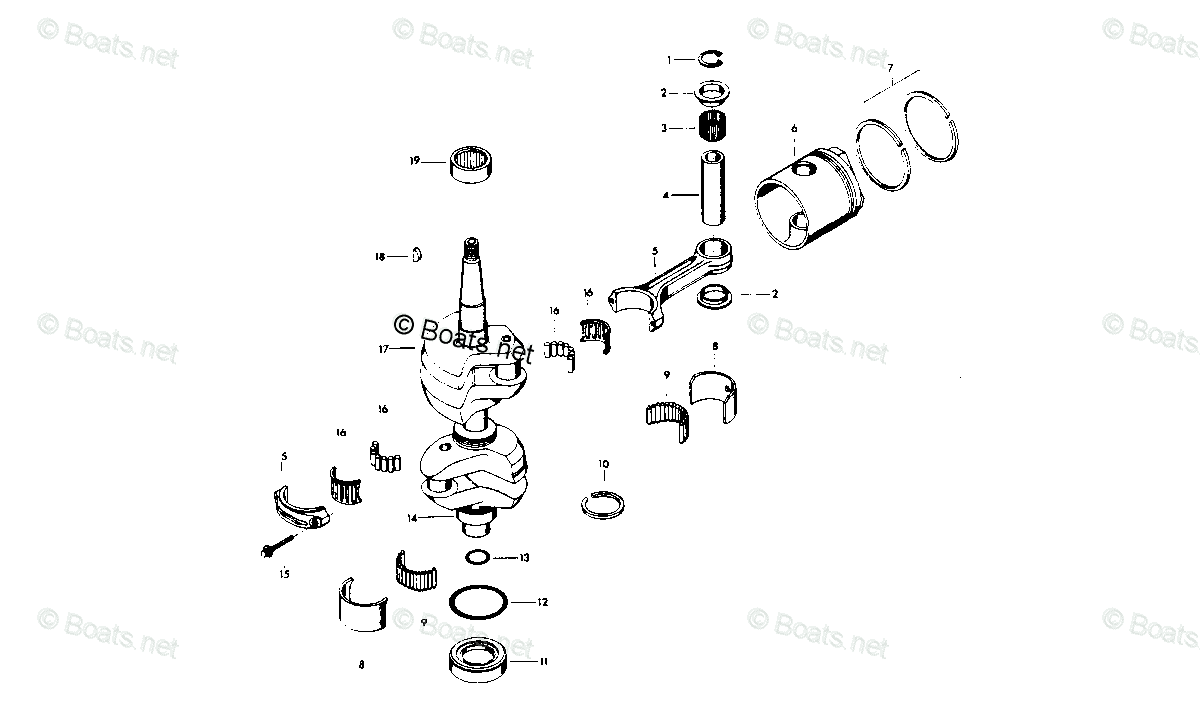

Chrysler 307H1D - 1981 CRANKSHAFT AND PISTON GROUP Diagram
Check Availability
| # | Description | Price | Qty |
|---|---|---|---|
| 1 |
RETAINER, PISTON PIN
F428096 |
Unavailable | |
| 2 |
SPACER, PISTON PIN
F366215 |
Unavailable | |
| 3 |
BEARING, PISTON PIN
F335217-1 |
Unavailable | |
| 4 |
PISTON PIN
F40017-2 |
Unavailable | |
| 5 |
CONNECTING ROD
818052A-4 |
Unavailable | |
| 6 |
PISTON
F513015-1 |
Unavailable | |
| 7 |
PISTON RING SET (4 PER SET)
FA463260 |
Unavailable | |
| 8 |
LINER, CENTER MAIN (1 SET)
FA458655 |
Unavailable | |
| 9 |
ROLLER, CENTER MAIN
FA458571 |
Unavailable | |
| 10 |
SEAL, CRANKCASE
F458579 |
Unavailable | |
| 11 |
COLLAR W/LOWER CRANKSHAFT SEAL
F2A458581 |
Unavailable | |
| 12 |
SEAL, CRANKSHAFT COLLAR
F455305 |
$1.86 |
|
| 13 |
SEAL, CRANKSHAFT SPLINE
F458342 |
Unavailable | |
| 14 |
CRANKSHAFT LOWER MAIN BEARING
F286028 |
Unavailable | |
| 15 |
SCREW, CONNECTING ROD
F85634-2 |
$7.42 |
|
| 16 |
BEARING CAGE W/ROLLERS (16 PER SET)
FK85228-1 |
Unavailable | |
| 17 |
CRANKSHAFT
818061A-1 |
Unavailable | |
| 18 |
FLYWHEEL KEY
F85498 |
$10.79 |
|
| 19 |
BEARING, CRANKSHAFT UPPER MAIN
F458028 |
Unavailable |
