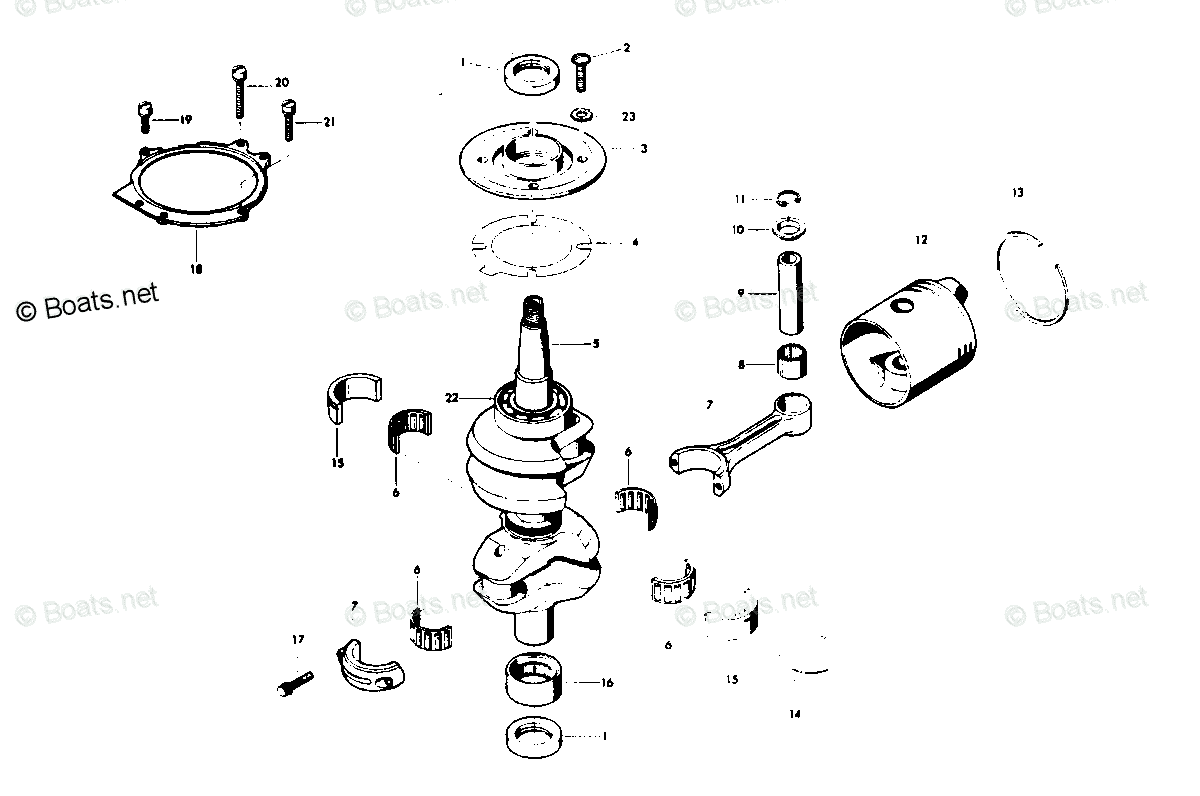

Chrysler 352HG - 1975 CRANKSHAFT AND PISTON GROUP Diagram

Check Availability

# Description Price Qty
PISTON .030 OVERSIZE (NOT SHOWN) 35 H.P.
3SA377015 		Unavailable
PISTON RINGS (6 PER SET) .010 OVERSIZE (NOT SHOWN) 35 H.P.
FS307260 		Unavailable
PISTON .010 OVERSIZE (NOT SHOWN) 45 H.P.
FSA486015 		Unavailable
PISTON RINGS (6 PER SET) .010 OVERSIZE (NOT SHOWN) 45 H.P.
FS310260 		Unavailable
PISTON .010 OVERSIZE (NOT SHOWN) 35 H.P.
SA377015 		Unavailable
PISTON RINGS (6 PER SET) .030 OVERSIZE (NOT SHOWN) 35 H.P.
818112A-1 		Unavailable
PISTON RINGS (6 PER SET) .030 OVERSIZE (NOT SHOWN) 45 H.P.
818113A-1 		Unavailable
PISTON .030 OVERSIZE (NOT SHOWN) 45 H.P.
818124A-1 		Unavailable
1 CRANKSHAFT SEAL
F40146-1
In Stock
$18.92
$18.48
Add
2 PAN HD SCREW, 1/4 - 20 X 7/8
F1441 		Unavailable
3 CRANKSHAFT BEARING CAGE W/SEAL
FA433144 		Unavailable
4 BEARING CAGE GASKET
F366277 		Unavailable
5 CRANKSHAFT W/BEARING 35 H.P.
FA485018 		Unavailable
5 CRANKSHAFT W/BEARING 45 H.P.
FA545018 		Unavailable
6 BEARING CAGE W/ ROLLERS (16 PER SET)
FK85228 		Unavailable
7 CONNECTING ROD W/CAP & SCREWS
818052A-4 		Unavailable
8 BEARING
F335217-1 		Unavailable
9 PISTON PIN
F40017-2 		Unavailable
10 SPACER
F366215 		Unavailable
11 RETAINER, PISTON PIN
F428096 		Unavailable
12 PISTON 45 H.P.
F486015 		Unavailable
12 PISTON 35 H.P.
F377015-1 		Unavailable
13 PISTON RING SET (6 PER SET) 45 H.P.
FA354260 		Unavailable
13 PISTON RING SET (6 PER SET) 35 H.P.
FA353260 		Unavailable
14 SNAP RING
F40410 		Unavailable
15 CRANKSHAFT CENTER MAIN BEARING RACE W/ SNAP RING
FA40655 		Unavailable
16 CRANKSHAFT LOWER MAIN BEARING
F90014 		Unavailable
17 CONNECTING ROD SCREW
F85634-1 		Unavailable
18 MAGNETO STATOR RING
F366082 		Unavailable
19 FILL HD SCREW W/LOCKWASHER, 10 - 24 X 3/4
F1080 		Unavailable
20 FILL HD SCREW W/LOCKWASHER, 10 - 24 X 1 9/16
F1812 		Unavailable
21 FILL HD SCREW W/LOCKWASHER, 10 - 24 X 1 1/8
F1813 		Unavailable
22 CRANKSHAFT THRUST BEARING UPPER
F366013 		Unavailable
23 EXTERNAL TOOTH LOCKWASHER (USE WITH PAN HD SCREW)
F8060 		Unavailable
