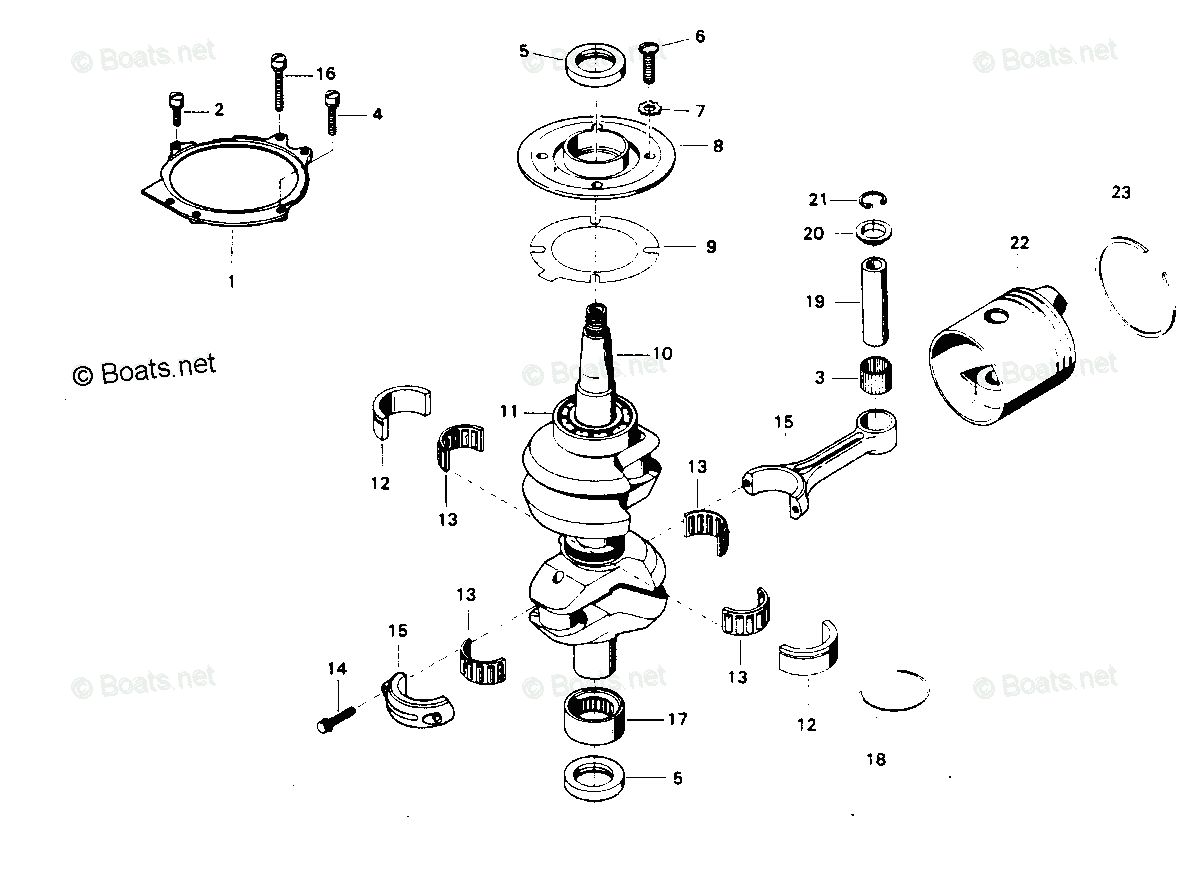

Chrysler Outboard 35HP OEM Parts Diagram for CRANKSHAFT AND PISTON GROUP

#	Description	Price	Qty
-	PISTON .030 OVERSIZE 3S-A37701	Unavailable
-	PISTON RINGS (6 PER SET) .010 OVERSIZE FS307260	Unavailable
-	PISTON RINGS (6 PER SET) .030 OVERSIZE 818112A-1	Unavailable
1	MAGNETO STATOR RING F366082	Unavailable
2	FILL HD SCREW W/LOCKWASHER, 10 - 24 X 3/4 F1080	Unavailable
3	BEARING F335217-1	Unavailable
4	FILL HD SCREW W/LOCKWASHER, 10 - 24 X 1-1/8 F1813	Unavailable
5	CRANKSHAFT SEAL F40146-1 In Stock	~~$18.92~~ $18.48	Add
6	PAN HD SCREW, 1/4 - 20 X 7/8 F1441	Unavailable
7	EXTERNAL TOOTH LOCKWASHER (USE WITH PAN HD SCREW) F8060	Unavailable
8	CRANKSHAFT BRG. CAGE FA433144	Unavailable
9	BEARING CAGE GASKET F366277	Unavailable
10	CRANKSHAFT FA485018	Unavailable
11	CRANKSHAFT THRUST BEARING UPPER F366013	Unavailable
12	CRANKSHAFT CENTER MAIN BEARING RACE FA40655	Unavailable
13	BEARING CAGE W/ROLLERS (16 PER SET) FK85228-1	Unavailable
14	CONNECTING ROD SCREW F85634-2 In Stock	~~$7.60~~ $7.42	Add
15	CONNECTING ROD 818052A-4	Unavailable
16	FILL HD SCREW W/LOCKWASHER, 10 - 24 X 1-9/16 F1812	Unavailable
17	CRANKSHAFT LOWER MAIN BEARING F90014	Unavailable
18	SNAP RING F40410	Unavailable
19	PISTON PIN F40017-2	Unavailable
20	SPACER F366215	Unavailable
21	RETAINER, PISTON PIN F428096	Unavailable
22	PISTON (STANDARD) F377015-1	Unavailable
23	PISTON RING SET (6 PER SET) (STANDARD) FA353260	Unavailable

Chrysler 353H2P - 1982 CRANKSHAFT AND PISTON GROUP Diagram
