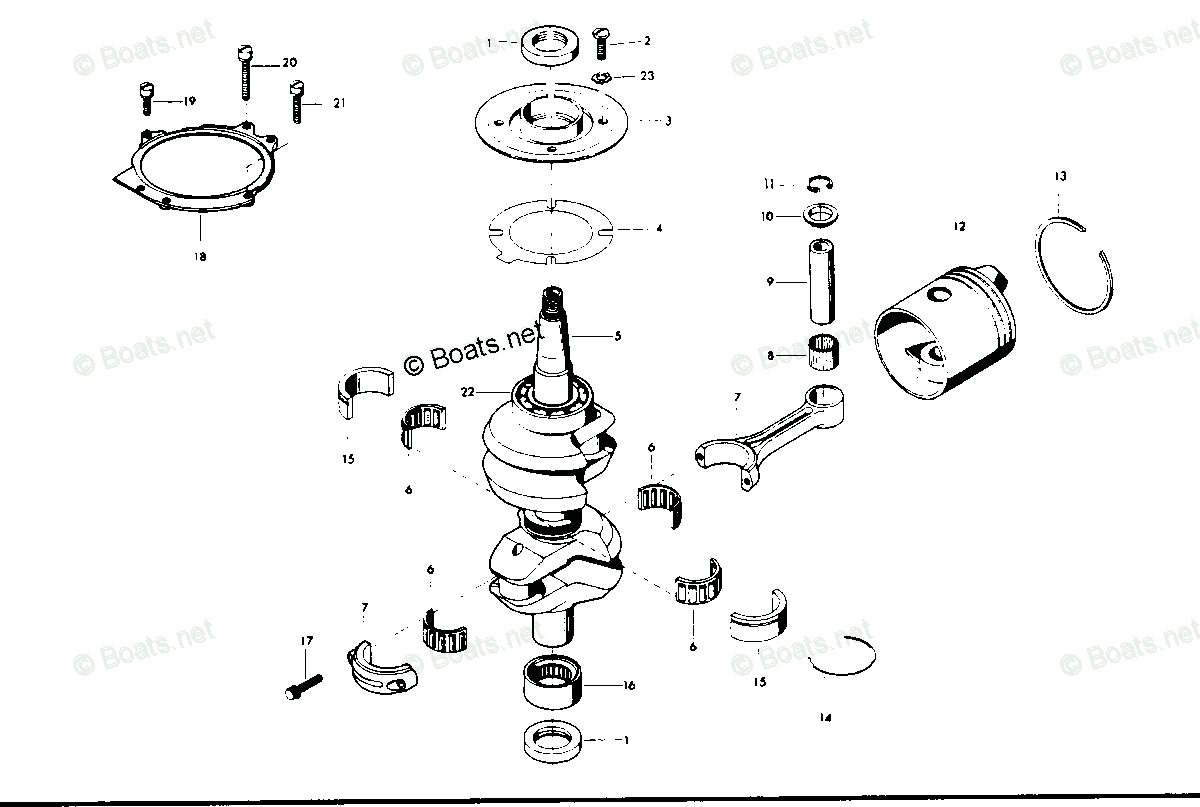

Chrysler 556HG - 1974 CRANKSHAFT AND PISTON GROUP Diagram

Check Availability

# Description Price Qty
0 PISTON .010 OVERSIZE (NOT SHOWN)
817990A-2 		Unavailable
0 CRANKSHAFT BEARING CAGE W/SEAL FOR ALTERNATOR MODELS
FA466144 		Unavailable
0 PISTON RINGS (4 PER SET) .010 OVERSIZE (NOT SHOWN)
FS435260 		Unavailable
0 PISTON RINGS (4 PER SET) .030 OVERSIZE (NOT SHOWN)
818115A-1 		Unavailable
0 PISTON .030 OVERSIZE (NOT SHOWN)
818114A-2 		Unavailable
1 CRANKSHAFT SEAL
F40146-1
In Stock
$18.92
$18.48
Add
2 PAN HD SCREW, 1/4 - 20 X 7/8
F1441 		Unavailable
3 CRANKSHAFT BEARING CAGE W/SEAL FOR MAGNETO IGNITION MODELS
FA433144 		Unavailable
4 BEARING CAGE GASKET
F366277 		Unavailable
5 CRANKSHAFT W/UPPER THRUST BEARING
FA435018 		Unavailable
6 BEARING CAGE W/ROLLERS (16 PER SET)
FK85228 		Unavailable
7 CONNECTING ROD W/CAP AND SCREWS
818052A-4 		Unavailable
8 BEARING
F335217 		Unavailable
9 PISTON PIN
F40017-2 		Unavailable
10 SPACER
F366215 		Unavailable
11 RETAINER, PISTON PIN
F428096 		Unavailable
12 PISTON
F428015-1 		Unavailable
13 PISTON RING SET (4 PER SET)
FA435260 		Unavailable
14 SNAP RING
F40410 		Unavailable
15 CRANKSHAFT CENTER MAIN BEARING RACE W/SNAP RING
FA40655 		Unavailable
16 CRANKSHAFT LOWER MAIN BEARING
F90014 		Unavailable
17 CONNECTING ROD SCREW
F85634-1 		Unavailable
18 MAGNETO STATOR RING
F366082 		Unavailable
19 FILL HD SCREW W/LOCKWASHER, 10 - 24 X 3/4
F1080 		Unavailable
20 FILL HD SCREW W/LOCKWASHER, 10 - 24 X 1 9/16
F1812 		Unavailable
21 FILL HD SCREW W/LOCKWASHER, 10 - 24 X 1 1/8
F1813 		Unavailable
22 CRANKSHAFT THRUST BEARING UPPER
F366013 		Unavailable
23 EXTERNAL TOOTH LOCKWASHER (USE WITH PAN HD SCREW)
F8060 		Unavailable
