Chrysler Outboard 65HP OEM Parts Diagram for CRANKSHAFT AND PISTON GROUP

#	Description	Price	Qty
0	PLASTISOL CAP (NOT SHOWN) F2067	Unavailable
1	SPACER (2 PER PISTON) F335215	Unavailable
2	PISTON PIN F85017	Unavailable
3	BEARING F335217-1	Unavailable
4	PISTON F474015-4	Unavailable
5	PISTON RING SET (4 PER SET) 817820A-1	Unavailable
6	SEAL, CRANKSHAFT F474146 Ships in 2 to 3 days	~~$24.83~~ $23.09	Add
7	SEAL F84278 Ships in 2 to 3 days	~~$2.70~~ $2.51	Add
8	BEARING CAGE LOWER W/SEALS 818060A-1	Unavailable
9	HEX CAP SCREW, 1/4 - 20 X 3/4 F1238 In Stock	~~$1.10~~ $1.07	Add
10	SEAL F474278	Unavailable
11	SNAP RING F85410	Unavailable
12	CRANKSHAFT CENTER MAIN BEARING RACE W/SNAP RING FA85655-1 In Stock	~~$108.92~~ $106.37	Add
13	CENTER MAIN BEARING CAGE W/ROLLERS F85571	Unavailable
14	CONNECTING ROD W/CAP AND SCREWS FA435016	Unavailable
15	BEARING CAGE W/ROLLERS (SPLIT HALF) FA474228	Unavailable
16	CRANKSHAFT LOWER MAIN BEARING F284659-2 Ships in 2 to 3 days	~~$102.67~~ $95.48	Add
17	RETAINING RING F2045	Unavailable
18	CONNECTING ROD SCREW F435634	Unavailable
19	CRANKSHAFT UPPER MAIN BEARING F474013	Unavailable
20	SEAL, CRANKCASE F316579 Ships in 2 to 3 days	~~$17.40~~ $16.18	Add
22	CRANKSHAFT UPPER BEARING CAGE W/SEAL F2A474144	Unavailable
23	HEX CAP SCREW, 1/4 - 20 X 3/4 F1238 In Stock	~~$1.10~~ $1.07	Add
24	FLYWHEEL KEY F85498 Ships in 2 to 3 days	~~$11.60~~ $10.79	Add
25	CRANKSHAFT W/LOWER MAIN BEARING AND RETAINING RING F2A522018	Unavailable

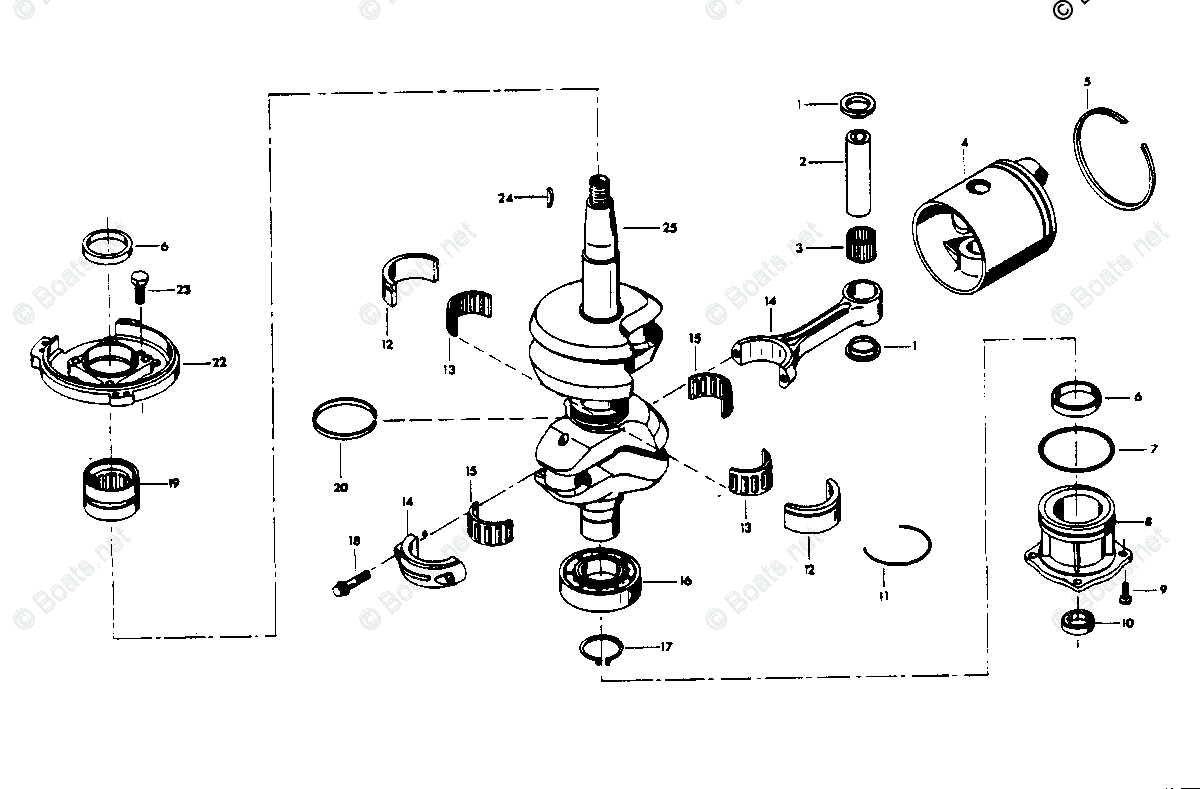

Chrysler 659B8B - 1978 CRANKSHAFT AND PISTON GROUP Diagram
