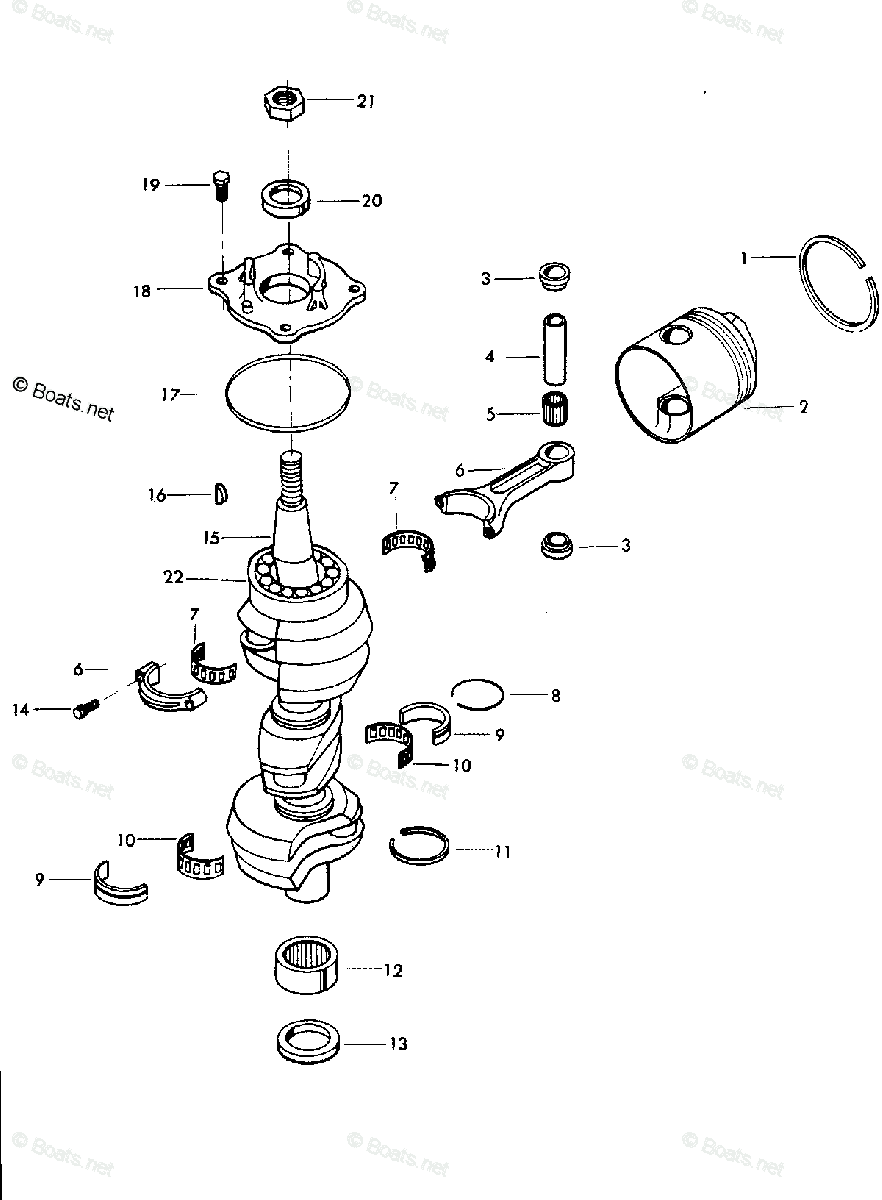

Chrysler 757HC - 1976 CRANKSHAFT AND PISTON GROUP Diagram

Check Availability

# Description Price Qty
PISTON RINGS (3 PER SET) .010 OVERSIZE (NOT SHOWN)
FSA335260 		Unavailable
PISTON .010 OVERSIZE (NOT SHOWN)
817991A-2 		Unavailable
PISTON RINGS (4 PER SET) .010 OVERSIZE (NOT SHOWN)
FS440260 		Unavailable
PISTON RINGS (3 PER SET) .030 OVERSIZE (NOT SHOWN)
818110A-1 		Unavailable
PISTON .030 OVERSIZE (NOT SHOWN)
818111A-2 		Unavailable
PISTON .030 OVERSIZE (NOT SHOWN)
818116A-2 		Unavailable
PISTON RING SET (4 PER SET) .030 OVERSIZE (NOT SHOWN)
818117A-1 		Unavailable
PLASTISOL CAP (NOT SHOWN)
F2067 		Unavailable
PISTON .010 OVERSIZE (NOT SHOWN)
817988A-2 		Unavailable
1 PISTON RING SET (4 PER SET)
FA440260 		Unavailable
1 PISTON RING SET (3 PER SET)
FA335260 		Unavailable
2 PISTON
F372015-3 		Unavailable
2 PISTON
F440015-2 		Unavailable
3 SPACER, PISTON PIN (2 PER PISTON)
F335215 		Unavailable
4 PISTON PIN
F85017 		Unavailable
5 BEARING PISTON PIN (26 PER SET)
F335217-1 		Unavailable
6 CONNECTING ROD W/CAP AND SCREWS
818052A-4 		Unavailable
7 BEARING CAGE W/ROLLER
FK85228 		Unavailable
8 SNAP RING
F85410 		Unavailable
9 CRANKSHAFT MAIN BEARING RACE W/SNAP RING
FA85655-1
In Stock
$108.92
$106.37
Add
10 BEARING CAGE W/ROLLER
F85571 		Unavailable
11 SEAL, CRANKCASE
F316579
Ships in 2 to 3 days
$17.40
$16.18
Add
12 CRANKSHAFT LOWER MAIN BEARING W/SEAL
FA523014 		Unavailable
13 SEAL
F84146-2
Ships in 2 to 3 days
$22.92
$21.32
Add
14 CONNECTING ROD SCREW
F85634-1 		Unavailable
15 CRANKSHAFT W/BEARING
FA85018-2 		Unavailable
16 FLYWHEEL KEY
F85498
Ships in 2 to 3 days
$11.60
$10.79
Add
17 SEAL, CRANKSHAFT BEARING CAGE
F84278
Ships in 2 to 3 days
$2.70
$2.51
Add
18 CRANKSHAFT BEARING CAGE W/SEAL
817785A-2 		Unavailable
19 HEX CAP SCREW, 3/8 - 16 X 1
F1867
Ships in 2 to 3 days
$2.50
$2.33
Add
20 SEAL
F84146-2
Ships in 2 to 3 days
$22.92
$21.32
Add
21 FLYWHEEL NUT
F1968
Ships in 2 to 3 days
$18.90
$17.58
Add
22 CRANKSHAFT THRUST BEARING UPPER
F284659-2
Ships in 2 to 3 days
$102.67
$95.48
Add
