# Description Price Qty

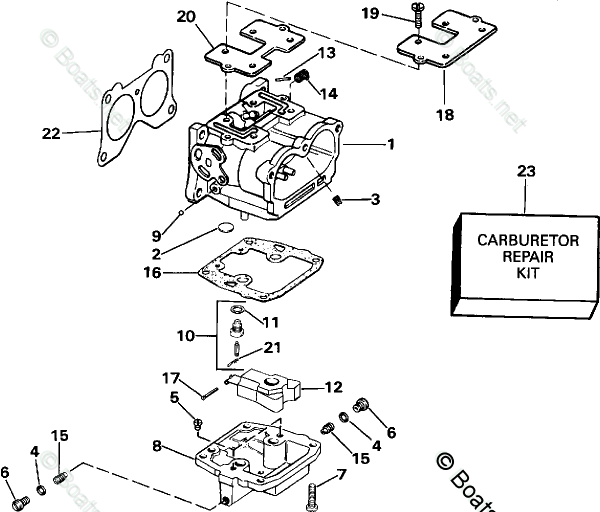

1 CARB. ASSY.
0433808
$150.00
$139.53
2 CORE PLUG
0202310
$7.00
$5.96
3 ORIFICE, Idle air bleed, No. 28
0322936
$16.75
$13.58
4 WASHER, Screw plug
0305739
$2.59
$1.92
5 ORIFICE, No. 31C
0333462
$9.00
$8.37
6 SCREW, Plug
0327116
$18.00
$15.32
7 SCREW, Bowl to body
0333430
$7.69
$6.54
8 FLOAT CHAMBER ASSY.
0398544
$153.25
$130.47
9 LEAD SHOT
0304201
$9.19
$7.45
10 FLOAT VALVE ASSY.
0396520
$10.19
$7.54
11 WASHER
0301996
$4.75
$4.04
12 FLOAT ASSY.
0383437
$20.00
$17.03
13 ROLL PIN, Return spring
0314575
$7.00
$5.68
14 SPRING, Throttle return
0314887
$7.00
$6.84
15 ORIFICE, High speed, No. 58.5C
0324389
$12.50
$12.21
16 GASKET, Float bowl
0333418
$11.19
$8.28
17 PIN, Float
0302661
$9.50
$8.09
18 COVER, Idle passage
0334352
$6.00
$5.58
19 SCREW, Cover
0333750
$7.69
$6.23
20 GASKET, Cover
0334353
$10.19
$7.54
21 CLIP
0603145
$15.75
$13.41
22 GASKET, Carburetor mounting
0327707
$3.09
$2.29
23 CARBURETOR REPAIR KIT
0398526
$30.39
$20.23
