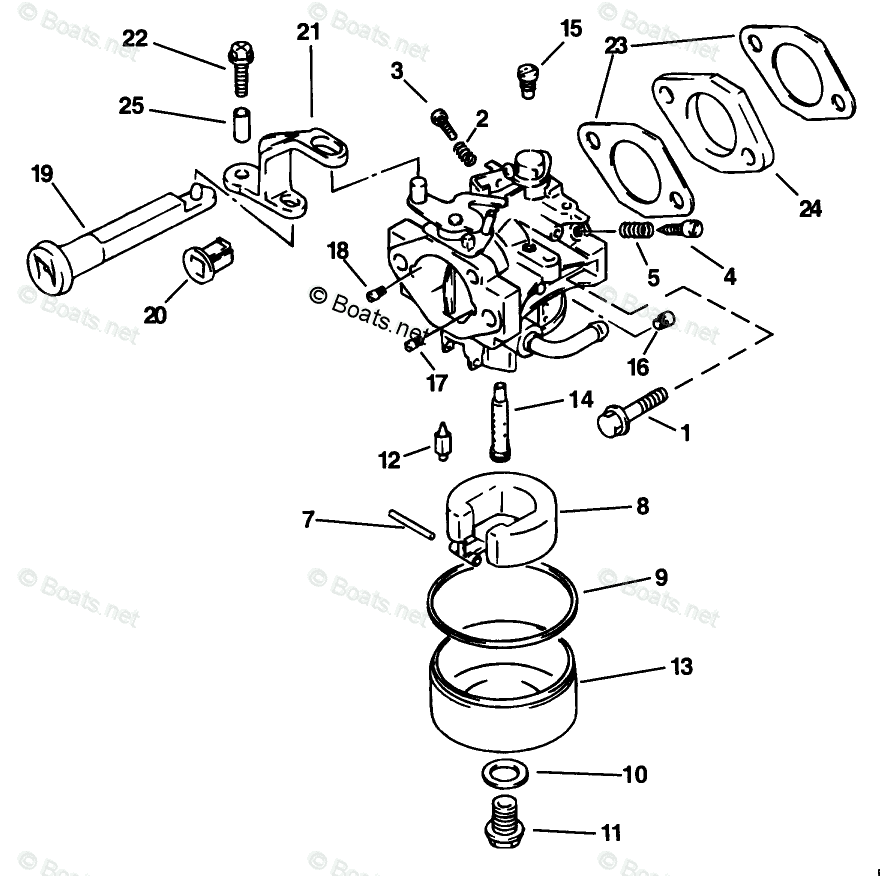

# Description Price Qty
1 BOLT
5031050
Unavailable
2 SPRING
5030169
Unavailable
3 SCREW, Throttle stop
5030174
$5.59
$4.53
4 SCREW, Pilot air
5031034
Unavailable
5 SPRING
5030170
$8.19
$6.64
7 PIN
5030168
$6.69
$5.69
8 FLOAT
5031035
$32.79
$26.58
9 GASKET, Float chamber
5031036
$9.19
$7.45
10 GASKET, Bolt
5031037
$3.59
$3.06
11 BOLT, Drain
5031038
Unavailable
12 NEEDLE ASSY.
5031039
$23.59
$19.12
13 CHAMBER, Float
5031040
Unavailable
14 NOZZLE, Main
5031041
Unavailable
15 JET, Pilot
5031042
$13.19
$10.69
16 JET, Main
5031043
Unavailable
17 JET, Air
5031044
Unavailable
18 JET, Air
5031045
$14.69
$11.91
19 KNOB, Starter
5030177
Unavailable
20 GROMMET, Choke knob
5030178
Unavailable
21 LEVER, Choke
5031053
Unavailable
22 BOLT
5031046
$4.59
$3.72
23 GASKET, Carburetor. Included in Powerhead Gasket Set
5031047
$8.19
$6.97
24 INSULATOR, Carburetor
5031048
$12.29
$9.96
25 SPACER
5031049
Unavailable
5030164 CARBURETOR ASSY.. Not Shown
5030164
$160.89
$136.97
