Evinrude 85493B 1974

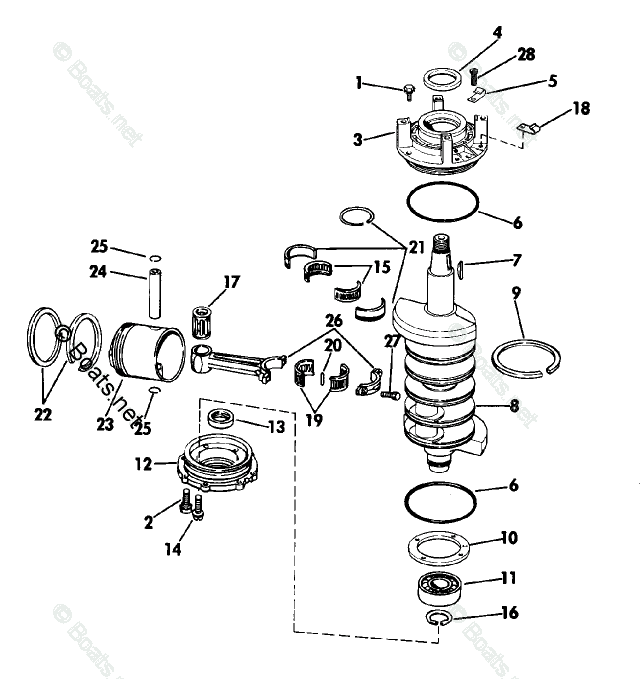

Crankshaft and Piston
Diagram
Catalog
Evinrude
Outboard
85HP
85493B 1974
Crankshaft And Piston
Check Availability
Select your address
#
Description
Price
Qty
1
SCREW, Crankcase head upper
0307028
Ships in 2 to 3 days
$1.50
$1.38
Add
2
SCREW, Crankcase head
0309924
In Stock
$13.99
$6.92
Add
3
CRANKCASE HEAD AND BEARING ASSY.
0385504
Unavailable
4
SEAL, Upper
0318451
Ships in 2 to 3 days
$19.99
$17.99
Add
5
CLAMP, Stator lead crankcase head
0317755
Ships in 2 to 3 days
$3.00
$2.76
Add
6
"O" RING
0305123
In Stock
$5.67
$5.36
Add
7
KEY, Flywheel
0307480
In Stock
$11.49
$10.86
Add
8
CRANKSHAFT ASSY.
0386281
Unavailable
9
SEAL RING, Three stripes. THESE SEAL RINGS ARE GAUGE FITTED, REPLACE ACC TO STRIPE COD
0319197
In Stock
$14.49
$13.69
Add
9
SEAL RING, Two stripes. THESE SEAL RINGS ARE GAUGE FITTED, REPLACE ACC TO STRIPE COD
0319250
In Stock
$14.49
$13.69
Add
9
SEAL RING, One stripe. THESE SEAL RINGS ARE GAUGE FITTED, REPLACE ACC TO STRIPE COD
0319244
In Stock
$14.49
$13.69
Add
10
PLATE, Lower bearing
0317762
Ships in 2 to 3 days
$27.99
$25.75
Add
11
BEARING, Ball
0385503
In Stock
$51.49
$48.66
Add
12
CRANKCASE HEAD ASSY.
0385502
Ships in 2 to 3 days
$104.99
$96.59
Add
13
SEAL
0317761
Ships in 2 to 3 days
$15.49
$14.64
Add
14
SCREW, Plate
0317763
Unavailable
15
RETAINER & NEEDLE SET
0378252
Unavailable
16
RING, Retaining, bearing
0308213
In Stock
$12.99
$12.27
Add
17
BEARING, Wrist pin
0385482
In Stock
$33.99
$32.12
Add
18
CLAMP
0310441
Ships in 2 to 3 days
$4.18
$3.76
Add
19
RETAINER SET
0386534
In Stock
$85.99
$81.26
Add
20
BEARING SET, Conn. rod
0386535
In Stock
$19.99
$10.69
Add
21
SPLIT SLEEVE, Center bearing
0310433
In Stock
$102.99
$97.32
Add
22
RING SET, Std.
0385664
Ships in 2 to 3 days
$55.99
$50.39
Add
22
RING SET, .030 O.S.
0385666
Unavailable
23
PISTON, Std.
0386301
Unavailable
23
PISTON, .030 O.S.
0386331
Unavailable
24
WRIST PIN
0317819
In Stock
$12.99
$6.46
Add
25
RETAINING RING
0317831
In Stock
$5.11
$4.83
Add
26
CONNECTING ROD ASSEMBLY
0385911
Unavailable
27
SCREW, Rod cap
0308186
In Stock
$7.34
$6.94
Add
28
SCREW, Stator clamp
0304512
Unavailable
