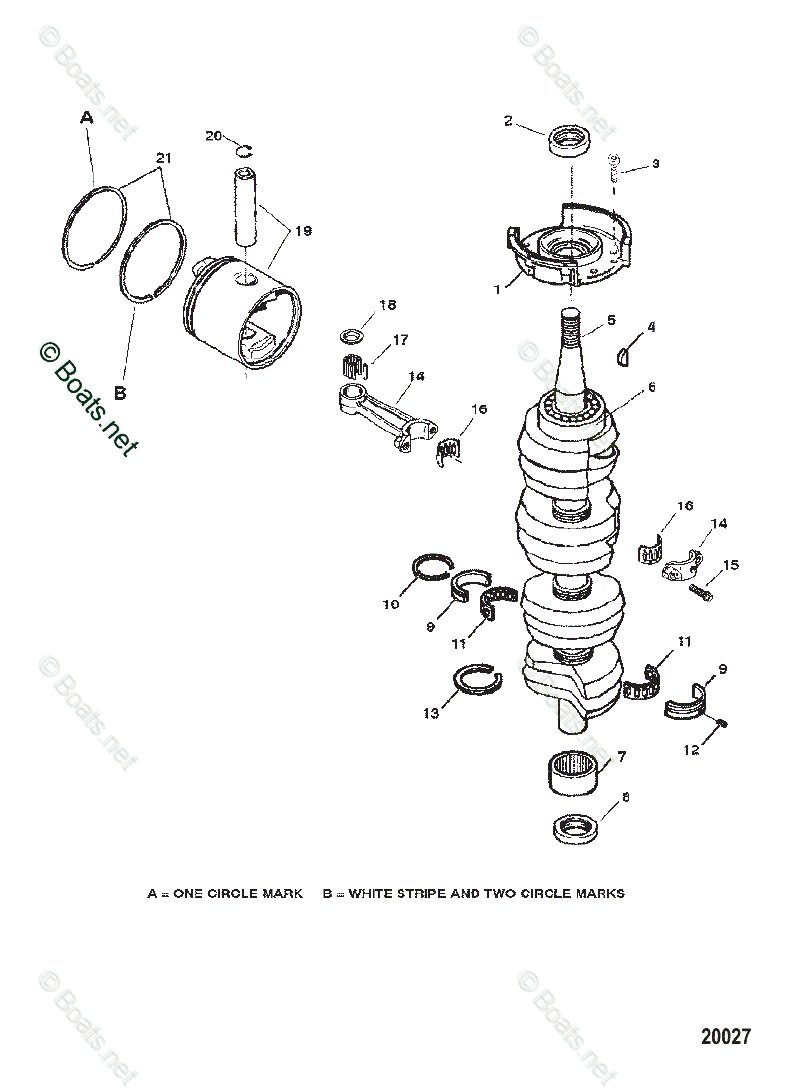

Force 0E203000 THRU 0E287999 1997 Crankshaft And Piston And Conn Rods Diagram

Check Availability

# Description Price Qty
- POWERHEAD ASSEMBLY *{ [0E138600] THRU [0E173408]}*
818154A31 		Unavailable
- GASKET SET Powerhead
809125A2
Ships in 2 to 3 days
$212.92
$198.02
Add
- POWERHEAD ASSEMBLY *{ [0E173409] THRU [0E287999]}*
818154A43 		Unavailable
1 CAGE ASSEMBLY Crankshaft Upper
819312A3 		Unavailable
2   SEAL Crankshaft Upper
828626
Ships in 2 to 3 days
$24.83
$23.09
Add
3 SCREW (.250-20 x .750) Stainless Steel
92160
Ships in 2 to 3 days
$2.70
$2.51
Add
4 KEY Woodruff Crankshaft / Flywheel
91800
In Stock
$2.72
$2.66
Add
5 CRANKSHAFT ASSEMBLY
828306A1 		Unavailable
6   BEARING Ball Upper
F284659-2
Ships in 2 to 3 days
$102.67
$95.48
Add
7 BEARING ASSEMBLY Lower
818050A3
Ships in 2 to 3 days
$256.58
$238.62
Add
8   SEAL Crankshaft Lower *{ (Garter Spring To Be Down And Closed End Of Seal Away From Bearing)}*
828627
Ships in 2 to 3 days
$22.92
$21.32
Add
9 BEARING ASSEMBLY Center Main
FA85655-1
In Stock
$108.92
$106.37
Add
10   RING Snap
F85410 		Unavailable
11 CAGE/ROLLER SET
819193 		Unavailable
12 PIN Locating *{ (Pressed Into Cylinder Assembly)}*
823605 		Unavailable
13 SEAL Crankcase
F316579
Ships in 2 to 3 days
$17.40
$16.18
Add
14 CONNECTING ROD ASSEMBLY
9612A2
Ships in 2 to 3 days
$447.50
$416.18
Add
15   SCREW (.250-28 Special)
91012
In Stock
$7.60
$7.42
Add
16   BEARING KIT Roller
17514A2
In Stock
$67.58
$57.93
Add
17   BEARING Needle
47270
In Stock
$0.40
$0.39
Add
18   WASHER Thrust
812876
In Stock
$5.10
$4.98
Add
19 PISTON KIT *{ (.015 Oversize)}*
828304A3 		Unavailable
19 PISTON KIT *{ (.030 Oversize)}*
828304A4 		Unavailable
19 PISTON KIT *{ (Standard)}*
828304A2 		Unavailable
20   RING Lock
52035
In Stock
$3.30
$3.22
Add
21   RING SET *{ (2 Rings - Standard) (Top Ring Marked With One Circle And Bottom Ring Marked With Two Circles And White Stripe)}*
828565A1
Ships in 2 to 3 days
$62.67
$58.28
Add
21   RING SET *{ (2 Rings - .015 Oversize) (Top Ring Marked With One Circle And Bottom Ring Marked With Two Circles And White Stripe)}*
828565A2
Ships in 2 to 3 days
$56.08
$52.15
Add
21   RING SET *{ (2 Rings - .030 Oversize) (Top Ring Marked With One Circle And Bottom Ring Marked With Two Circles And White Stripe)}*
828565A3 		Unavailable
