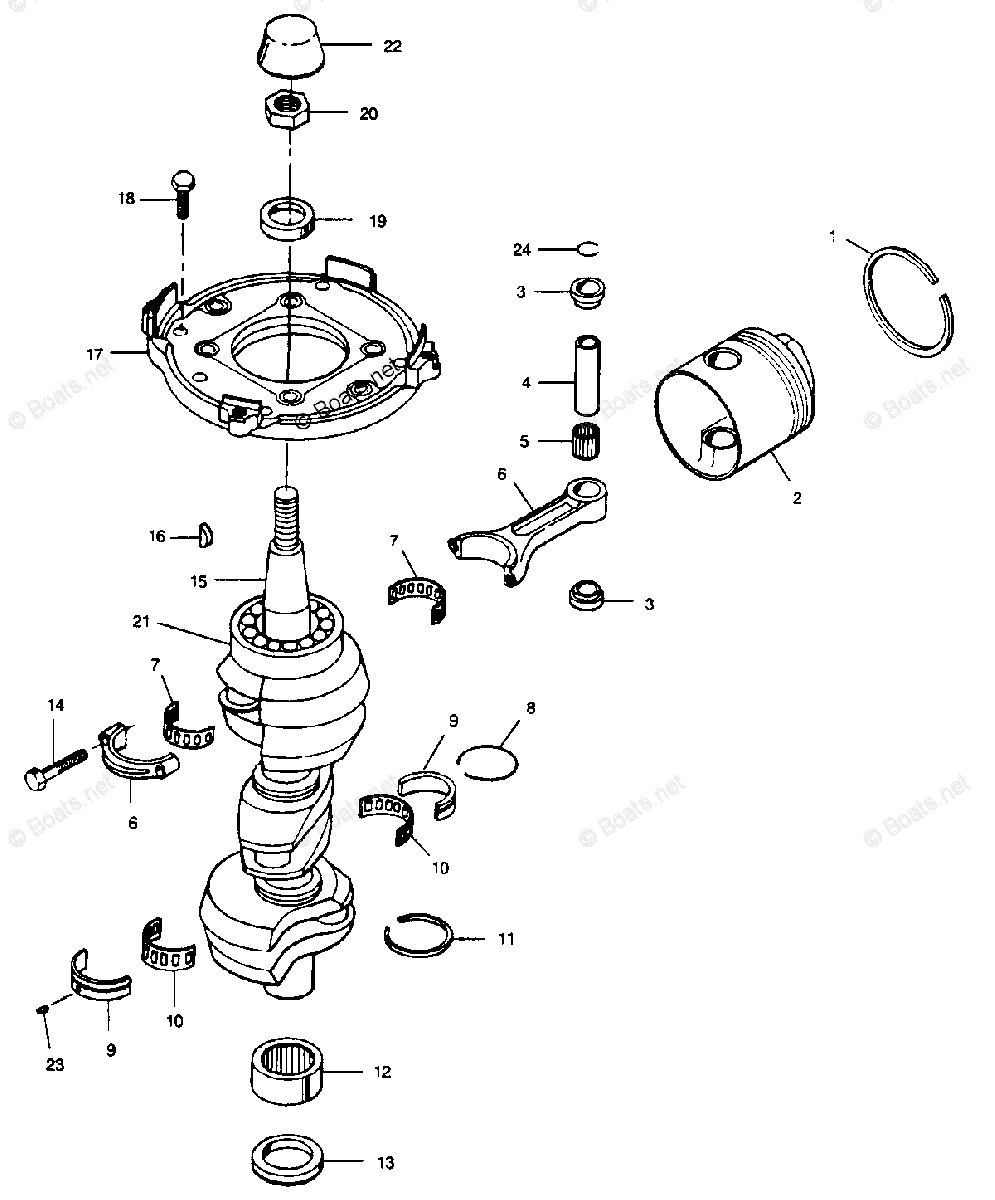

Force 90LD90A 1990 Crankshaft and Piston Diagram

Check Availability

# Description Price Qty
- PISTON .010 OVERSIZE
FSA694015 		Unavailable
- PISTON .030 OVERSIZE
818134A-1 		Unavailable
- PISTON RINGS (2 PER SET) .010 OVERSIZE
FSA663260 		Unavailable
- PISTON RINGS (2 PER SET) .030 OVERSIZE
817869A-3 		Unavailable
1 PISTON RINGS (2 PER SET) STANDARD
817869A-1 		Unavailable
2 PISTON - STANDARD
F694015 		Unavailable
3 SPACER, PISTON PIN (2 PER PISTON)
F366215 		Unavailable
4 PISTON PIN
F694017 		Unavailable
5 BEARING PISTON PIN (26 PER SET)
F335217-1 		Unavailable
6 CONNECTING ROD W/CAP
818052A-4 		Unavailable
7 BEARING CAGE W/ROLLER
FK85228-1 		Unavailable
8 SNAP RING
F85410 		Unavailable
9 CRANKSHAFT MAIN BEARING RACE
FA85655-1
In Stock
$108.92
$106.37
Add
10 BEARING CAGE W/ROLLER
F85571 		Unavailable
11 SEAL, CRANKCASE
F316579
Ships in 2 to 3 days
$17.40
$16.18
Add
12 CRANKSHAFT LOWER MAIN BEARING
818050A-2 		Unavailable
13 SEAL, CRANKSHAFT LOWER
F523146-1
Ships in 2 to 3 days
$22.92
$21.32
Add
14 CONNECTING ROD SCREW
F85634-2
In Stock
$7.60
$7.42
Add
15 CRANKSHAFT
FA695018 		Unavailable
16 FLYWHEEL KEY
F85498-1
Ships in 2 to 3 days
$11.60
$10.79
Add
17 CRANKSHAFT BEARING CAGE
F2A615144 		Unavailable
18 HEX SOC. HD. SCREW, 1/4 - 20 X 3/4
F2081
Ships in 2 to 3 days
$2.70
$2.51
Add
19 SEAL, CRANKSHAFT UPPER
F523146-1
Ships in 2 to 3 days
$22.92
$21.32
Add
20 FLYWHEEL NUT
F1968
Ships in 2 to 3 days
$18.90
$17.58
Add
21 CRANKSHAFT THRUST BEARING, UPPER
F284659-2
Ships in 2 to 3 days
$102.67
$95.48
Add
22 PLASTIC CAP
F2067 		Unavailable
23 BEARING LOCATING PIN (PRESSED INTO BLOCK)
F85909-1 		Unavailable
24 RETAINER, PISTON PIN
F694096 		Unavailable
