Honda Lawn Tractors HT3810K2 SA VIN# HT3810-5200001 TO HT3810-5299999 OEM Parts Diagram for CUTTER HOUSING + BELT COVER (HT3810K2/3813K1)

#	Description	Price	Qty
1	HOUSING, CUTTER \| Use up to Frame SN 5204148. 76110-750-A00	Unavailable
1	HOUSING, CUTTER (NOT AVAILABLE) \| Use from Frame SN 5204149. 76110-750-A01	Unavailable
2	*ADAPTER, DISCHARGE NH190M* (VINTAGE GRAY METALLIC) (NOT AVAILABLE)** 76150-750-A00ZA	Unavailable
3	*COVER, R. BELT NH190M* (VINTAGE GRAY METALLIC)** 76155-750-A00ZA	Unavailable
4	*COVER, L. BELT NH190M* (VINTAGE GRAY METALLIC) (NOT AVAILABLE)** 76156-751-700ZA	Unavailable
5	SEE PART DETAILS - PRI; ROLLER, ANTI-SCALP 76231-751-701 In Stock	~~$20.42~~ $19.94	Add
6	BOLT, SPECIAL (9X15) 90101-963-000 Ships in 2 to 3 days	~~$3.34~~ $3.11	Add
7	SHAFT, ANTI-SCALP ROLLER 90108-751-701 Ships in 2 to 3 days	~~$18.94~~ $17.61	Add
8	NUT, SELF-LOCK (12MM) 90306-750-A00 Ships in 2 to 3 days	~~$2.70~~ $1.96	Add
9	WASHER, THRUST (12MM) 90403-750-A00 Ships in 2 to 3 days	~~$4.82~~ $3.49	Add
10	BOLT-WASHER (8X12) \| Use up to Frame SN 5201547. 93406-08012-08 Ships in 2 to 3 days	~~$1.92~~ $1.79	Add
10	BOLT-WASHER (8X16) \| Use from Frame SN 5201548. 93406-08016-08 Ships in 2 to 3 days	~~$1.98~~ $1.84	Add
11	NUT, FLANGE (8MM) 94050-08080 In Stock	~~$0.94~~ $0.91	Add
12	SEE PART DETAILS - PRI; BOLT, FLANGE (8X14) 95701-08014-08 In Stock	~~$1.84~~ $1.80	Add

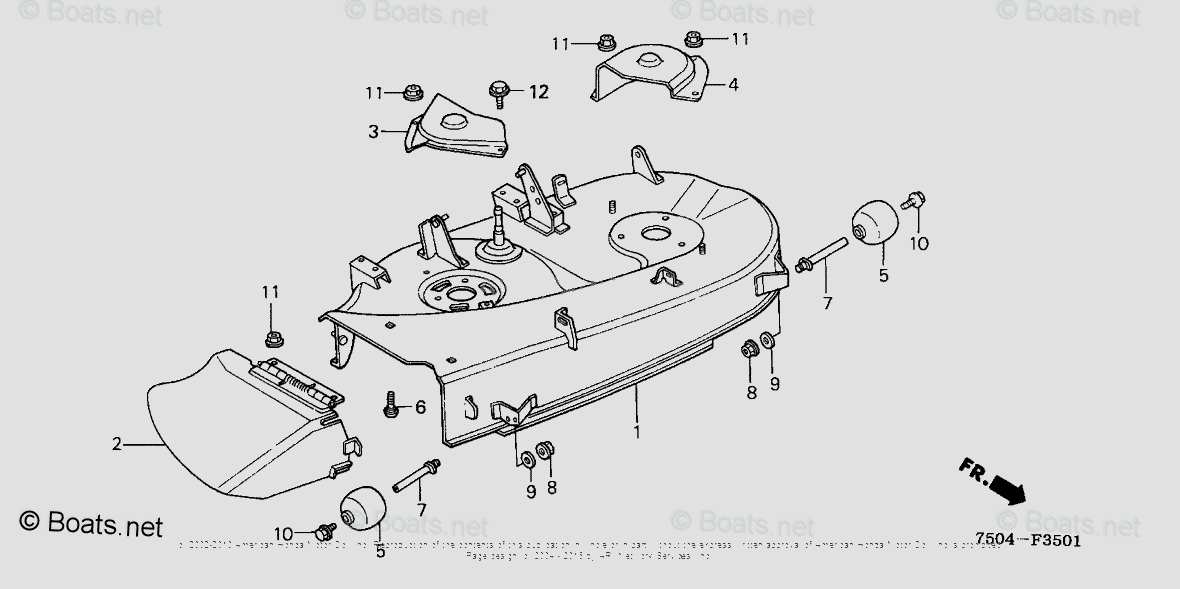

Honda HT3810K2 SA VIN# HT3810-5200001 TO HT3810-5299999 CUTTER HOUSING + BELT COVER (HT3810K2/3813K1) Diagram
