1. Catalog
  2. Johnson
  3. Outboard
  4. 115HP
  5. 115ESL74B 1974

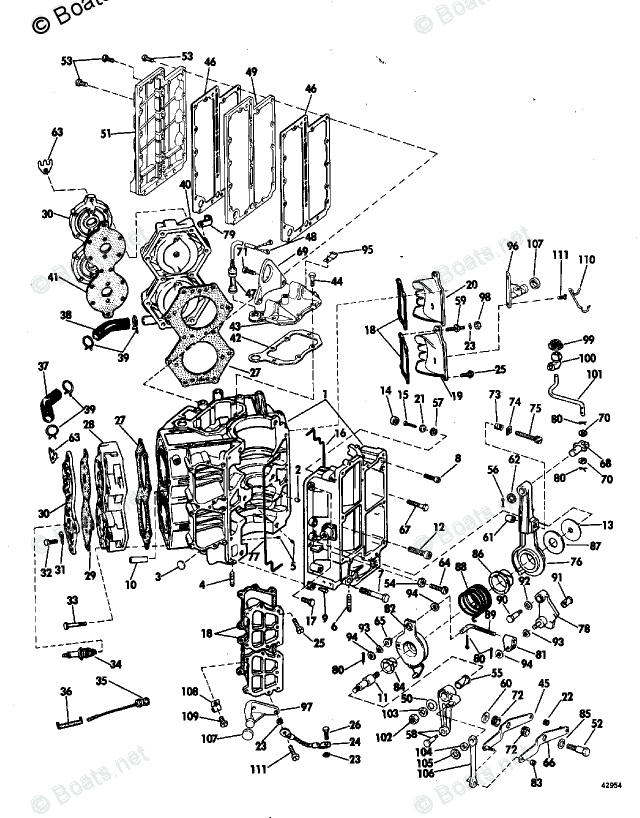

  6. Cylinder And Crankcase

Check Availability

# Description Price Qty
1 CYLINDER AND C'CASE ASSY
0386065 		Unavailable
2 PIN, Dowel bearing
0304178
In Stock
$9.46
$8.94
Add
3 PLUG, Core
0310221
Ships in 2 to 3 days
$3.99
$3.67
Add
4 STUD
0314969
In Stock
$5.99
$5.79
Add
5 PLUG, Oil hole
0310507
Ships in 2 to 3 days
$3.99
$3.67
Add
6 STUD, Cyl. to lower unit
0310872
Ships in 2 to 3 days
$6.99
$6.43
Add
7 SCREW, C'case to cyl., bottom
0308752 		Unavailable
8 SCREW, C'case to cyl., top
0318907
Ships in 2 to 3 days
$7.99
$7.35
Add
9 PIN, Taper
0305070
In Stock
$5.85
$5.53
Add
10 DEFLECTOR, Water passage
0318357 		Unavailable
11 STUD, Throttle lever
0318558
Ships in 2 to 3 days
$39.99
$36.79
Add
12 SCREW, Cyl. to c'case center
0319592
Ships in 2 to 3 days
$13.49
$12.14
Add
13 WASHER, Stud
0318562
Ships in 2 to 3 days
$14.99
$13.79
Add
14 BUMPER, Screw
0314416
Ships in 2 to 3 days
$9.67
$8.70
Add
15 SCREW, Spark adjust
0316286
Ships in 2 to 3 days
$13.99
$12.59
Add
16 SEAL, Cyl. to c'case, port
0314964
Ships in 2 to 3 days
$36.49
$32.84
Add
17 SCREW, Crankcase to cyl
0300646
In Stock
$9.46
$8.94
Add
18 GASKET, By-pass cover
0307133
In Stock
$5.11
$4.83
Add
19 COVER, By-pass
0310532
Ships in 2 to 3 days
$29.99
$27.59
Add
20 COVER, By-pass
0311240
Ships in 2 to 3 days
$19.99
$18.39
Add
21 NUT, Screw, spark adjust
0304753
Ships in 2 to 3 days
$6.41
$5.77
Add
22 BUSHING, Bellcrank and rod
0318590 		Unavailable
23 LOCKWASHER, Ground strap
0303480
In Stock
$1.32
$1.25
Add
24 STRAP, Ground
0376349
Ships in 2 to 3 days
$12.99
$11.95
Add
25 SCREW, By-pass cover
0306049
In Stock
$9.46
$8.94
Add
26 SCREW, Strap to cover
0305284
In Stock
$5.11
$4.83
Add
27 GASKET, Cylinder head
0318358
In Stock
$31.49
$29.76
Add
28 CYLINDER HEAD, Stbd
0317851 		Unavailable
29 GASKET, Cover stbd
0318335
In Stock
$6.23
$5.89
Add
30 COVER, Cylinder head
0318333 		Unavailable
31 CLAMP, Temp. switch lead
0309040
Ships in 2 to 3 days
$14.99
$13.49
Add
32 SCREW, Cyl. head cover
0306409
In Stock
$9.46
$8.94
Add
33 SCREW, Cyl. head
0307267
In Stock
$14.99
$14.16
Add
34 SPARK PLUG, Champion ul-77v. ALTERNATE SPARK PLUGS FOR SPECIAL APPLICATIONS:386143-AC-M4off; 386144 Champion L2G; 386145Champion L77J
0384771
In Stock
$13.49
$12.75
Add
35 SWITCH TEMP
0386686 		Unavailable
36 SLEEVE, Switch lead
0303806
In Stock
$10.99
$10.62
Add
37 HOSE, Cyl. head, stbd
0318388 		Unavailable
38 HOSE, Cyl. head, port
0318387 		Unavailable
39 CLAMP, Cyl. head hose
0305646
In Stock
$1.32
$1.25
Add
40 CYL. HEAD, Port
0317850 		Unavailable
41 GASKET, Cover port
0318334 		Unavailable
42 GASKET, Water pass. cover
0317951
In Stock
$5.11
$4.83
Add
43 COVER, Water passage
0318473 		Unavailable
44 SCREW, Water passage cover
0308742
In Stock
$6.41
$6.06
Add
45 BELLCRANK ASSY
0385833
Ships in 2 to 3 days
$41.99
$38.63
Add
46 GASKET, Exhaust cover
0317914
In Stock
$14.49
$13.69
Add
47 THERMO SWITCH LEAD
0385464
In Stock
$85.99
$83.07
Add
48 RING TERMINALS
0510780
In Stock
$5.00
$4.73
Add
49 COVER, Exh. inner
0317729 		Unavailable
50 SPRING WASHER, Shift lever
0553766
In Stock
$7.79
$7.36
Add
51 COVER, Exhaust outer
0317902 		Unavailable
52 SCREW, Bellcrank to c'case
0318205
Ships in 2 to 3 days
$66.49
$59.84
Add
53 SCREW, Exhaust cover
0309905
Ships in 2 to 3 days
$9.46
$8.51
Add
54 NUT, Throttle stop
0204046
In Stock
$7.79
$7.36
Add
55 BUSHING, Shift lever
0318208 		Unavailable
56 COTTER PIN, Spark advance
0120356 		Unavailable
57 LOCKWASHER
0306396
In Stock
$14.99
$14.16
Add
58 SHIFT LEVER AND STUD ASSY
0385684
Ships in 2 to 3 days
$99.99
$91.99
Add
59 BOLT, Double end
0311328
Ships in 2 to 3 days
$10.99
$10.11
Add
60 WASHER, Bellcrank to case
0318384 		Unavailable
61 CAP
0318660
Ships in 2 to 3 days
$9.46
$8.51
Add
62 WASHER, Return spark advance
0303304
Ships in 2 to 3 days
$9.46
$8.51
Add
63 RETAINER, Cyl. head cover
0313774
Ships in 2 to 3 days
$3.99
$3.67
Add
64 SCREW, Throttle stop
0316602 		Unavailable
65 BUSHING, Link
0314125
Ships in 2 to 3 days
$10.49
$9.44
Add
66 BELLCRANK ASSY
0385683 		Unavailable
67 SCREW, Crankcase to cylinder
0306778 		Unavailable
68 RETAINER, Rod spark adv
0315104
Ships in 2 to 3 days
$20.99
$19.31
Add
69 LIFT BRKT., Cylinder
0318485
Ships in 2 to 3 days
$10.99
$10.11
Add
70 WASHER, Rod, spark advance
0306547
Ships in 2 to 3 days
$3.99
$3.67
Add
71 SCREW, Lift bracket
0314515
Ships in 2 to 3 days
$7.34
$6.61
Add
72 BUSHING, Bellcrank
0318248
In Stock
$19.99
$18.89
Add
73 SPRING, Idle adjust
0308993
Ships in 2 to 3 days
$9.46
$8.51
Add
74 NUT, Idle adjust
0203688
Ships in 2 to 3 days
$7.79
$7.01
Add
75 SCREW, Idle adjust
0302238
Ships in 2 to 3 days
$1.99
$1.83
Add
76 LEVER, Spark advance
0318561
Ships in 2 to 3 days
$22.99
$21.15
Add
77 SEAL, Cyl. to c'case, stbd
0319274 		Unavailable
78 THROTTLE CAM ASSY
0386588 		Unavailable
79 CLAMP
0310928
Ships in 2 to 3 days
$5.99
$5.51
Add
80 COTTER PIN
0305650
In Stock
$1.32
$1.25
Add
81 YOKE, Throttle cam
0310524
Ships in 2 to 3 days
$26.99
$24.83
Add
82 LEVER, Throttle
0318207 		Unavailable
83 NUT, Bellcrank pin
0554427
In Stock
$10.49
$9.91
Add
84 BUSHING
0318559 		Unavailable
85 SPRING WASHER, Rod end
0553766
In Stock
$7.79
$7.36
Add
86 BUSHING, Spark lever
0318560 		Unavailable
87 WASHER, Throttle lever
0314098 		Unavailable
88 SPRING, Throttle lever
0314094
Ships in 2 to 3 days
$22.99
$20.69
Add
89 LINK, Throttle lever
0315107
Ships in 2 to 3 days
$5.99
$5.51
Add
90 SCREW, Throttle cam
0314136
In Stock
$13.99
$13.22
Add
91 BUSHING, Throttle cam
0314137 		Unavailable
92 WAVE WASHER, Throttle cam
0204445
In Stock
$17.99
$17.38
Add
93 SPRING WASHER
0204757
Ships in 2 to 3 days
$9.46
$8.51
Add
94 WASHER, Link
0302474
Ships in 2 to 3 days
$8.56
$7.70
Add
95 CLAMP, Thermo switch leads
0310441
Ships in 2 to 3 days
$4.18
$3.76
Add
96 SUPPORT BRACE, Port
0319217
Ships in 2 to 3 days
$18.99
$17.47
Add
97 SUPPORT BRACE, Stbd
0319218
Ships in 2 to 3 days
$24.99
$22.99
Add
98 NUT, Lower by-pass cover
0301472
In Stock
$5.29
$5.00
Add
99 SOCKET, Linkage
0313700
In Stock
$11.49
$10.86
Add
100 BALL, Socket linkage
0313703
In Stock
$11.49
$10.86
Add
101 ROD, Spark advance
0318402 		Unavailable
102 NUT, Shift lever to crankcase
0307160
Ships in 2 to 3 days
$15.99
$14.39
Add
103 WASHER, Nut shift lever
0303884
Ships in 2 to 3 days
$7.79
$7.01
Add
104 WASHER, Shift rod
0306358 		Unavailable
105 SPRING WASHER, Shift rod
0204757
Ships in 2 to 3 days
$9.46
$8.51
Add
106 ROD, Shift lever to bellcrank
0318589 		Unavailable
107 BUMPER, Support brace
0313581
Ships in 2 to 3 days
$11.49
$10.34
Add
108 SPRING CLAMP, Cable to brace
0315197
Ships in 2 to 3 days
$13.99
$12.59
Add
110 CLAMP, Motor cable
0315182
Ships in 2 to 3 days
$30.99
$27.89
Add
111 SCREW, Support bracket to by-pass cover
0308751
In Stock
$9.46
$8.94
Add
0386574 POWERHEAD GASKET SET,( Less cylinder head gas ket). Not Shown
0386574 		Unavailable
