1. Catalog
  2. Johnson
  3. Outboard
  4. 150HP
  5. VJ150SLEIE 1991

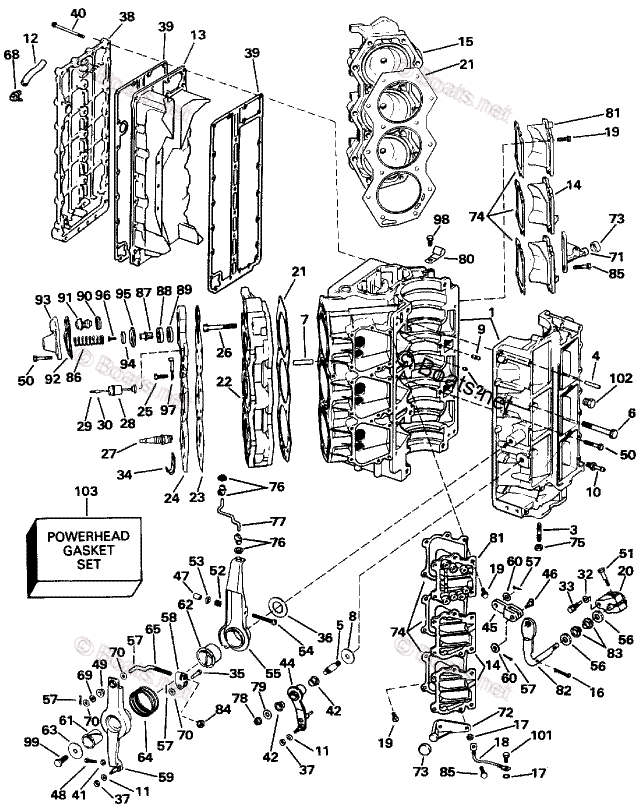

  6. CYLINDER & CRANKCASE

Check Availability

# Description Price Qty
1 CYLINDER & C'CASE ASSY.
0432153 		Unavailable
2 PIN, Dowel bearing
0304178
Ships in 2 to 3 days
$9.01
$8.11
Add
3 STUD
0314616
Ships in 2 to 3 days
$22.99
$20.69
Add
4 PIN, Taper
0305070
Ships in 2 to 3 days
$5.57
$5.01
Add
5 STUD, Shift lever
0320808
Ships in 2 to 3 days
$25.49
$22.94
Add
6 SCREW, Main bearing
0316988 		Unavailable
7 DEFLECTOR, Water passage
0322411
In Stock
$6.77
$6.39
Add
8 WASHER, Stud
0320744
Ships in 2 to 3 days
$4.99
$4.59
Add
9 CHECK VALVE, Drain system
0394884
Ships in 2 to 3 days
$61.99
$55.79
Add
10 FITTING
0303492
Ships in 2 to 3 days
$40.49
$36.44
Add
11 WASHER, Shift & throttle lever
0328737
Ships in 2 to 3 days
$7.42
$6.68
Add
12 HOSE, Elbow to nipple
0327720
Ships in 2 to 3 days
$32.49
$29.24
Add
13 EXH. COVER, Inner
0326308
Ships in 2 to 3 days
$210.99
$189.89
Add
14 COVER, Bypass
0328004
Ships in 2 to 3 days
$33.99
$31.27
Add
15 CYLINDER HEAD, Port
0332544
Ships in 2 to 3 days
$99.00
$91.08
Add
16 COTTER PIN, Shift lever
0330145
Ships in 2 to 3 days
$0.63
$0.57
Add
17 LOCKWASHER, Ground strap
0328701
In Stock
$1.26
$1.19
Add
18 STRAP, Ground
0376349
Ships in 2 to 3 days
$11.99
$11.03
Add
19 SCREW, Bypass cover
0306049
In Stock
$9.01
$8.52
Add
20 LEVER, Shift rod
0326644 		Unavailable
21 GASKET, Cylinder head
0335360
In Stock
$44.99
$42.51
Add
22 CYLINDER HEAD, Stbd.
0332545 		Unavailable
23 GASKET, Cover
0321028
In Stock
$9.95
$9.41
Add
24 COVER, Cylinder head
0320840 		Unavailable
25 SCREW, Cylinder head cover
0300646
In Stock
$9.01
$8.52
Add
26 SCREW, Cylinder head
0307267
In Stock
$13.99
$13.22
Add
27 SPARK PLUG, Champion QL77JCR. Radio Noise Suppression Plug
0387633
In Stock
$5.40
$5.10
Add
27 SPARK PLUG, Champion, L77JCR. Optional
0386941
In Stock
$3.81
$3.60
Add
27 SPARK PLUG, Champion, QL16V. Radio Noise Suppression Plug Optional
0432424
In Stock
$12.49
$11.80
Add
28 TEMPERATURE SWITCH, Stbd
0583789 		Unavailable
28 TEMPERATURE SWITCH, Port
0583441
In Stock
$57.99
$54.80
Add
29 TERMINAL, Bullet
0512947
In Stock
$0.73
$0.69
Add
30 SLEEVE, Bullet
0512948
In Stock
$6.10
$5.76
Add
32 WASHER, Pin
0302290
In Stock
$1.33
$1.26
Add
33 PIN, Shift rod lever
0327590
In Stock
$12.99
$12.27
Add
34 CLAMP, Indicator
0330151
In Stock
$2.92
$2.76
Add
35 PIN, Throttle cam to yoke
0310525
Ships in 2 to 3 days
$13.99
$12.59
Add
36 WASHER, Spark advance lever
0320813
Ships in 2 to 3 days
$2.99
$2.75
Add
37 NUT, Casing guide to throttle arm & shift lever
0328064
In Stock
$9.54
$9.02
Add
38 COVER, Exhaust, outer, 150
0329494 		Unavailable
39 GASKET, Inner cover, 150
0321182
In Stock
$13.49
$12.75
Add
40 SCREW, Exh. manf. to cyl., 1 1/4" (32mm)
0335224
Ships in 2 to 3 days
$4.99
$4.59
Add
41 NUT, Throttle stop
0328712
Ships in 2 to 3 days
$7.42
$6.68
Add
42 BUSHING, Shift lever
0308532
In Stock
$11.99
$11.33
Add
44 SHIFT ARM ASSY.
0395483
Ships in 2 to 3 days
$88.99
$81.87
Add
45 LINK. Shift arm
0324363 		Unavailable
46 PIN, Shift arm link
0324364
Ships in 2 to 3 days
$41.49
$37.34
Add
47 CAP
0318660
Ships in 2 to 3 days
$9.01
$8.11
Add
48 SCREW, Throttle stop
0328693 		Unavailable
49 BUSHING, Link
0314125
Ships in 2 to 3 days
$9.54
$8.59
Add
50 SCREW
0306778
In Stock
$8.68
$8.68
Add
51 SCREW, Lever shift rod
0328695
Ships in 2 to 3 days
$9.01
$8.11
Add
52 SPRING, Idle adjust
0308993
In Stock
$9.01
$8.52
Add
53 NUT, Idle adjust
0203688
In Stock
$7.42
$7.01
Add
54 SCREW, Idle adjust
0328699
Ships in 2 to 3 days
$12.49
$11.24
Add
55 LEVER, Spark advance
0320836 		Unavailable
56 WASHER, Shift lever
0202026
In Stock
$9.01
$8.52
Add
57 COTTER PIN
0305650
In Stock
$1.26
$1.19
Add
58 YOKE, Throttle cam
0397018
Ships in 2 to 3 days
$22.49
$20.24
Add
59 LEVER, Throttle
0389821
Ships in 2 to 3 days
$58.99
$54.27
Add
60 WASHER, Link, shift arm
0328702
In Stock
$4.23
$4.00
Add
61 BUSHING
0320811 		Unavailable
62 BUSHING, Spark lever
0320812
Ships in 2 to 3 days
$11.99
$11.03
Add
63 WASHER, Throttle lever
0320744
Ships in 2 to 3 days
$4.99
$4.59
Add
64 SPRING, Throttle lever
0321270 		Unavailable
65 ROD, Throttle lever
0330117 		Unavailable
68 ELBOW, Indicator
0321886
In Stock
$4.65
$4.40
Add
69 SPRING WASHER
0328734
Ships in 2 to 3 days
$7.42
$6.68
Add
70 WASHER, Link
0328702
In Stock
$4.23
$4.00
Add
71 SUPPORT BRACKET, Port
0319217
Ships in 2 to 3 days
$18.99
$17.47
Add
72 SUPPORT BRACE, Starboard
0319218
Ships in 2 to 3 days
$24.99
$22.99
Add
73 BUMPER,Support brace
0313581
In Stock
$10.49
$9.91
Add
74 GASKET, Bypass cover
0307133
In Stock
$4.87
$4.60
Add
75 NUT, Powerhead to adapter
0306422
In Stock
$6.10
$5.76
Add
76 BALL & SOCKET, Linkage
0395448
In Stock
$10.49
$9.91
Add
77 ROD, Spark advance
0330116 		Unavailable
78 NUT, Shift lever
0315077
In Stock
$9.01
$8.52
Add
79 WASHER, Nut, shift lever
0330266
In Stock
$9.01
$8.52
Add
80 CLAMP, Stator leads
0310441
Ships in 2 to 3 days
$3.98
$3.58
Add
81 COVER, Bypass, upper
0328005
Ships in 2 to 3 days
$29.99
$27.59
Add
82 SHIFT LEVER
0324362 		Unavailable
83 BUSHING, Shift lever
0331839 		Unavailable
84 NUT, Rod, lever to cam
0313022
In Stock
$9.54
$9.02
Add
85 SCREW, Support bracket to bypass cover
0308751
In Stock
$9.01
$8.52
Add
86 SPRING, Pressure release valve
0317245
In Stock
$6.99
$6.60
Add
87 VALVE, Pressure release
0321027
In Stock
$7.73
$7.31
Add
88 SEAT, Valve
0320880
In Stock
$5.61
$5.30
Add
89 CUP, Valve seat
0321222 		Unavailable
90 GROMMET, Thermostat
0310058
In Stock
$3.81
$3.60
Add
91 THERMOSTAT ASSY
0393659
In Stock
$25.49
$24.09
Add
92 GASKET, Thermostat cover
0321184
In Stock
$3.81
$3.60
Add
93 COVER, Thermostat
0321013 		Unavailable
94 RETAINER, Spring valve
0321220
In Stock
$6.99
$6.60
Add
95 SEAL, Pressure to release valve
0321221
In Stock
$6.88
$6.50
Add
96 SCREW, Seal to valve
0306643
In Stock
$3.81
$3.60
Add
97 RETAINER, Coil leads
0330151
In Stock
$2.92
$2.76
Add
98 SCREW, Clamp
0305284
In Stock
$4.87
$4.60
Add
99 BOLT, Throttle lever retainer
0319590
Ships in 2 to 3 days
$10.49
$9.44
Add
100 SCREW, Ground
0303398 		Unavailable
102 PLUG, Pulse
0332135
Ships in 2 to 3 days
$10.49
$9.44
Add
103 POWERHEAD GASKET SET
0391988
Ships in 2 to 3 days
$173.49
$156.14
Add
