Johnson Outboard 5HP OEM Parts Diagram for Crankshaft and Piston

#	Description	Price	Qty
1	PISTON ASSY 5032488	Unavailable
2	RING SET, Piston 5030152 In Stock	~~$35.49~~ $33.54	Add
3	WRIST PIN, Piston 5030153	Unavailable
4	RETAINER, Wrist pin 5030129	Unavailable
5	BEARING, Wrist pin 5030100	Unavailable
6	CRANKSHAFT ASSY. 5030155	Unavailable
7	*BEARING, Crankshaft 5030098 Ships in 2 to 3 days	~~$30.49~~ $27.44	Add
8	SEAL, Crankshaft, lower. (Included in Powerhead Gasket Set.) 5030110 Ships in 2 to 3 days	~~$11.49~~ $10.34	Add
9	SEAL, Driveshaft, upper. (Included in Powerhead Gasket Set.) 5030109 Ships in 2 to 3 days	~~$9.46~~ $8.51	Add
10	THRUST WASHER, Crankshaft 5030067 In Stock	~~$2.00~~ $2.00	Add
11	SEAL, Crankshaft, upper. (Included in Powerhead Gasket Set.) 5030111 Ships in 2 to 3 days	~~$11.49~~ $10.34	Add
12	PISTON & RING SET, 0.25MM O.S. 5032489 Ships in 2 to 3 days	~~$25.99~~ $23.91	Add
12	PISTON & RING SET, 0.50MM O.S. 5032490	Unavailable

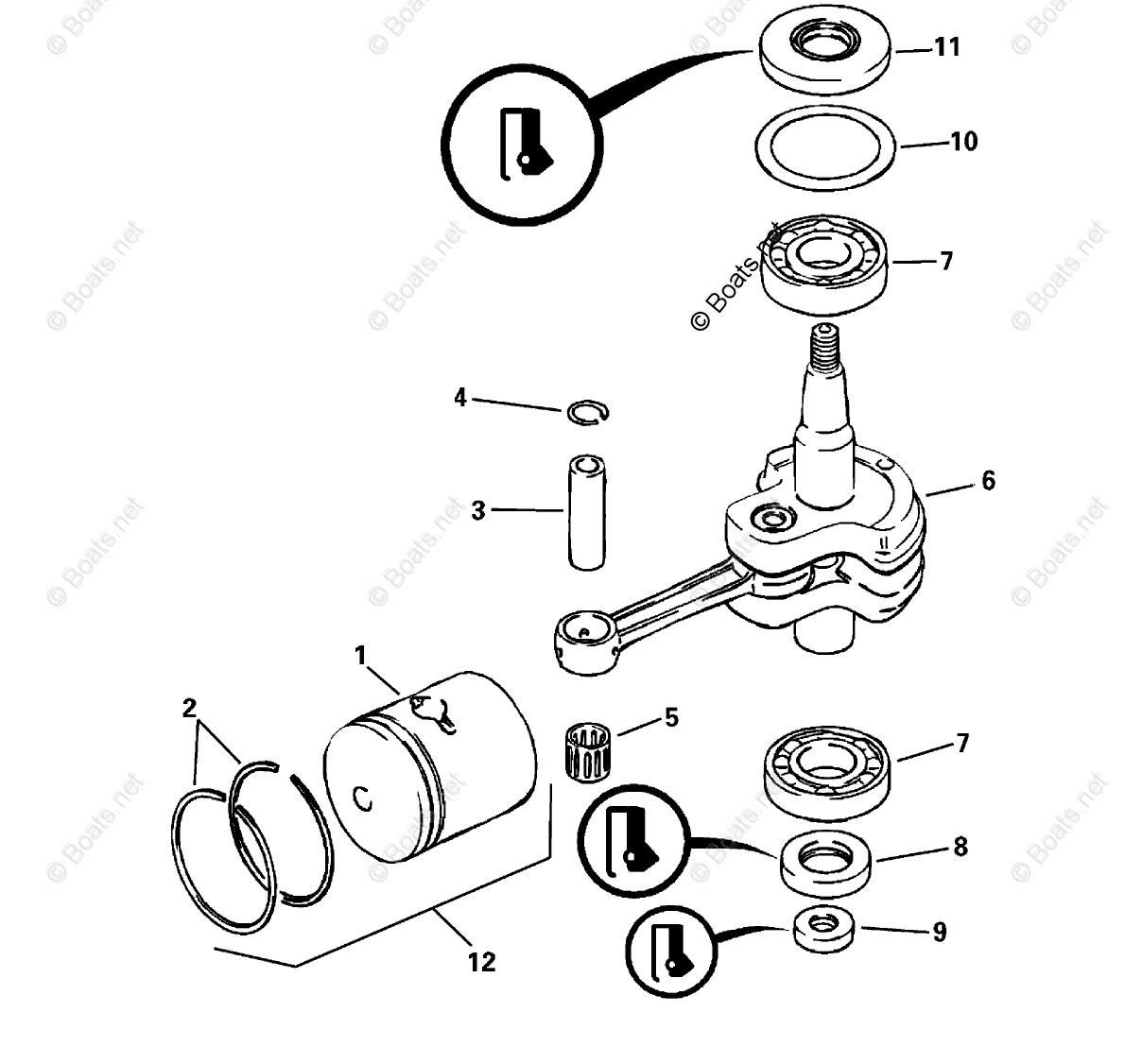

Johnson J5RSIM 2001 Crankshaft and Piston Diagram
