1. Catalog
  2. Johnson
  3. Outboard
  4. 70HP
  5. J70TLERC 1994

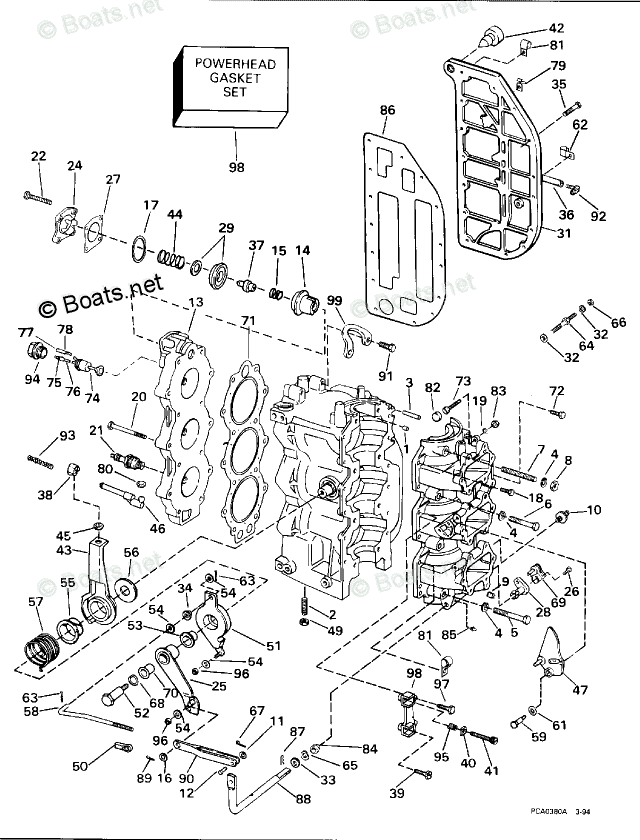

  6. CYLINDER & CRANKCASE

Check Availability

# Description Price Qty
1 DOWEL PIN
0304178
Ships in 2 to 3 days
$9.46
$8.51
Add
2 STUD, Cylinder
0314616
Ships in 2 to 3 days
$24.49
$22.04
Add
3 TAPER PIN
0305070
Ships in 2 to 3 days
$5.85
$5.27
Add
4 WASHER, Crankcase to cylinder
0300343
Ships in 2 to 3 days
$7.23
$6.51
Add
5 SCREW, Lower main bearing
0307776
Ships in 2 to 3 days
$5.99
$5.51
Add
6 SCREW, Crankcase to cylinder
0131794 		Unavailable
7 STUD, Crankcase to cylinder
0313538 		Unavailable
8 LOCKNUT, Crankcase to cylinder
0320372
In Stock
$7.79
$7.36
Add
9 PLUG
0321164
Ships in 2 to 3 days
$16.99
$15.29
Add
10 PULSE LIMITER
0435009
In Stock
$51.99
$49.13
Add
11 WASHER, Pin to yoke
0328702
In Stock
$4.44
$4.20
Add
12 PIN, Yoke to bellcrank
0318197
Ships in 2 to 3 days
$8.90
$8.01
Add
13 CYLINDER HEAD
0339221 		Unavailable
14 HOUSING, Therm
0336178
In Stock
$13.99
$13.22
Add
15 SPRING
0336179
In Stock
$9.01
$8.52
Add
16 WASHER, Link to shift lever
0328708
In Stock
$9.46
$8.94
Add
17 WASHER
0336185
In Stock
$6.41
$6.06
Add
18 SCREW
0306049
In Stock
$9.46
$8.94
Add
19 LOCK WASHER
0302290
In Stock
$1.40
$1.32
Add
20 SCREW, Cylinder head
0322323
In Stock
$19.99
$18.89
Add
21 SPARK PLUG, Champion L77JC4. Optional
0386941
In Stock
$4.00
$3.78
Add
21 SPARK PLUG, Champion QL77JC4. Radio Noise Suppressor Plug
0387633
In Stock
$5.67
$5.36
Add
21 SPARK PLUG, Champion QL16V. Radio Noise Suppressor Plug Optional
0432424
In Stock
$13.49
$12.75
Add
22 SCREW, Thermostat cover
0306049
In Stock
$9.46
$8.94
Add
24 COVER, Thermostat and valves
0339207
In Stock
$23.99
$22.67
Add
25 BELLCRANK, Hub and pin assy.
0393545 		Unavailable
26 SCREW, Shift rod lever
0317581
Ships in 2 to 3 days
$8.56
$7.70
Add
27 GASKET, Thermostat cover
0329830
In Stock
$4.00
$3.78
Add
28 BUSHING & ROD KEEPER
0330935
In Stock
$19.99
$18.89
Add
29 DIAPHRAGM & CUP
0435957
In Stock
$25.49
$24.09
Add
31 COVER, Exhaust manifold
0329834
Ships in 2 to 3 days
$93.99
$84.59
Add
32 WASHER, Ground bolt
0328701
In Stock
$1.32
$1.25
Add
33 WASHER, Shifter lever
0202026
In Stock
$9.46
$8.94
Add
34 BUSHING, Link
0322631 		Unavailable
35 SCREW, Exhaust cover
0308743
In Stock
$7.79
$7.36
Add
36 HOSE, Indicator
0331933
Ships in 2 to 3 days
$11.99
$11.03
Add
37 THERMOSTAT ASSY.
0436195
In Stock
$22.49
$21.25
Add
38 GUIDE, Lever to link
0336456 		Unavailable
39 SCREW, Idle stop
0332012
Ships in 2 to 3 days
$9.46
$8.51
Add
40 NUT, Idle adjustment
0203688
Ships in 2 to 3 days
$7.79
$7.01
Add
41 SCREW, W.O.T. stop
0306337
Ships in 2 to 3 days
$5.99
$5.51
Add
42 BUMPER, Exhaust manifold
0314021
In Stock
$7.79
$7.36
Add
43 LEVER, Spark advance
0319318
Ships in 2 to 3 days
$55.49
$49.94
Add
44 SPRING
0336211
In Stock
$5.29
$5.00
Add
45 BALL & SOCKET, Spark linkage
0395448
In Stock
$11.49
$10.86
Add
46 LINK, Dwell
0336491
In Stock
$7.79
$7.36
Add
47 THROTTLE CAM ASSEMBLY
0434171
Ships in 2 to 3 days
$77.49
$69.74
Add
49 NUT, Powerhead stud
0315204
In Stock
$7.79
$7.36
Add
50 SHELL, Link to cam
0334153
In Stock
$16.49
$15.58
Add
51 LEVER, Throttle
0387800
Ships in 2 to 3 days
$75.99
$68.39
Add
52 SHLDR. SCREW, Throttle lever
0318192
Ships in 2 to 3 days
$19.49
$17.54
Add
53 BUSHING
0314002
In Stock
$7.79
$7.36
Add
54 WASHER, Guides
0328737
Ships in 2 to 3 days
$7.79
$7.01
Add
55 BUSHING, Spark lever
0314003
In Stock
$16.99
$16.05
Add
56 WASHER, Throttle lever
0314098 		Unavailable
57 SPRING, Throttle lever
0314094
Ships in 2 to 3 days
$22.99
$20.69
Add
58 LINK, Throttle lever to cam
0336424 		Unavailable
59 SCREW, Throttle cam
0314136
Ships in 2 to 3 days
$13.99
$12.59
Add
61 WASHER, Throttle cam
0330179
Ships in 2 to 3 days
$9.46
$8.51
Add
62 CLAMP, Fuel filter
0310439
In Stock
$9.46
$8.94
Add
63 COTTER PIN
0303049
Ships in 2 to 3 days
$1.40
$1.26
Add
64 BOLT, Double end
0334109
Ships in 2 to 3 days
$9.46
$8.51
Add
65 BOW WASHER, Shift lever
0306012
In Stock
$9.46
$8.94
Add
66 NUT, Double end bolt
0328740
In Stock
$5.29
$5.00
Add
67 COTTER PIN
0305650
In Stock
$1.32
$1.25
Add
68 BOW WASHER, Shoulder screw
0908060
Ships in 2 to 3 days
$8.99
$8.27
Add
69 LEVER, Shift rod
0395588 		Unavailable
70 BUSHING, Bellcrank
0318193
Ships in 2 to 3 days
$13.99
$12.59
Add
71 GASKET, Cylinder head
0329836
In Stock
$40.49
$38.26
Add
72 SCREW, Bracket to crankcase
0306049
In Stock
$9.46
$8.94
Add
73 SCREW, Spark advance
0328722 		Unavailable
74 TEMPERATURE SWITCH
0584152 		Unavailable
75 TERMINAL, Bullet
0512947
In Stock
$0.77
$0.72
Add
76 SLEEVE, Bullet terminal
0513185
In Stock
$6.41
$6.06
Add
77 SOCKET
0512876
In Stock
$2.99
$2.82
Add
78 SLEEVE, Socket
0513186
In Stock
$7.79
$7.36
Add
79 CLIP, Cable clamp to exh. cvr.
0326365
Ships in 2 to 3 days
$13.99
$12.59
Add
80 SOCKET, Linkage to timer base
0395448
In Stock
$11.49
$10.86
Add
81 CLAMP, Leads
0330151
Ships in 2 to 3 days
$3.07
$2.90
Add
82 BUMPER, Spark advance
0314416
Ships in 2 to 3 days
$9.67
$8.70
Add
83 NUT, Spark advance
0328741
Ships in 2 to 3 days
$6.41
$5.77
Add
84 BUSHING, Shift lever to c'case
0318951 		Unavailable
85 LUBRICATION FITTING
0313607
In Stock
$9.46
$8.94
Add
86 GASKET, Exhaust manifold
0329833
In Stock
$14.99
$14.16
Add
87 RETAINER PIN, Shift lever
0330941
In Stock
$9.46
$8.94
Add
88 SHIFT LEVER
0330940
Ships in 2 to 3 days
$93.99
$84.59
Add
89 COTTER PIN, Link to lever
0306387
Ships in 2 to 3 days
$1.40
$1.26
Add
90 LINK, Bellcrank
0328567 		Unavailable
91 SCREW
0306322
Ships in 2 to 3 days
$4.99
$4.59
Add
92 ELBOW
0321886
In Stock
$4.88
$4.61
Add
93 SPRING, Dwell linkage
0336447
Ships in 2 to 3 days
$20.99
$18.89
Add
94 COVER, Temperature switch
0329562
In Stock
$13.99
$13.22
Add
95 SPRING, Idle adjustment
0308993
Ships in 2 to 3 days
$9.46
$8.51
Add
96 NUT, Guides, remote control
0328064
In Stock
$10.49
$9.91
Add
97 SCREW, Bracket
0308751
In Stock
$9.46
$8.94
Add
98 BRACKET, Idle adjustment
0316664
Ships in 2 to 3 days
$37.49
$33.74
Add
99 LIFT BRACKET
0333962 		Unavailable
100 POWERHEAD GASKET SET
0398047
Ships in 2 to 3 days
$86.99
$78.29
Add
0434104 CYLINDER & CRANKCASE ASSY.. Not Shown Models with "C" or "S" Model Number Suffix
0434104 		Unavailable
0436908 CYLINDER & CRANKCASE ASSY.. Not Shown Models with "V" Model Number Suffix
0436908 		Unavailable
