Mariner Outboard 15HP OEM Parts Diagram for Crankshaft and Piston

#	Description	Price	Qty
1	CRANKSHAFT ASS'Y 6861M	Unavailable
2	BEARING, LOWER 82306M	Unavailable
3	BEARING, UPPER 82303T Ships in 2 to 3 days	~~$60.83~~ $56.57	Add
4	BEARINGS, PISTON PIN 82349M	Unavailable
5	WASHER, PISTON PIN 81823M	Unavailable
6	PISTON (56.96 MM STD) 6760M	Unavailable
6	PISTON (56.98 MM STD) 6761M	Unavailable
6	PISTON (57.25 MM 1ST O.S.) 6762M	Unavailable
6	PISTON (57.50 MM 2ND O.S.) 6763M	Unavailable
6	PISTON (56.97 MM STD) 6947M	Unavailable
7	PIN, PISTON 80272M	Unavailable
8	CLIP, PISTON PIN 82343M Ships in 2 to 3 days	~~$2.20~~ $2.05	Add
9	PISTON RING SET (57.50 MM 2ND O.S.) 80939M	Unavailable
9	PISTON RING SET (STD) 80937T	Unavailable
9	PISTON RING SET (57.25 MM 1ST O.S.) 80938M	Unavailable
10	SHIM, LOWER BEARING (0.2 MM) 80731M	Unavailable
11	OIL SEAL, CRANKSHAFT LOWER 82244M	Unavailable
12	SHIM, UPPER BEARING (0.5 MM) 80730M	Unavailable
12	SHIM, UPPER BEARING (0.4 MM) 80729M	Unavailable
12	SHIM, UPPER BEARING (0.3 MM) 80728M	Unavailable
13	KEY, CRANKSHAFT TO FLYWHEEL 893761 In Stock	~~$8.50~~ $8.31	Add
14	OIL SEAL, CRANKSHAFT-UPPER 82245M	Unavailable
15	HOUSING, OIL SEAL 80745M	Unavailable
16	GASKET, OIL SEAL HOUSING 80206M	Unavailable
17	BOLT, OIL SEAL HOUSING ATTACHING 82423M	Unavailable
18	WASHER, HOUSING BOLT 82214M	Unavailable

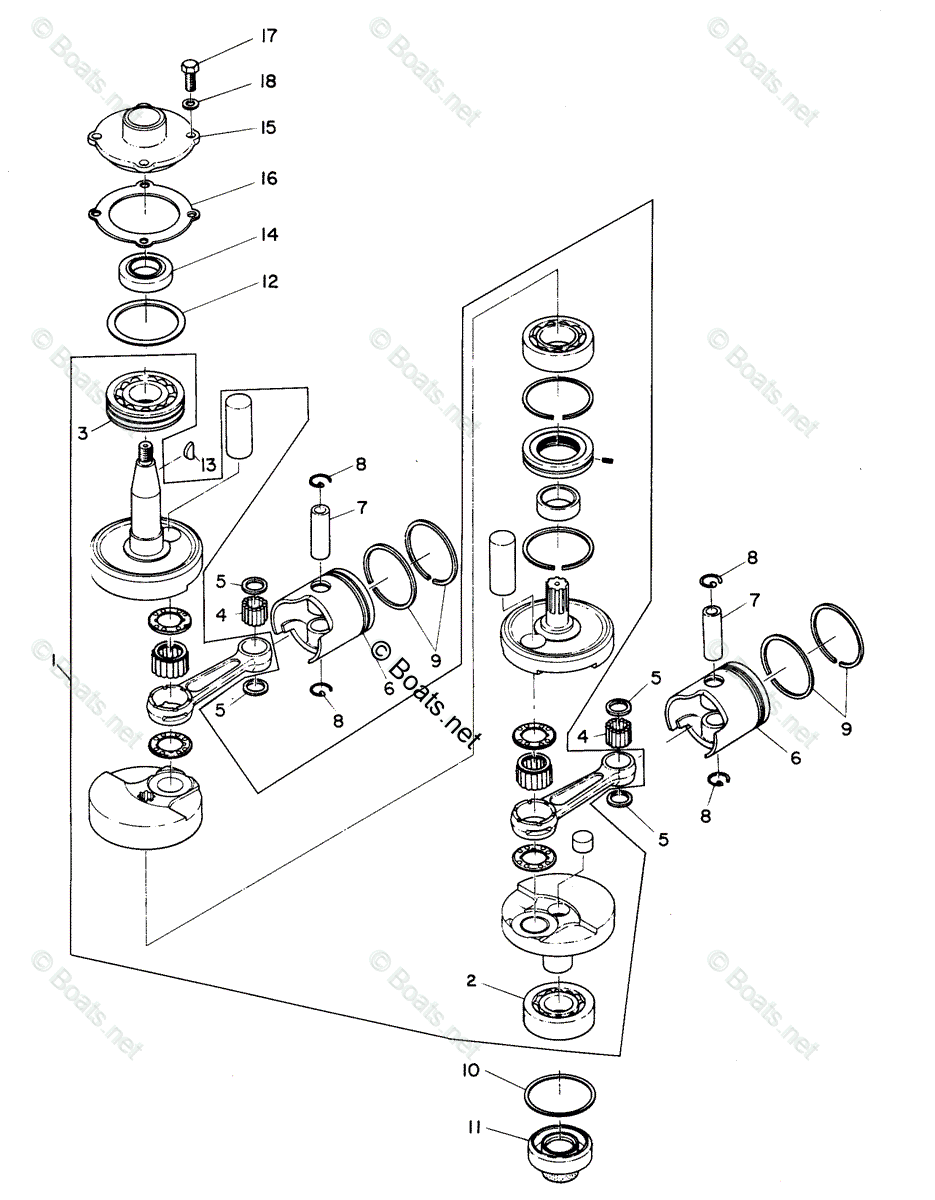

Mariner 15HP 7015247 1977 Crankshaft and Piston Diagram
