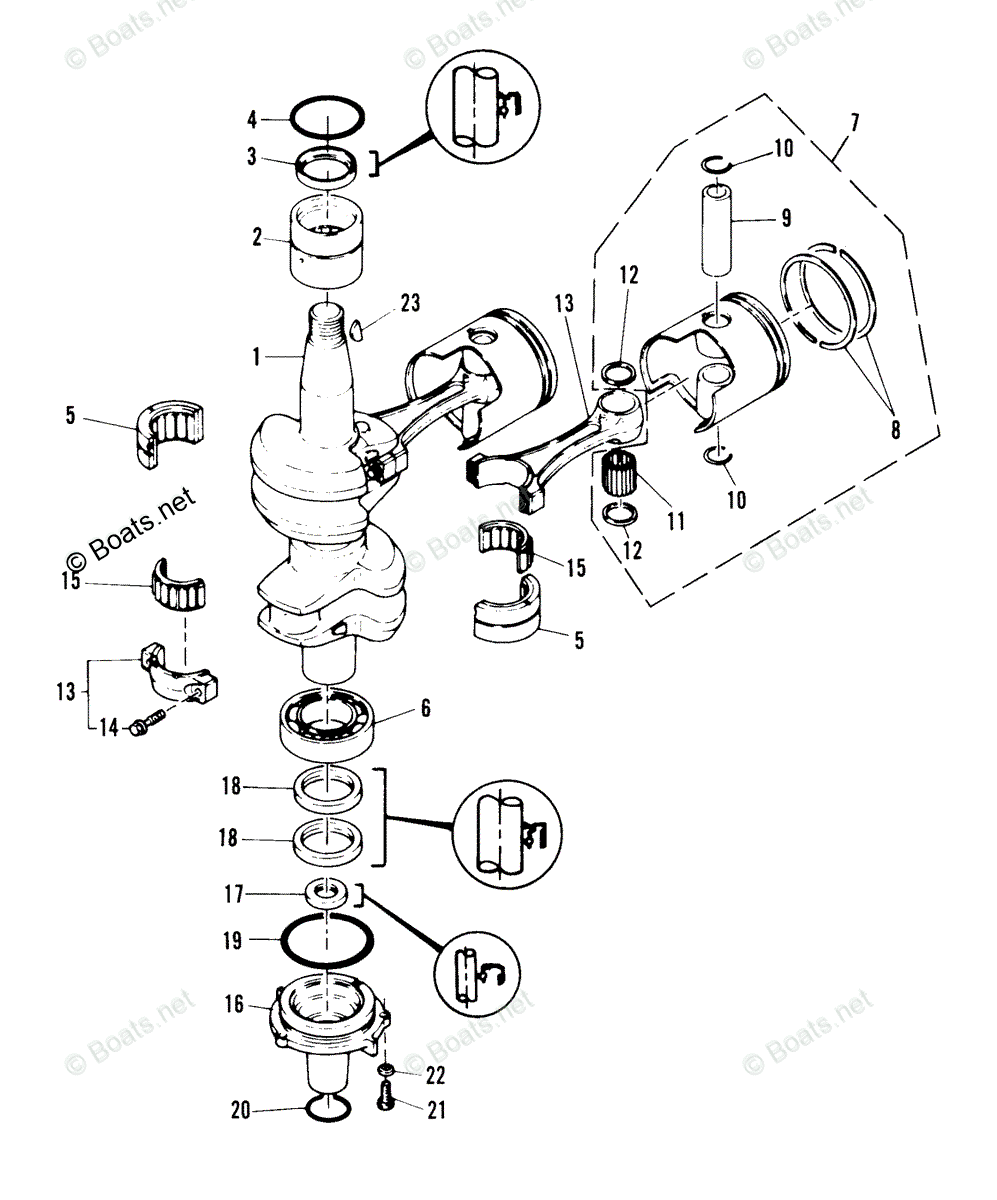

Mariner 40A 676-A311371 & Up Crankshaft and Piston Diagram

Check Availability

# Description Price Qty
1 CRANKSHAFT
6984M 		Unavailable
2 BEARING, NEEDLE
83341T 		Unavailable
3 OIL SEAL
82249M 		Unavailable
4 O-RING
82276M 		Unavailable
5 BEARING, NEEDLE
97837T 		Unavailable
6 BEARING
814560T 		Unavailable
7 PISTON ASS'Y (2ND OVER SIZE 75.50 MM)
8017M 		Unavailable
7 PISTON ASS'Y (STANDARD)
8015M 		Unavailable
7 PISTON ASS'Y (1ST OVER SIZE 75.25 MM)
8016M 		Unavailable
8 PISTON RING SET (2ND OVER SIZE 75.50 MM)
83898T 		Unavailable
8 PISTON RING SET (STANDARD)
83896T 		Unavailable
8 PISTON RING SET (1ST OVER SIZE 75.25 MM)
83897T 		Unavailable
9 PIN, PISTON
83345T 		Unavailable
10 CLIP, PISTON PIN
81264M 		Unavailable
11 BEARING, NEEDLE
82353M 		Unavailable
12 WASHER
81831M 		Unavailable
13 CONNECTING ROD ASS'Y
8813M 		Unavailable
14 BOLT
81715M 		Unavailable
15 BEARING, NEEDLE
97710M 		Unavailable
16 HOUSING, OIL SEAL
94484M 		Unavailable
17 OIL SEAL
83347M 		Unavailable
18 OIL SEAL
82248M 		Unavailable
19 O-RING
82286M 		Unavailable
20 O-RING
83348M 		Unavailable
21 BOLT
826957M 		Unavailable
22 WASHER
82214M 		Unavailable
23 KEY, FLYWHEEL
81915M 		Unavailable
