Mariner Outboard 9.9HP OEM Parts Diagram for Crankshaft and Piston

#	Description	Price	Qty
0-1	CRANKSHAFT ASSEMBLY 9854M	Unavailable
1	BEARING (UPPER) 82303T Ships in 2 to 3 days	~~$60.83~~ $56.57	Add
2	BEARING (LOWER) 83938T Ships in 2 to 3 days	~~$54.08~~ $50.29	Add
3	SNAP RING 94555M	Unavailable
4	SEAL 84244M	Unavailable
5	PISTON (STANDARD) 7982T	Unavailable
5	PISTON (1ST. O.S. 56.25MM) 8022T	Unavailable
5	PISTON (2ND. O.S. 56.50MM) 8023T	Unavailable
6	PISTON RING SET (2ND. O.S. 56.50MM) 15322T	Unavailable
6	PISTON RING SET (STANDARD) 15320T Ships in 2 to 3 days	~~$20.42~~ $18.99	Add
6	PISTON RING SET (1ST. O.S. 56.25MM) 18939T	Unavailable
7	PISTON PIN 80272M	Unavailable
8	NEEDLE BEARING 82349M	Unavailable
9	WASHER 81823M	Unavailable
10	CLIP 82343M Ships in 2 to 3 days	~~$2.20~~ $2.05	Add
11	OIL SEAL (UPPER) 83936M	Unavailable
12	SPACER 84243M	Unavailable
13	HOUSING 83945T	Unavailable
14	O-RING 83930M	Unavailable
15	OIL SEAL (LOWER) 96605M	Unavailable
16	OIL SEAL (LOWER) 96606M Ships in 2 to 3 days	~~$14.00~~ $13.02	Add
17	BOLT 826957M	Unavailable
18	WASHER 82214M	Unavailable
19	KEY 8M0057164	Unavailable

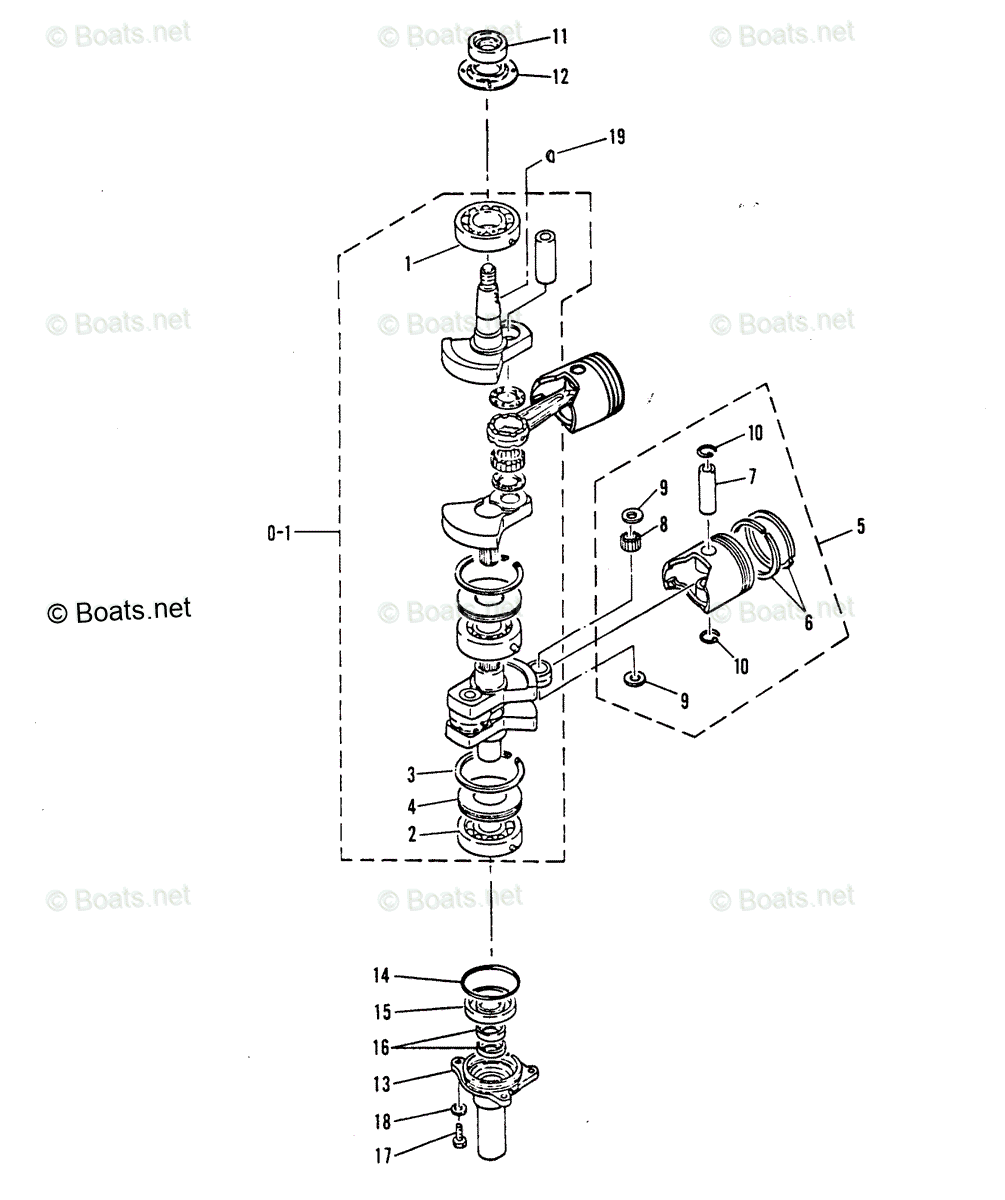

Mariner 9.9HP 682-032886 & UP Crankshaft and Piston Diagram
