1. Catalog
  2. Mercury
  3. Outboard
  4. 140HP
  5. 140HP 8052650 THRU 8052879

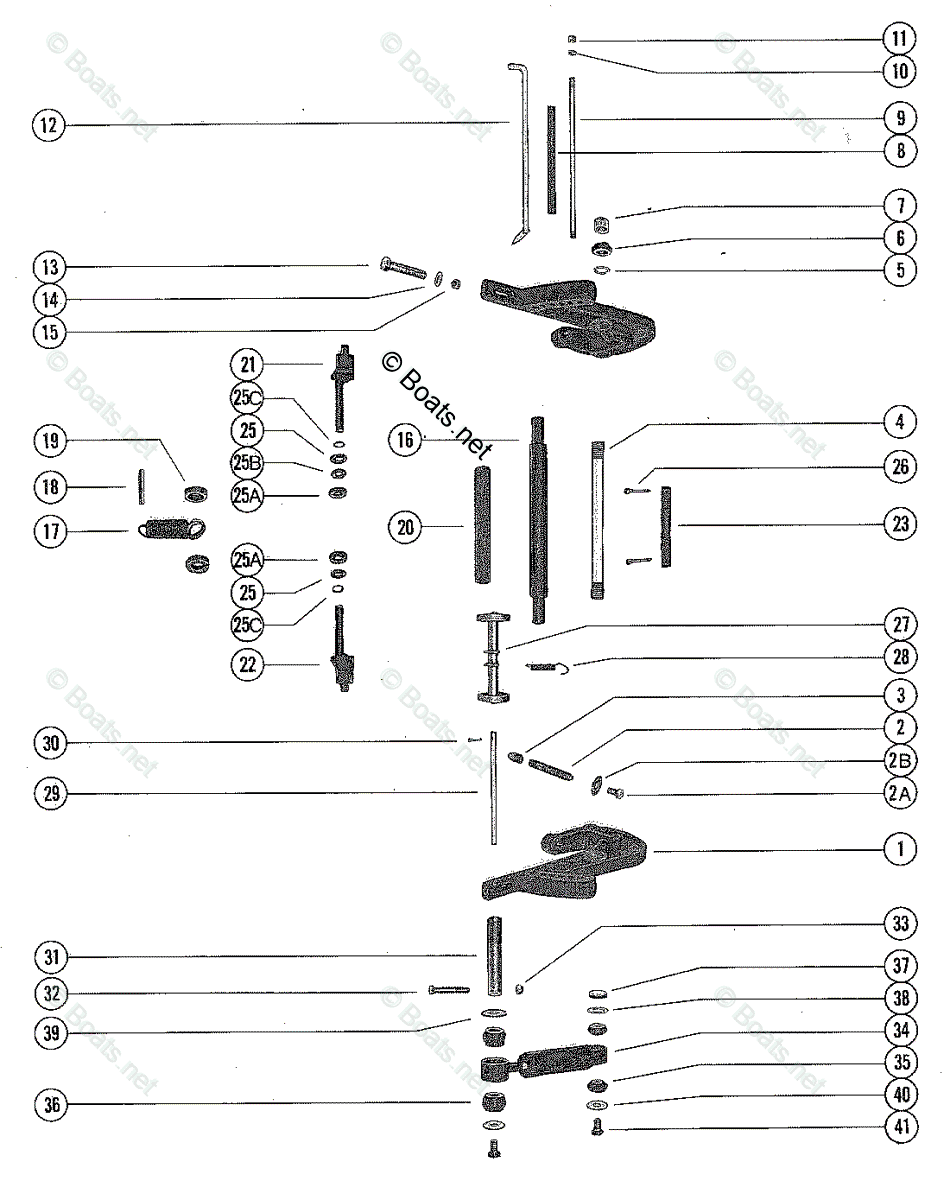

  6. CLAMP BRACKET AND REVERSE LOCK

Check Availability

# Description Price Qty
1 CLAMP BRACKET ASSEMBLY
8394A1 		Unavailable
2A SCREW, WASHER ATTACHING
78495 		Unavailable
2B WASHER, THUMB SCREW
78493 		Unavailable
2 THUMB SCREW ASSEMBLY
78492A1 		Unavailable
3 CAP, THUMB SCREW
75043 		Unavailable
4 TUBE *{TILT - CLAMP BRACKET TO SWIVEL BRACKET}*
8M0041936
In Stock
$24.60
$24.02
Add
5 WASHER, CLAMP BRACKET TILT TUBE
52864 		Unavailable
6 NUT, TILT TUBE FASTENING
858869
In Stock
$4.80
$4.68
Add
7 CAP, PLASTIC - TILT TUBE
53078 		Unavailable
8 SPACER, CLAMP BRACKET STUD
59624 		Unavailable
9 STUD *{CLAMP BRACKET (NOT USED WITH FULL POWER TRIM)}*
59625 		Unavailable
10 LOCKWASHER, CLAMP BRACKET STUD
26993
In Stock
$1.70
$1.58
Add
11 NUT, CLAMP BRACKET STUD
28770
In Stock
$3.50
$3.42
Add
12 TILT LOCK PIN ASSEMBLY *{(NOT USED WITH FULL POWER TRIM)}*
8M0026068
In Stock
$53.25
$52.00
Add
13 BOLT *{CLAMP BRACKET TO BOAT TRANSOM (UPPER)}*
68299
Ships in 2 to 3 days
$6.70
$6.23
Add
13 BOLT *{CLAMP BRACKET TO BOAT TRANSOM (LOWER)}*
68298 		Unavailable
14 WASHER, CLAMP BRACKET BOLT (LOWER)
68410 		Unavailable
14 WASHER, CLAMP BRACKET BOLT (UPPER)
68300 		Unavailable
15 NUT, CLAMP BRACKET BOLT
82670912
Ships in 2 to 3 days
$6.50
$6.05
Add
16 PIN, UPPER SHOCK MOUNTING
28416 		Unavailable
17 SPRING *{COIL - SWIVEL BRACKET -NOT USED WITH FULL POWER TRIM}*
94891 		Unavailable
18 PIN *{COIL SPRING MOUNTING -NOT USED WITH FULL POWER TRIM}*
38311 		Unavailable
19 SPACER, RUBBER - COIL SPRING POSITIONING *{NOT USED WITH FULL POWER TRIM}*
28688 		Unavailable
20 TUBE, CUSHION - SHOCK PIN *{(USED WITH FULL POWER TRIM)}*
63473 		Unavailable
21 TILT LOCK ASSEMBLY (STARBOARD)
76386 		Unavailable
22 TILT LOCK ASSEMBLY (PORT)
76385T 		Unavailable
23 TUBE, TILT LOCK
79659 		Unavailable
25A OIL SEAL, SWIVEL BRACKET (TILT LOCK)
22734 		Unavailable
25B WASHER, TILT LOCK (STARBOARD SIDE ONLY)
76388 		Unavailable
25C O RING, TILT LOCK
627021
In Stock
$1.60
$1.56
Add
25 WASHER *{WAVE - TILT LOCK (STARBOARD SIDE ONLY)}*
69150
In Stock
$3.70
$3.61
Add
26 COTTER PIN, TILT LOCK
47959
In Stock
$2.90
$2.84
Add
27 REVERSE LOCK ASSEMBLY *{NOT USED WITH FULL POWER TRIM}*
87431 		Unavailable
28 SPRING, REVERSE LOCK TENSION *{NOT USED WITH FULL POWER TRIM}*
78203A1 		Unavailable
29 SHAFT, REVERSE LOCK PIVOT *{NOT USED WITH FULL POWER TRIM}*
56349 		Unavailable
30 COTTER PIN, REVERSE LOCK TO SHAFT *{NOT USED WITH FULL POWER TRIM}*
45882
In Stock
$2.55
$2.49
Add
31 PIN, LOWER SHOCK MOUNTING
28414 		Unavailable
32 SCREW, LOWER SHOCK PIN
21937 		Unavailable
33 NUT, LOWER SHOCK PIN SCREW
20184
In Stock
$1.70
$1.66
Add
34 SHOCK ABSORBER *{NOT USED WITH FULL POWER TRIM}*
58780A7 		Unavailable
35 BUSHING, RUBBER - SHOCK ABSORBER (UPPER) *{-NOT USED WITH FULL POWER TRIM}*
32171 		Unavailable
36 BUSHING, RUBBER - SHOCK ABSORBER (LOWER) *{-NOT USED WITH FULL POWER TRIM}*
28198 		Unavailable
37 SPACER *{UPPER SHOCK BUSHING TO CLAMP BRACKET}*
73203 		Unavailable
38 WASHER, UPPER BUSHING RETAINER (INNER)
28196 		Unavailable
39 WASHER, LOWER BUSHING RETAINER (INNER)
59378 		Unavailable
40 WASHER *{UPPER AND LOWER BUSHING RETAINER (OUTER)}*
69374 		Unavailable
41 SCREW *{UPPER AND LOWER SHOCK MOUNTING PIN}*
69375A1 		Unavailable
