OMC V115SHLETS
Stern Bracket - Power Trim & Tilt

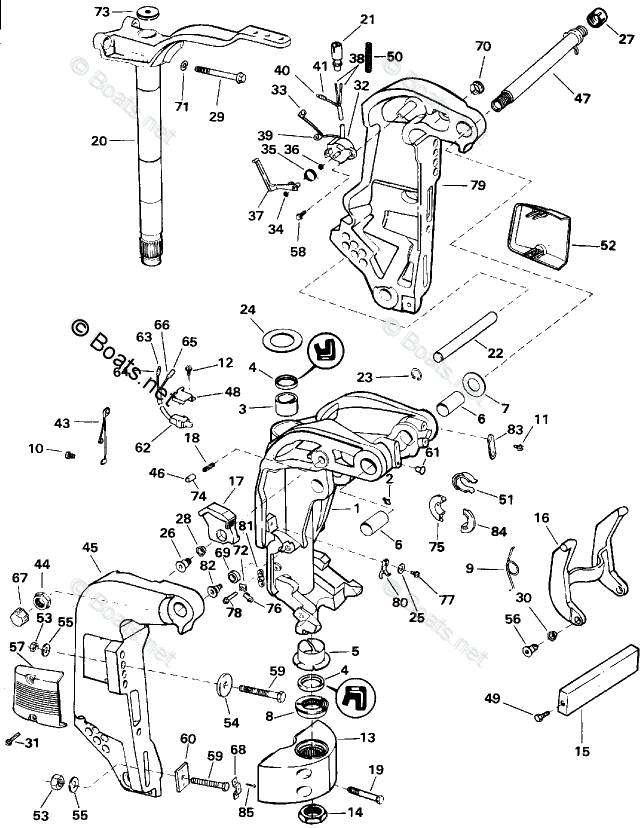

Diagram
Catalog
OMC
Quiet Rider
115HP
V115SHLETS
Stern Bracket - Power Trim & Tilt
Check Availability
Select your address
#
Description
Price
Qty
1
SWIVEL BRACKET. 25 in. (635mm) Transom Models
0435006
Ships in 2 to 3 days
$824.49
$824.49
Add
1
SWIVEL BRACKET. 20 in. (508mm) Transom Models
0435005
Ships in 2 to 3 days
$760.49
$760.49
Add
2
LUBRICATION FITTING
0313607
Ships in 2 to 3 days
$9.46
$8.94
Add
3
BUSHING
0320962
Ships in 2 to 3 days
$25.49
$22.94
Add
4
SEAL
0335686
Ships in 2 to 3 days
$12.99
$11.69
Add
5
BUSHING, Lower pivot shaft
0336819
Ships in 2 to 3 days
$17.99
$16.19
Add
6
BUSHING, Swivel bracket
0337579
In Stock
$15.99
$15.11
Add
7
THRUST WASHER, Tilt tube
0910992
In Stock
$12.99
$12.27
Add
8
KEEPER, Pivot shaft
0327696
Ships in 2 to 3 days
$24.49
$22.04
Add
9
SPRING, Trail lock to brkt.
0336210
Ships in 2 to 3 days
$11.49
$10.34
Add
10
SCREW, Ground lead
0328724
In Stock
$13.99
$13.22
Add
11
SCREW, Retainer, tilt limit
0328724
In Stock
$13.99
$13.22
Add
12
SCREW, Brkt., tilt limit
0328724
In Stock
$13.99
$13.22
Add
13
MOUNT BRACKET
0339305
Ships in 2 to 3 days
$420.99
$378.89
Add
14
NUT, Mount bracket
0320746
Ships in 2 to 3 days
$29.49
$26.54
Add
15
ANODE, Stern bracket
0433580
In Stock
$50.99
$48.18
Add
16
ARM, Trail lock
0335470
Ships in 2 to 3 days
$183.49
$165.14
Add
17
LEVER, Tilt lock
0335485
Ships in 2 to 3 days
$40.49
$36.44
Add
18
SPRING, Detent, tilt lock
0336230
Ships in 2 to 3 days
$11.49
$10.34
Add
19
SCREW, Mount
0334936
Ships in 2 to 3 days
$40.99
$38.73
Add
20
STEERING ARM ASSY.. 20 in. (508mm) Transom Models
0434164
Ships in 2 to 3 days
$581.49
$523.34
Add
20
STEERING ARM ASSY.. 25 in. (635mm) Transom Models
0434165
Ships in 2 to 3 days
$607.49
$546.74
Add
21
CONNECTOR, Sending unit
0512746
Ships in 2 to 3 days
$17.99
$16.19
Add
22
ROD, Trim limiter
0336525
Ships in 2 to 3 days
$87.99
$79.19
Add
23
RING, Retaining, trim rod
0336529
In Stock
$11.49
$10.86
Add
24
THRUST WASHER, Pivot shaft
0320866
In Stock
$12.99
$12.27
Add
25
WASHER, Clip
0328702
In Stock
$4.44
$4.20
Add
26
SCREW, Tilt lever to brkt.
0335481
Ships in 2 to 3 days
$25.49
$22.94
Add
27
WIPER NUT, Tilt tube
0337586
In Stock
$14.99
$14.16
Add
28
BUSHING, Tilt lever
0335486
Ships in 2 to 3 days
$11.49
$10.34
Add
29
SCREW, Upper mount
0335612
Unavailable
30
BUSHING, Trail arm
0335701
Ships in 2 to 3 days
$11.49
$10.34
Add
31
SCREW, Cover
0337580
Ships in 2 to 3 days
$7.79
$7.01
Add
32
SENDING UNIT ASSY.
0584176
Ships in 2 to 3 days
$158.99
$143.09
Add
33
TERMINAL, Ring
0513871
Ships in 2 to 3 days
$0.77
$0.69
Add
34
RETAINER
0511527
Ships in 2 to 3 days
$9.46
$8.51
Add
35
SPRING
0511528
Unavailable
36
NUT
0320689
Ships in 2 to 3 days
$9.46
$8.51
Add
37
ARM
0335708
Ships in 2 to 3 days
$12.99
$11.69
Add
38
PIN, Sending unit
0511469
In Stock
$1.33
$1.26
Add
39
TERMINAL, Ring
0512131
Unavailable
40
TERMINAL, Bullet
0512947
In Stock
$0.77
$0.72
Add
41
SLEEVE
0513185
In Stock
$6.41
$6.06
Add
43
LEAD ASSY., Ground
0584262
Unavailable
44
NUT, Tilt tube
0335554
In Stock
$11.99
$11.33
Add
45
STERN BRACKET, Starboard
0335489
Ships in 2 to 3 days
$486.99
$438.29
Add
46
BALL, Detent, tilt lock
0336209
Ships in 2 to 3 days
$11.49
$10.34
Add
47
TILT TUBE AY.
0435007
Ships in 2 to 3 days
$270.99
$243.89
Add
48
BRACKET, Tilt limit switch
0336171
In Stock
$12.99
$12.27
Add
49
SCREW, Anode
0324816
In Stock
$15.99
$15.11
Add
50
SLEEVE, Motor & sending unit
0513816
Ships in 2 to 3 days
$4.18
$3.76
Add
51
CAM, Tilt limit switch
0337591
Ships in 2 to 3 days
$11.49
$10.34
Add
52
COVER, Port
0335475
Ships in 2 to 3 days
$15.99
$14.39
Add
53
NUT, Stern bracket screw
0313623
In Stock
$3.34
$3.16
Add
54
WASHER, Transom screw
0307238
Ships in 2 to 3 days
$12.99
$11.69
Add
55
WASHER, Transon nut
0320248
In Stock
$6.41
$6.06
Add
56
SCREW, Trail arm to brkt.
0335487
In Stock
$19.99
$18.89
Add
57
COVER, Starboard
0335474
Ships in 2 to 3 days
$15.99
$14.39
Add
58
SCREW, Sending unit
0328744
In Stock
$9.46
$8.94
Add
59
SCREW, Brkt. to transom, 6" (152mm)
0321577
In Stock
$17.99
$16.19
Add
59
SCREW, Brkt. to transom, 3" (76mm)
0327053
In Stock
$27.99
$26.45
Add
59
SCREW, Brkt. to transom, 5" (127mm)
0331578
Unavailable
59
SCREW, Brkt. to transom, 4 1/4 " (114mm)
0336675
In Stock
$6.96
$6.26
Add
59
SCREW, Brkt. to transom, 4 3/4 " (121mm)
0336676
In Stock
$6.96
$6.26
Add
60
PLATE, Transom mounting screw
0318272
Ships in 2 to 3 days
$11.49
$10.34
Add
61
PLUG, Swivel bracket
0334076
Ships in 2 to 3 days
$9.46
$8.51
Add
62
SWITCH AY., Tilt limit
0434180
Unavailable
63
TERMINAL, Bullet
0512947
In Stock
$0.77
$0.72
Add
64
SLEEVE
0513185
In Stock
$6.41
$6.06
Add
65
TERMINAL, Bullet
0512876
In Stock
$2.99
$2.82
Add
66
SLEEVE
0513186
In Stock
$7.79
$7.36
Add
67
CAP, Tilt tube
0317894
Ships in 2 to 3 days
$9.74
$8.77
Add
68
RETAINER, Transom mounting screw
0318273
Ships in 2 to 3 days
$10.49
$9.44
Add
69
THRUST ROLLER
0335949
Ships in 2 to 3 days
$32.49
$29.24
Add
70
BUSHING, Tilt & trim cable
0909988
Ships in 2 to 3 days
$13.99
$12.87
Add
71
WASHER, Screw, strng. arm
0313169
Ships in 2 to 3 days
$4.75
$4.37
Add
72
CLIP, Support
0336853
In Stock
$16.99
$16.05
Add
73
SEAL, Shift rod
0322302
Unavailable
74
GUIDE, Ball detent, tilt lock
0334241
Ships in 2 to 3 days
$9.46
$8.51
Add
75
COLLAR, Tilt limit, top
0337592
Ships in 2 to 3 days
$11.49
$10.34
Add
76
RETAINER, Trail lock spring
0335814
In Stock
$11.49
$10.86
Add
77
SCREW, Retainer to brkt.
0336753
In Stock
$9.46
$8.94
Add
78
SCREW, Support
0328724
In Stock
$13.99
$13.22
Add
79
STERN BRKT., Port
0335416
Ships in 2 to 3 days
$486.99
$438.29
Add
80
RETAINER, Trail arm
0336172
In Stock
$11.49
$10.86
Add
81
RETAINER, Support
0336467
In Stock
$12.99
$12.27
Add
82
SCREW, Thrust roller, swivel brkt.
0335487
In Stock
$19.99
$18.89
Add
83
RETAINER, Limit switch
0513787
Ships in 2 to 3 days
$7.23
$6.51
Add
84
COLLAR, Tilt limit
0337593
Ships in 2 to 3 days
$11.49
$10.34
Add
85
SCREW, Transom screw retainer
0319886
Ships in 2 to 3 days
$4.18
$3.76
Add
