Suzuki Outboard 40HP OEM Parts Diagram for Clamp Bracket (DT40TC Model: 1994 Thru 1998)

#	Description	Price	Qty
1	BRACKET, CLAMP STBD 41111-97E01-OED	Unavailable
2	BRACKET, CLAMP PORT 41121-97E01-OED	Unavailable
3	SHAFT, CLAMP BRACKET 41130-95290	Unavailable
4	CAP, CLAMP BRACKET 41151-94500 Ships in 2 to 3 days	~~$2.66~~ $2.47	Add
5	PLUG, CLAMP BRACKET 41152-94500 Ships in 2 to 3 days	~~$2.06~~ $1.92	Add
6	CAP, TRANSOM BOLT 41153-94500 Ships in 2 to 3 days	~~$2.76~~ $2.57	Add
7	ZINC, PROTECTION 55320-95310 In Stock	~~$8.15~~ $7.96	Add
8	.BOLT, ZINC 09116-06092 In Stock	~~$2.12~~ $2.07	Add
9	BOLT (12x100) 09100-12039 Ships in 2 to 3 days	~~$12.82~~ $11.92	Add
10	NUT, TRANSOM 09140-12028 Ships in 2 to 3 days	~~$3.36~~ $2.81	Add
11	WASHER (12.5x35x3.2) 09160-12044 Ships in 2 to 3 days	~~$3.21~~ $2.99	Add
12	WASHER (12.5x22x2.5) 09160-12066 Ships in 2 to 3 days	~~$1.69~~ $1.65	Add
13	WASHER, TRANSOM LOCK 09162-12005 Ships in 2 to 3 days	~~$1.89~~ $1.76	Add
14	PIN, TILT LOCK 45421-97E00	Unavailable
15	NUT TILT LOCK 09159-10050 In Stock	~~$2.40~~ $2.34	Add
16	NUT 09159-22003 Ships in 2 to 3 days	~~$23.67~~ $22.01	Add
17	SHAFT, TILT CYL LOWER 48121-97E00	Unavailable
18	BUSH, TILT CYL LOWER 09307-18002 In Stock	~~$9.59~~ $9.37	Add
19	BOLT, TILT LOWER (10x14 5) 09100-10190 Ships in 2 to 3 days	~~$14.61~~ $13.59	Add
20	NUT, TILT CYL LOWER 09159-10050 In Stock	~~$2.40~~ $2.34	Add

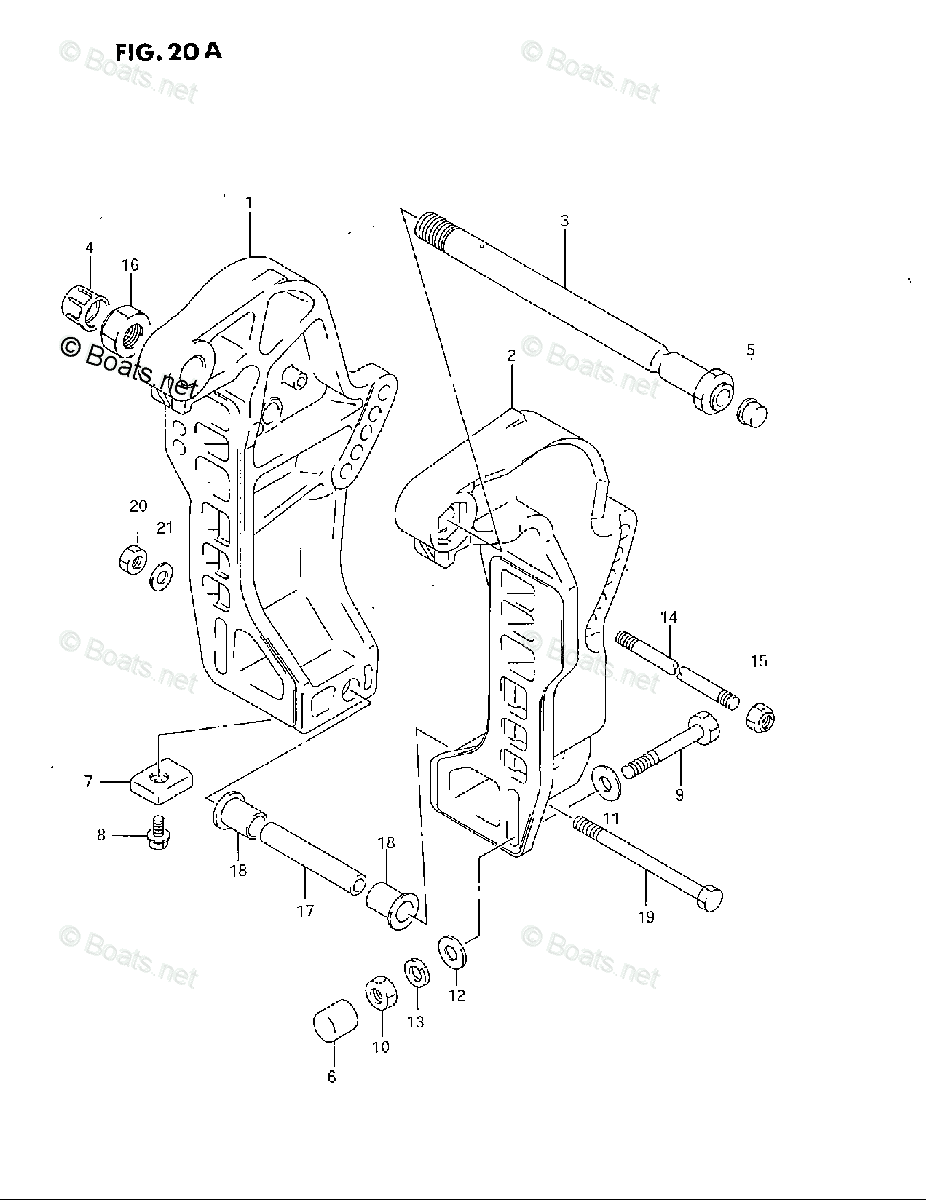

Suzuki DT 40CRLG Beginning VIN# 04003-608513 Clamp Bracket (DT40TC Model: 1994 Thru 1998) Diagram
