1. Catalog
  2. Yamaha
  3. Outboard
  4. 200HP
  5. 200ETXH 1987

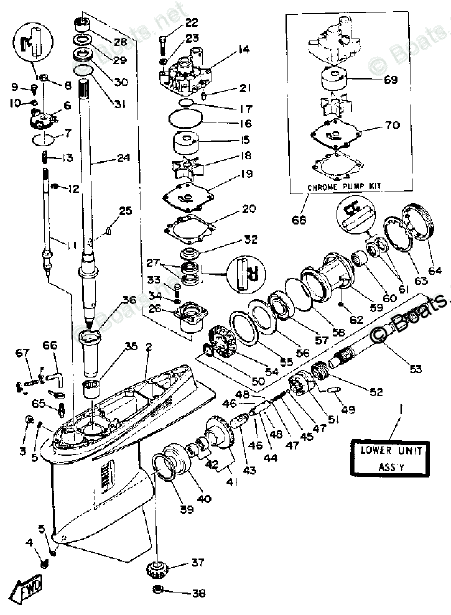

  6. Lower - Drive 1

Check Availability

# Description Price Qty
1 LOWER UNIT ASSEMBLY (6G5-45300-20-EK)
6G5-45300-20-EK 		Unavailable
1 LOWER UNIT KIT (6G5-45300-10-EK)
6G5-45300-10-KT 		Unavailable
2 LOWER CASING
6G5-45301-00-EK 		Unavailable
3 PLUG, STRAIGHT SCREW
90340-08M04-00
In Stock
$11.35
$10.08
Add
4 PLUG, DRAIN
688-45341-00-00
In Stock
$11.30
$10.01
Add
5 .GASKET
90430-08020-00
In Stock
$1.35
$1.19
Add
6 PLATE
6E5-45321-00-00
In Stock
$57.00
$49.63
Add
7 O-RING
93210-58677-00
In Stock
$5.49
$5.49
Add
8 .OIL SEAL
93106-09014-00
In Stock
$7.50
$6.63
Add
9 BOLT, HEXAGON
97395-06020-00 		Unavailable
10 WASHER
90209-06M04-00 		Unavailable
11 SHIFT CAM ASSY
6G5-44150-01-00
Ships in 2 to 3 days
$312.45
$295.25
Add
12 CIRCLIP
99001-08600-00
In Stock
$6.99
$5.76
Add
13 SPRING, COMPRESSION
90501-11M10-00
In Stock
$3.05
$2.72
Add
14 HOUSING, WATER PUMP
6E5-44311-00-00
In Stock
$30.15
$25.73
Add
15 INSERT, CARTRIDGE
6E5-44322-00-00
In Stock
$53.95
$46.91
Add
16 .O-RING
93210-86M38-00
In Stock
$12.35
$11.09
Add
17 O-RING
93210-37M67-00
In Stock
$3.30
$2.94
Add
18 IMPELLER
6E5-44352-00-00
In Stock
$30.10
$26.04
Add
19 .OUTER PLATE, CARTRIDGE
6G5-44323-00-00
In Stock
$16.70
$14.78
Add
20 GASKET, WATER PUMP
6E5-44315-00-00
In Stock
$5.40
$4.79
Add
21 PIN, DOWEL
93606-12019-00
In Stock
$3.50
$2.79
Add
22 BOLT
97395-08045-00
In Stock
$6.99
$5.57
Add
23 WASHER
90209-08M02-00
In Stock
$5.40
$4.79
Add
24 DRIVE SHAFT COMP.
6G5-45501-01-00
In Stock
$417.10
$394.16
Add
24 DRIVE SHAFT COMP.
6G5-45501-21-00
Ships in 2 to 3 days
$382.60
$344.34
Add
25 .KEY, WOODRUFF
90280-04M05-00
In Stock
$12.80
$11.40
Add
26 HOUSING, BEARING
6E5-45331-00-94
In Stock
$119.45
$99.92
Add
27 .OIL SEAL
93101-28M16-00
In Stock
$10.15
$8.98
Add
28 BEARING
93317-330U2-00
Ships in 2 to 3 days
$48.99
$37.83
Add
29 SHIM (T:0.30MM)
6E5-45587-01-30
In Stock
$5.50
$5.20
Add
29 SHIM (T:0.12MM)
6E5-45587-01-12
Ships in 2 to 3 days
$5.50
$4.63
Add
29 SHIM 3
6E5-45587-00-05
Ships in 2 to 3 days
$12.40
$11.16
Add
29 SHIM 3
6E5-45587-00-08 		Unavailable
29 SHIM (T:0.50MM)
6E5-45587-01-50
In Stock
$5.50
$4.63
Add
30 BEARING, THRUST
93341-930U0-00
In Stock
$253.99
$183.16
Add
31 O-RING
93210-54534-00
In Stock
$5.25
$5.25
Add
32 COVER, OIL SEAL
6E5-45344-00-00
In Stock
$17.25
$14.94
Add
33 BOLT
97395-08025-00
In Stock
$6.99
$6.13
Add
34 .WASHER, PLATE
92990-08600-00
In Stock
$2.35
$2.35
Add
35 BEARING
93311-928U5-00
In Stock
$113.99
$103.68
Add
36 SLEEVE, DRIVE SHAFT
6E5-45536-00-00
Ships in 2 to 3 days
$57.90
$52.11
Add
37 PINION (14T)
6G5-45551-01-00
Ships in 2 to 3 days
$217.10
$195.39
Add
38 NUT
90170-16M01-00
In Stock
$7.49
$7.02
Add
39 SHIM (T:0.30MM)
6G5-45567-01-30
Ships in 2 to 3 days
$5.80
$5.22
Add
39 SHIM (T:0.50MM)
6G5-45567-01-50
Ships in 2 to 3 days
$5.80
$5.22
Add
39 SHIM (T:0.12MM)
6G5-45567-01-12
Ships in 2 to 3 days
$5.80
$5.22
Add
39 SHIM
6G5-45567-00-08 		Unavailable
39 SHIM
6G5-45567-00-05
Ships in 2 to 3 days
$25.15
$20.26
Add
40 BEARING
93332-000V3-00
In Stock
$122.99
$113.64
Add
41 GEAR 1 (26T)
6G5-45560-01-00
Ships in 2 to 3 days
$372.60
$335.34
Add
42 .BEARING
93315-425V3-00
In Stock
$37.99
$32.47
Add
43 SHIFTER
6E5-45641-01-00
Ships in 2 to 3 days
$160.50
$144.45
Add
44 SLIDE, SHIFT
6E5-45634-01-00
In Stock
$121.05
$101.40
Add
45 SPRING, COMPRESSION
90501-16M37-00
In Stock
$5.95
$5.95
Add
46 BALL 7-32
93507-32031-00
In Stock
$6.99
$5.76
Add
47 BALL
93511-32027-00
In Stock
$6.99
$5.76
Add
48 BALL 3-16
93503-16010-00
In Stock
$2.35
$1.53
Add
49 PIN, STRAIGHT
90250-08M07-00
In Stock
$8.05
$7.14
Add
50 WASHER, PLATE
90201-30M92-00
In Stock
$10.80
$9.11
Add
51 CLUTCH, DOG
6G5-45631-00-00
Ships in 2 to 3 days
$273.75
$246.38
Add
52 RING, CROSS PIN
6E5-45633-01-00
In Stock
$14.75
$13.09
Add
53 SHAFT, PROPELLER
6J9-45611-01-00
In Stock
$326.70
$308.73
Add
54 GEAR 2
6G5-45571-01-00
Ships in 2 to 3 days
$234.85
$211.37
Add
55 SHIM (T:0.12MM)
6G5-45577-02-12
Ships in 2 to 3 days
$5.40
$4.56
Add
55 SHIM
6G5-45577-01-05 		Unavailable
55 SHIM (T:0.30MM)
6G5-45577-02-30
Ships in 2 to 3 days
$5.80
$5.22
Add
55 SHIM
6G5-45577-01-08 		Unavailable
55 SHIM (T:0.50MM)
6G5-45577-02-50
In Stock
$5.80
$5.16
Add
56 WASHER, THRUST
6G5-45576-00-00
Ships in 2 to 3 days
$47.40
$39.10
Add
57 BEARING
93306-209U0-00
In Stock
$68.99
$53.54
Add
58 .O-RING
93210-97M55-00
In Stock
$13.25
$11.77
Add
59 HOUSING, BEARING
6G5-45332-00-94 		Unavailable
60 BEARING
93315-430U8-00
In Stock
$50.99
$37.88
Add
61 .OIL SEAL
93101-30M17-00
In Stock
$12.60
$11.30
Add
62 KEY, STRAIGHT
90282-04010-00
In Stock
$12.65
$11.96
Add
63 WASHER, CLAW
6G5-45383-01-00
In Stock
$17.75
$15.75
Add
64 NUT
6G5-45384-00-00
In Stock
$50.40
$47.63
Add
65 NIPPLE, HOSE
6E5-45378-00-00
In Stock
$9.60
$8.62
Add
66 HOSE (L80)
90445-07ME8-00
In Stock
$3.65
$3.17
Add
66 HOSE (L120)
90445-07ME9-00
In Stock
$3.65
$3.17
Add
67 END, NIPPLE
6E5-83558-10-00
In Stock
$10.15
$8.98
Add
68 CHROME PUMP KIT
6G5-W0078-0A-00 		Unavailable
69 .INSERT, CARTRIDGE
6E5-44322-41-00 		Unavailable
70 .OUTER PLATE, CARTRIDGE
6G5-44323-40-00
Ships in 2 to 3 days
$56.55
$50.90
Add
