Yamaha 25ESN 1984
Lower - Drive 1

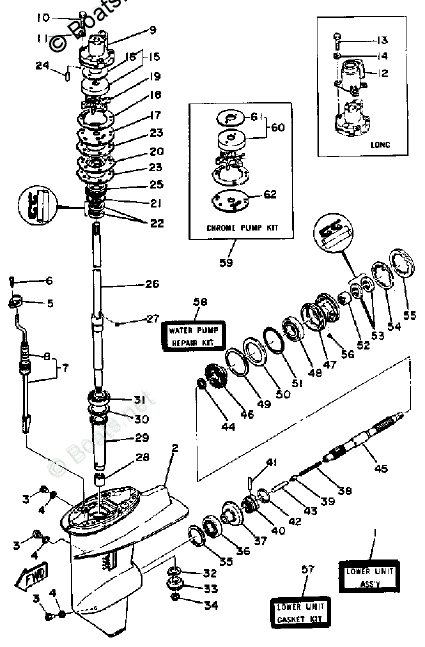

Diagram
Catalog
Yamaha
Outboard
25HP
25ESN 1984
Lower - Drive 1
Check Availability
Select your address
#
Description
Price
Qty
1
LOWER UNIT ASSEMBLY
689-45300-16-EK
Unavailable
1
LOWER UNIT ASSEMBLY
689-45300-06-EK
Unavailable
2
CASING, LOWER
689-45311-01-EK
Unavailable
3
PLUG, STRAIGHT SCREW
90340-08M04-00
In Stock
$11.35
$10.08
Add
4
.GASKET
90430-08020-00
In Stock
$1.35
$1.19
Add
5
BRACKET
689-44176-01-00
Unavailable
6
SCREW, PAN HEAD
97780-50110-00
In Stock
$6.99
$5.76
Add
7
SHIFT CAM ASSEMBLY
664-44150-11-00
Ships in 2 to 3 days
$121.55
$97.86
Add
7
SHIFT CAM ASSEMBLY
664-44150-01-00
Unavailable
8
.BOOT, SHIFT ROD
664-44147-00-00
Ships in 2 to 3 days
$31.30
$25.48
Add
9
HOUSING, WATER PUMP
689-44311-03-00
In Stock
$34.75
$29.85
Add
10
BOLT
90101-06M56-00
In Stock
$6.99
$5.76
Add
11
WASHER
90209-06M04-00
Unavailable
12
COVER, WATER PUMP HOUSING
689-44312-00-5B
Ships in 2 to 3 days
$21.20
$19.08
Add
13
BOLT, HEXAGON
97395-06035-00
Ships in 2 to 3 days
$4.60
$3.81
Add
14
WASHER, PLATE
92990-06600-00
In Stock
$2.50
$2.50
Add
15
INSERT CARTRIDGE
689-W4432-01-00
Ships in 2 to 3 days
$31.60
$25.45
Add
16
.DAMPER, WATER SEAL
689-44367-01-00
In Stock
$11.95
$10.59
Add
17
OUTER PLATE, CART.
689-44323-02-00
Unavailable
18
GASKET, CARTRIDGE
689-44324-A0-00
In Stock
$5.55
$4.92
Add
19
IMPELLER
689-44352-02-00
In Stock
$28.15
$23.96
Add
20
PROTECTOR, OIL SEAL
689-44325-02-5B
Unavailable
21
O-RING
93210-40M10-00
In Stock
$5.90
$5.23
Add
22
.OIL SEAL
93101-22067-00
In Stock
$6.75
$5.95
Add
23
GASKET, WATER PUMP
689-44315-01-00
Ships in 2 to 3 days
$5.30
$4.48
Add
24
.PIN, DOWEL
93604-10M03-00
In Stock
$4.60
$4.04
Add
25
COVER, OIL SEAL
689-45344-00-94
Ships in 2 to 3 days
$34.85
$31.37
Add
26
DRIVE SHAFT COMP.
689-45501-00-00
Ships in 2 to 3 days
$281.90
$245.19
Add
27
.KEY, WOODRUFF
664-44338-00-00
In Stock
$9.60
$8.54
Add
28
BEARING, CYLINDRICAL
93315-017U4-00
Ships in 2 to 3 days
$45.99
$34.29
Add
29
SLEEVE, DRIVE SHAFT
689-45536-00-00
Unavailable
30
SHIM (T:0.50MM)
664-45587-01-50
Ships in 2 to 3 days
$3.05
$2.47
Add
30
SHIM (T:0.30MM)
664-45587-01-30
Ships in 2 to 3 days
$3.05
$2.47
Add
30
SHIM (T:0.12MM)
664-45587-01-12
Ships in 2 to 3 days
$3.05
$2.47
Add
30
SHIM 3
664-45587-00-08
Ships in 2 to 3 days
$7.25
$5.84
Add
30
SHIM 3
664-45587-00-05
Unavailable
31
BEARING
93332-000U4-00
Ships in 2 to 3 days
$38.99
$32.73
Add
33
PINION
689-45551-00-00
Unavailable
34
NUT
90179-09M02-00
Ships in 2 to 3 days
$5.99
$5.01
Add
35
SHIM (T0.30MM)
664-45567-01-30
Ships in 2 to 3 days
$3.05
$2.75
Add
35
SHIM
664-45567-00-05
Unavailable
35
SHIM (T:0.12MM)
664-45567-01-12
Ships in 2 to 3 days
$3.05
$2.75
Add
35
SHIM
664-45567-00-08
Unavailable
35
SHIM (T:0.50MM)
664-45567-01-50
Ships in 2 to 3 days
$3.05
$2.75
Add
36
BEARING
93332-00005-00
In Stock
$71.99
$56.49
Add
37
GEAR
689-45560-00-00
Ships in 2 to 3 days
$222.60
$193.64
Add
38
SPRING, COMPRESSION
90501-10065-00
In Stock
$6.85
$6.48
Add
39
SLIDE, SHAFT
648-45634-00-00
Unavailable
40
CLUTCH, DOG
664-45631-00-00
In Stock
$40.35
$38.14
Add
41
PIN, STRAIGHT
90250-05010-00
In Stock
$4.90
$4.34
Add
42
RING, CROSS PIN
648-45633-00-00
In Stock
$7.50
$6.63
Add
43
PLUNGER, SHIFT
648-45635-00-00
In Stock
$9.90
$9.36
Add
44
WASHER, PLATE
90201-20417-00
In Stock
$6.30
$5.60
Add
45
SHAFT, PROPELLER
689-45611-01-00
Unavailable
46
GEAR
689-45571-00-00
Ships in 2 to 3 days
$181.30
$157.73
Add
47
HOUSING, BEARING
689-45331-01-94
Unavailable
48
BEARING
93306-00612-00
In Stock
$39.99
$30.90
Add
49
SHIM
664-45577-00-05
Unavailable
49
SHIM
664-45577-00-08
Unavailable
49
SHIM (T:0.12MM)
664-45577-01-12
Ships in 2 to 3 days
$5.50
$4.42
Add
49
SHIM (T:0.30MM)
664-45577-01-30
Ships in 2 to 3 days
$5.50
$4.42
Add
49
SHIM (T:0.50MM)
664-45577-01-50
Ships in 2 to 3 days
$5.50
$4.95
Add
50
WASHER, THRUST
664-45576-00-00
Unavailable
51
.O-RING
93210-60MA3-00
In Stock
$6.85
$6.03
Add
52
BEARING
93315-22004-00
In Stock
$44.30
$38.34
Add
53
.OIL SEAL
93101-20M07-00
In Stock
$6.30
$5.60
Add
54
WASHER, CLAW
90214-45M02-00
In Stock
$8.95
$7.95
Add
55
NUT
664-45384-00-00
In Stock
$21.45
$20.28
Add
56
KEY, STRAIGHT
90282-04010-00
In Stock
$12.65
$11.96
Add
57
LOWER UNIT GASKET KIT
689-W0001-21-00
Ships in 2 to 3 days
$71.45
$57.53
Add
58
WATER PUMP REPAIR KIT
689-W0078-04-00
In Stock
$63.70
$55.59
Add
60
.INSERT CARTRIDGE
689-W4432-60-00
Unavailable
61
..DAMPER, WATER SEAL
689-44367-01-00
In Stock
$11.95
$10.59
Add
