Yamaha Outboard 25HP OEM Parts Diagram for Crankshaft Piston

#	Description	Price	Qty
1	CRANKSHAFT ASSEMBLY 695-11400-00-00 Ships in 2 to 3 days	~~$814.75~~ $719.06	Add
2	WASHER, SPECIAL SHAPE 90209-22248-00 In Stock	~~$13.99~~ $10.57	Add
3	BEARING, CYLINDRICAL 93310-522W0-00 Ships in 2 to 3 days	~~$47.99~~ $32.14	Add
4	.BEARING 93306-305U3-00 Ships in 2 to 3 days	~~$49.99~~ $36.51	Add
5	BEARING 93390-00009-00 Ships in 2 to 3 days	~~$115.99~~ $93.73	Add
6	CIRCLIP, OUTER 93440-62057-00 In Stock	~~$4.70~~ $4.13	Add
7	.O-RING 93210-16275-00 In Stock	~~$3.00~~ $2.65	Add
8	WASHER, PLATE 90201-50306-00 In Stock	~~$5.80~~ $5.16	Add
9	HOUSING, OIL SEAL 689-15396-01-5B	Unavailable
10	OIL SEAL 93101-25M35-00 Ships in 2 to 3 days	~~$18.99~~ $13.10	Add
11	OIL SEAL 93101-16M36-00 In Stock	~~$7.35~~ $6.48	Add
12	.O-RING 93210-57M09-00 In Stock	~~$6.20~~ $6.20	Add
13	BOLT 97395-06022-00 In Stock	~~$6.99~~ $5.76	Add
14	WASHER, PLATE 92990-06600-00 In Stock	~~$2.50~~ $2.50	Add
15	PISTON (0.50MM O/S) 664-11636-80-00 Ships in 2 to 3 days	~~$85.10~~ $68.51	Add
15	PISTON (STD) 664-11631-80-97	Unavailable
16	PISTON RING SET (0.50MM O/S) 664-11610-50-00	Unavailable
16	PISTON RING SET (STD) 664-11610-80-00 In Stock	~~$38.95~~ $36.81	Add
17	PIN, DOWEL 93602-20M02-00 In Stock	~~$2.80~~ $2.80	Add
18	PIN, PISTON 648-11633-00-00 In Stock	~~$12.40~~ $11.16	Add
19	CIRCLIP 93450-20026-00 In Stock	~~$6.99~~ $5.76	Add
20	WASHER, PLATE 90201-18522-00 Ships in 8 to 13 days	~~$5.00~~ $4.96	Add

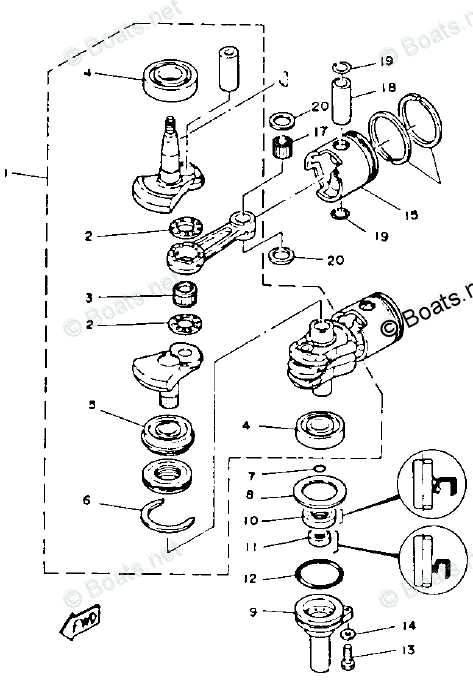

Yamaha C25ELRP 1991 Crankshaft Piston Diagram
