Yamaha C25ELRV 1997

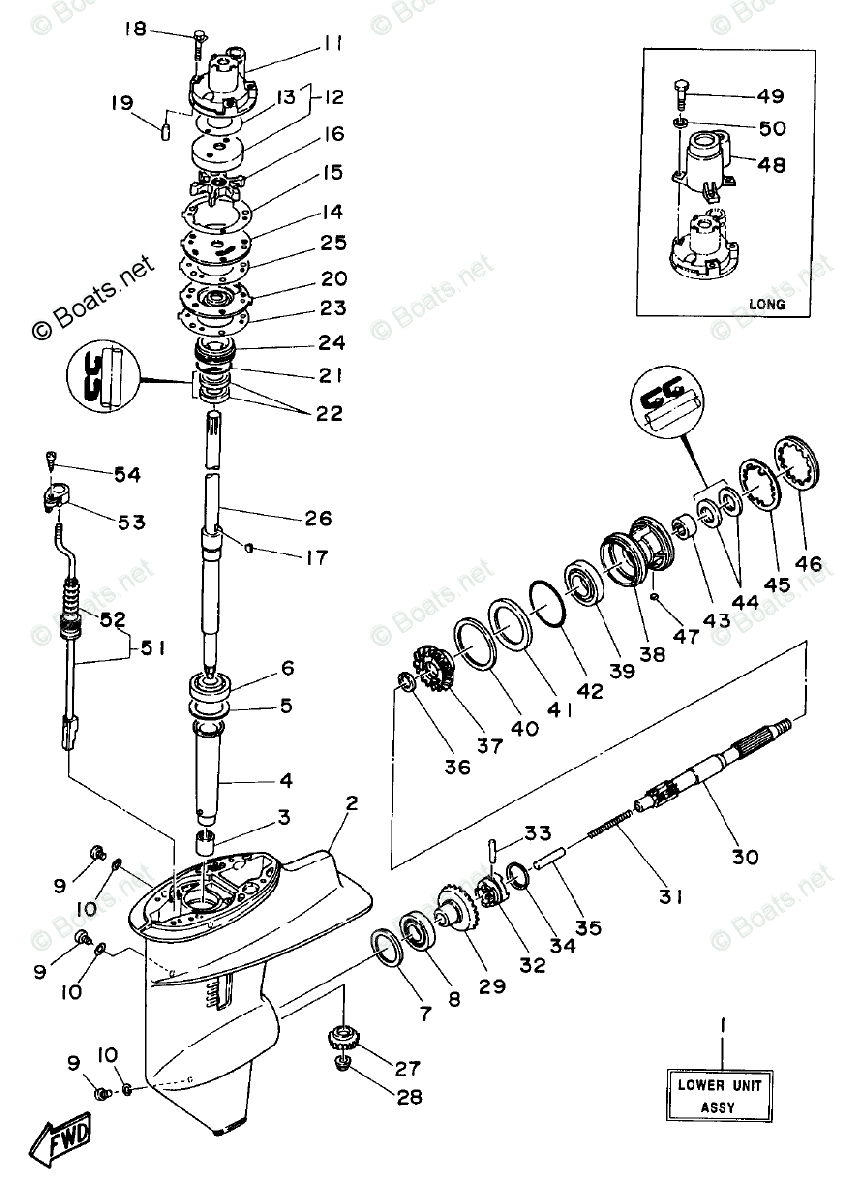

Lower Casing Drive 1
Diagram
Catalog
Yamaha
Outboard
25HP
C25ELRV 1997
Lower Casing Drive 1
Check Availability
Select your address
#
Description
Price
Qty
1
LOWER UNIT ASSEMBLY (REF. #2~47, 51~54)
689-45300-06-4D
Ships in 2 to 3 days
$1,634.10
$1,442.24
Add
1
LOWER UNIT ASSEMBLY (REF. #2~17, 19~54)
689-45300-16-4D
Ships in 2 to 3 days
$1,022.00
$1,022.00
Add
2
CASING, LOWER
689-45311-04-4D
Ships in 2 to 3 days
$519.35
$467.38
Add
3
BEARING, CYLINDRICAL
93315-017U4-00
Ships in 2 to 3 days
$45.99
$34.29
Add
4
SLEEVE, DRIVE SHAFT
689-45536-00-00
Unavailable
5
SHIM (T:0.18MM)
664-45587-01-18
Ships in 2 to 3 days
$3.05
$2.47
Add
5
SHIM (T:0.40MM)
664-45587-01-40
Ships in 2 to 3 days
$3.05
$2.47
Add
5
SHIM (T:0.50MM)
664-45587-01-50
Ships in 2 to 3 days
$3.05
$2.47
Add
5
SHIM (T:0.15MM)
664-45587-01-15
Ships in 2 to 3 days
$3.05
$2.47
Add
5
SHIM (T:0.12MM)
664-45587-01-12
Ships in 2 to 3 days
$3.05
$2.47
Add
5
SHIM (T:0.10MM)
664-45587-01-10
Ships in 2 to 3 days
$3.05
$2.47
Add
5
SHIM (T:0.30MM)
664-45587-01-30
Ships in 2 to 3 days
$3.05
$2.47
Add
6
BEARING
93332-000U4-00
Ships in 2 to 3 days
$38.99
$32.73
Add
7
SHIM (T:0.50MM)
664-45567-01-50
Ships in 2 to 3 days
$3.05
$2.75
Add
7
SHIM (T:0.40MM)
664-45567-01-40
Ships in 2 to 3 days
$3.05
$2.47
Add
7
SHIM (T0.30MM)
664-45567-01-30
Ships in 2 to 3 days
$3.05
$2.75
Add
7
SHIM (T:0.18MM)
664-45567-01-18
Ships in 2 to 3 days
$3.05
$2.47
Add
7
SHIM (T:0.15MM)
664-45567-01-15
Ships in 2 to 3 days
$3.05
$2.75
Add
7
SHIM (T:0.12MM)
664-45567-01-12
Ships in 2 to 3 days
$3.05
$2.75
Add
7
SHIM (T:0.10MM)
664-45567-01-10
Ships in 2 to 3 days
$3.05
$2.75
Add
8
BEARING
93332-00005-00
In Stock
$71.99
$56.49
Add
9
PLUG, STRAIGHT SCREW
90340-08M04-00
In Stock
$11.35
$10.08
Add
10
.GASKET
90430-08020-00
In Stock
$1.35
$1.19
Add
11
HOUSING, WATER PUMP
689-44311-03-00
In Stock
$34.75
$29.85
Add
12
INSERT CARTRIDGE COMP
689-W4432-02-00
Ships in 2 to 3 days
$25.50
$22.95
Add
13
.DAMPER, WATER SEAL
689-44367-01-00
In Stock
$11.95
$10.59
Add
14
OUTER PLATE, CARTRIDGE
689-44323-03-00
Ships in 2 to 3 days
$10.95
$9.86
Add
15
GASKET, CARTRIDGE
689-44324-A0-00
In Stock
$5.55
$4.92
Add
16
IMPELLER
689-44352-02-00
In Stock
$28.15
$23.96
Add
17
.KEY, WOODRUFF
664-44338-00-00
In Stock
$9.60
$8.54
Add
18
BOLT, WITH WASHER
90119-06M07-00
Unavailable
19
.PIN, DOWEL
93604-10M03-00
In Stock
$4.60
$4.04
Add
20
PROTECTOR, OIL SEAL
689-44325-02-5B
Unavailable
21
O-RING
93210-40M10-00
In Stock
$5.90
$5.23
Add
22
.OIL SEAL
93101-22067-00
In Stock
$6.75
$5.95
Add
23
GASKET, WATER PUMP
689-44315-A0-00
In Stock
$5.30
$4.70
Add
24
COVER, OIL SEAL
689-45344-00-94
Ships in 2 to 3 days
$34.85
$31.37
Add
25
GASKET, WATER PUMP
689-44316-A0-00
In Stock
$6.05
$5.72
Add
26
DRIVE SHAFT COMP.
689-45501-10-00
Ships in 18 to 23 days
$278.05
$241.88
Add
26
DRIVE SHAFT COMP.
689-45501-00-00
Ships in 2 to 3 days
$281.90
$245.19
Add
27
PINION
689-45551-00-00
Unavailable
28
NUT
90179-09M02-00
Ships in 2 to 3 days
$5.99
$5.01
Add
29
GEAR
689-45560-00-00
Ships in 2 to 3 days
$222.60
$193.64
Add
30
SHAFT, PROPELLER
689-45611-01-00
Unavailable
31
SPRING, COMPRESSION
90501-10065-00
In Stock
$6.85
$6.48
Add
32
CLUTCH, DOG
664-45631-01-00
In Stock
$40.35
$38.14
Add
33
PIN, STRAIGHT
90250-05010-00
In Stock
$4.90
$4.34
Add
34
RING, CROSS PIN
648-45633-00-00
In Stock
$7.50
$6.63
Add
35
PLUNGER, SHIFT
648-45635-00-00
In Stock
$9.90
$9.36
Add
36
WASHER, PLATE
90201-20417-00
In Stock
$6.30
$5.60
Add
37
GEAR
689-45571-00-00
Ships in 2 to 3 days
$181.30
$157.73
Add
38
HOUSING, BEARING
689-45331-01-94
Unavailable
39
BEARING
93306-00612-00
In Stock
$39.99
$30.90
Add
40
SHIM (T:0.40MM)
664-45577-01-40
Ships in 2 to 3 days
$3.85
$3.12
Add
40
SHIM (T:0.10MM)
664-45577-01-10
Ships in 2 to 3 days
$5.50
$4.95
Add
40
SHIM (T:0.12MM)
664-45577-01-12
Ships in 2 to 3 days
$5.50
$4.42
Add
40
SHIM (T:0.15MM)
664-45577-01-15
Ships in 2 to 3 days
$5.50
$4.95
Add
40
SHIM (T:0.30MM)
664-45577-01-30
Ships in 2 to 3 days
$5.50
$4.42
Add
40
SHIM (T:0.18MM)
664-45577-01-18
Ships in 2 to 3 days
$3.85
$3.47
Add
40
SHIM (T:0.50MM)
664-45577-01-50
Ships in 2 to 3 days
$5.50
$4.95
Add
41
WASHER, THRUST
664-45576-00-00
Unavailable
42
.O-RING
93210-60MA3-00
In Stock
$6.85
$6.03
Add
43
BEARING
93315-22004-00
In Stock
$44.30
$38.34
Add
44
.OIL SEAL
93101-20M07-00
In Stock
$6.30
$5.60
Add
45
WASHER, CLAW
90214-45M02-00
In Stock
$8.95
$7.95
Add
46
NUT
664-45384-00-00
In Stock
$21.45
$20.28
Add
47
KEY, STRAIGHT
90282-04010-00
In Stock
$12.65
$11.96
Add
48
COVER, WATER PUMP HOUSING
689-44312-00-5B
Ships in 2 to 3 days
$21.20
$19.08
Add
49
.WASHER, PLATE
92990-06600-00
In Stock
$2.50
$2.50
Add
50
BOLT
97095-06035-00
In Stock
$4.60
$3.81
Add
51
SHIFT CAM ASSEMBLY
695-44150-10-00
Ships in 2 to 3 days
$106.30
$85.58
Add
51
SHIFT CAM ASSEMBLY
695-44150-00-00
Unavailable
52
.BOOT, SHIFT ROD
664-44147-00-00
Ships in 2 to 3 days
$31.30
$25.48
Add
53
BRACKET
689-44176-01-00
Unavailable
54
SCREW, PAN HEAD
97780-50110-00
In Stock
$6.99
$5.76
Add
