| # | Description | Price | Qty |
|---|---|---|---|
| 1 |

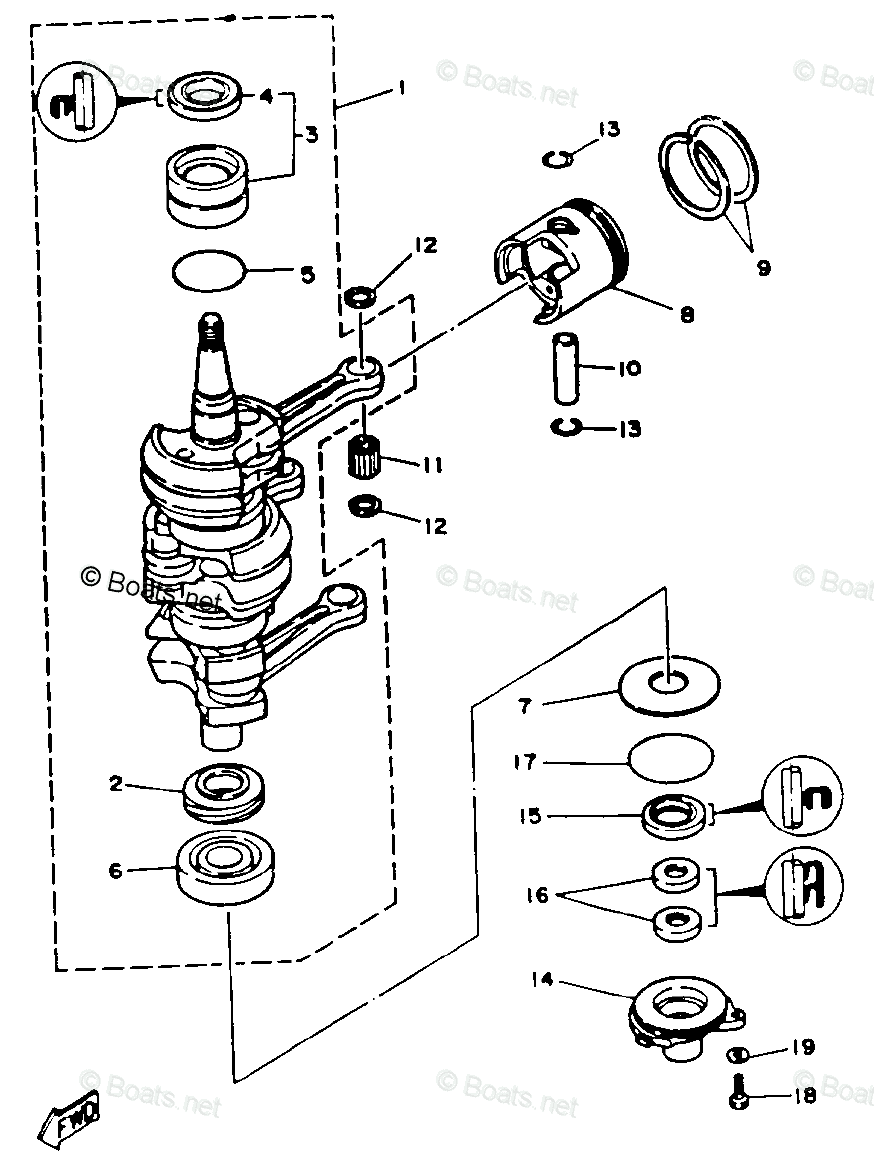

CRANKSHAFT ASSY
6J8-11400-11-00 |
$1,114.18 |
|
| 2 |
.GEAR, DRIVE
6J8-11536-00-00 |
$116.96 |
|
| 3 |
.BEARING
93311-632U7-00 |
$111.33 |
|
| 4 |
..OIL SEAL
93102-26M27-00 |
$10.59 |
|
| 5 |
.O-RING
93210-42159-00 |
$6.80 |
|
| 6 |
.BEARING
93306-305U3-00 |
$36.51 |
|
| 7 |
WASHER, PLATE
90201-50306-00 |
$5.16 |
|
| 8 |
PISTON (0.50MM O.S.)
6J8-11636-02-00 |
$72.34 |
|
| 8 |
PISTON (STD)
6J8-11631-02-97 |
$72.23 |
|
| 9 |
PISTON RING SET (0.50MM O.S.)
6J8-11601-21-00 |
$39.29 |
|
| 9 |
PISTON RING SET (STD)
6J8-11601-01-00 |
$43.65 |
|
| 10 |
PIN, PISTON
6J8-11633-00-00 |
$10.22 |
|
| 11 |
PIN, DOWEL
93602-16M10-00 |
$2.66 |
|
| 12 |
WASHER, PLATE
90201-16379-00 |
$5.36 |
|
| 13 |
CIRCLIP
93450-17129-00 |
$2.30 |
|
| 14 |
HOUSING, OIL SEAL
6J8-15396-00-5B |
$28.44 |
|
| 15 |
.OIL SEAL
93101-25M28-00 |
$11.40 |
|
| 16 |
OIL SEAL
93101-16M36-00 |
$6.48 |
|
| 17 |
.O-RING
93210-56M80-00 |
$7.14 |
|
| 18 |
BOLT, HEXAGON
97313-06016-00 |
$1.71 |
|
| 19 |
.WASHER, PLATE
92990-06600-00 |
$2.50 |
|
