Yamaha Outboard 30HP OEM Parts Diagram for Crankshaft Piston

#	Description	Price	Qty
1	OIL SEAL 93102-43M42-00 In Stock	~~$16.30~~ $14.49	Add
2	.OIL SEAL 93102-35M47-00 In Stock	~~$14.30~~ $12.65	Add
3	CRANKSHAFT 67C-11411-00-00 Ships in 35 to 40 days	~~$1,035.45~~ $913.88	Add
4	PLANE BEARING, CRANKSHAFT 1 62Y-11416-00-00 Ships in 8 to 13 days	~~$8.15~~ $7.71	Add
4	PLANE BEARING, CRANKSHAFT 1 62Y-11416-20-00 Ships in 2 to 3 days	~~$8.15~~ $7.34	Add
4	PLANE BEARING, CRANKSHAFT 1 62Y-11416-10-00	Unavailable
5	CONNECTING ROD ASSY 67C-11650-00-00 Ships in 2 to 3 days	~~$161.70~~ $134.39	Add
6	.BOLT, CONNECTING ROD 62Y-11654-00-00	Unavailable
7	PLANE BEARING, CONNECTING ROD 62Y-11656-00-00 In Stock	~~$7.20~~ $6.32	Add
7	PLANE BEARING, CONNECTING ROD 62Y-11656-10-00 In Stock	~~$7.20~~ $6.32	Add
7	PLANE BEARING, CONNECTING ROD 62Y-11656-20-00 In Stock	~~$7.20~~ $7.20	Add
8	PISTON (0.25MM O/S) 65W-11635-00-00 Ships in 2 to 3 days	~~$61.70~~ $55.53	Add
8	PISTON (0.50MM O/S) 65W-11636-00-00 Ships in 2 to 3 days	~~$62.25~~ $56.03	Add
8	PISTON (STD) 65W-11631-00-96 In Stock	~~$65.90~~ $62.28	Add
9	PISTON RING SET (STD) 67C-11603-00-00 In Stock	~~$42.75~~ $36.98	Add
9	PISTON RING SET (0.25MM O/S) 67C-11604-00-00 Ships in 2 to 3 days	~~$42.75~~ $38.48	Add
9	PISTON RING SET (0.50MM O/S) 67C-11605-00-00 Ships in 2 to 3 days	~~$56.05~~ $45.13	Add
10	PIN, PISTON 62Y-11633-00-00 In Stock	~~$12.10~~ $11.43	Add
11	CIRCLIP 93450-17129-00 In Stock	~~$3.50~~ $2.30	Add

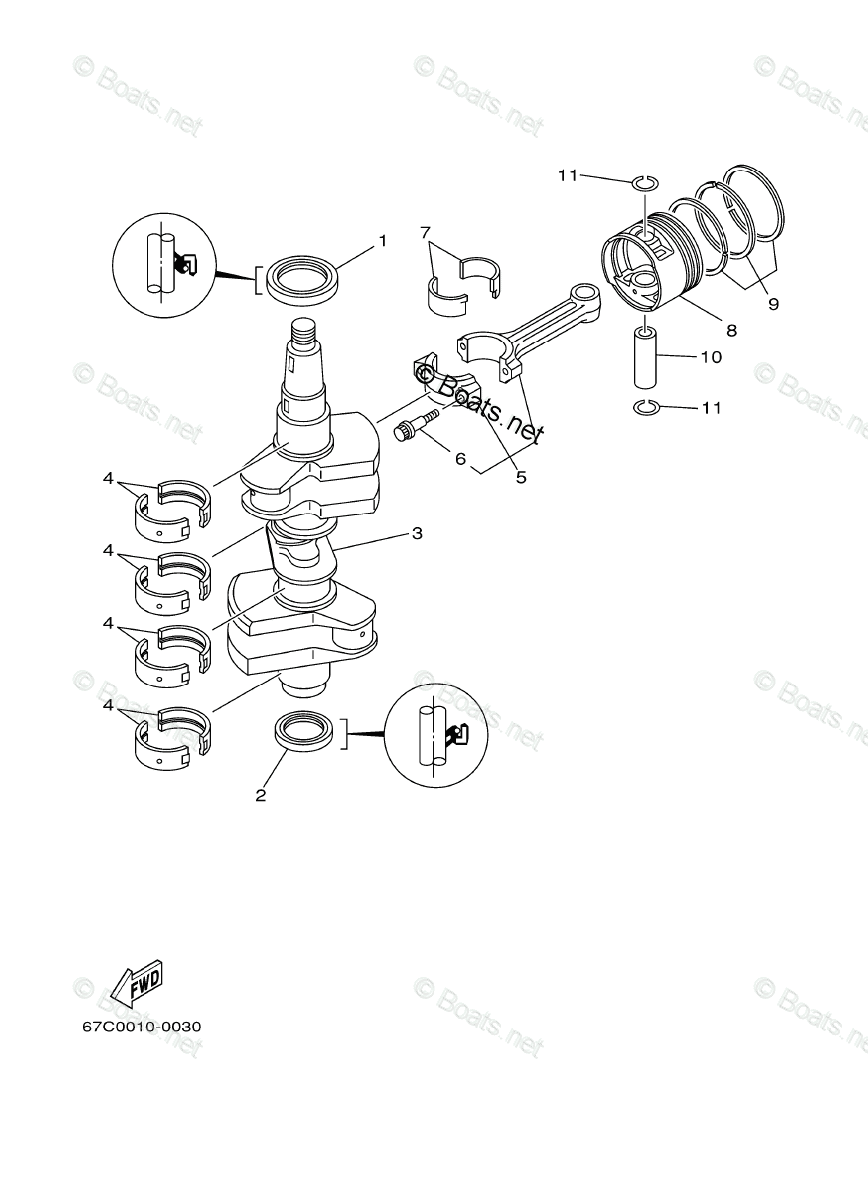

Yamaha F30TLRZ 2001 Crankshaft Piston Diagram
