Yamaha Outboard 50HP OEM Parts Diagram for Crankshaft Piston

#	Description	Price	Qty
1	.OIL SEAL 93102-43M42-00 In Stock	~~$16.30~~ $14.49	Add
2	OIL SEAL 93102-35M41-00 Ships in 2 to 3 days	~~$16.95~~ $13.64	Add
3	CRANKSHAFT 62Y-11411-00-00 Ships in 2 to 3 days	~~$1,176.05~~ $1,037.94	Add
4	PLANE BEARING, CRANKSHAFT 1 62Y-11416-10-00	Unavailable
4	PLANE BEARING, CRANKSHAFT 1 62Y-11416-20-00 Ships in 2 to 3 days	~~$8.15~~ $7.34	Add
4	PLANE BEARING, CRANKSHAFT 1 62Y-11416-00-00 Ships in 15 to 20 days	~~$8.15~~ $7.71	Add
5	CONNECTING ROD ASSEMBLY 62Y-11650-00-00 Ships in 2 to 3 days	~~$161.70~~ $134.39	Add
6	.BOLT, CONNECTING ROD 62Y-11654-00-00	Unavailable
7	PLANE BEARING, CONNECTING ROD 62Y-11656-20-00 In Stock	~~$7.20~~ $7.20	Add
7	PLANE BEARING, CONNECTING ROD 62Y-11656-10-00 In Stock	~~$7.20~~ $6.32	Add
7	PLANE BEARING, CONNECTING ROD 62Y-11656-00-00 In Stock	~~$7.20~~ $6.32	Add
8	PISTON (0.25MM O/S) 62Y-11635-00-00	Unavailable
8	PISTON (0.50MM O/S) 62Y-11636-00-00 Ships in 2 to 3 days	~~$68.15~~ $54.87	Add
8	PISTON (STD) 62Y-11631-00-96	Unavailable
9	PISTON RING SET (0.50MM O/S) 62Y-11605-00-00	Unavailable
9	PISTON RING SET (0.25MM O/S) 62Y-11604-00-00	Unavailable
9	PISTON RING SET (STD) 62Y-11603-00-00 In Stock	~~$39.70~~ $37.52	Add
10	PIN, PISTON 62Y-11633-00-00 In Stock	~~$12.10~~ $11.43	Add
11	.CIRCLIP 93450-17129-00 In Stock	~~$3.50~~ $2.30	Add

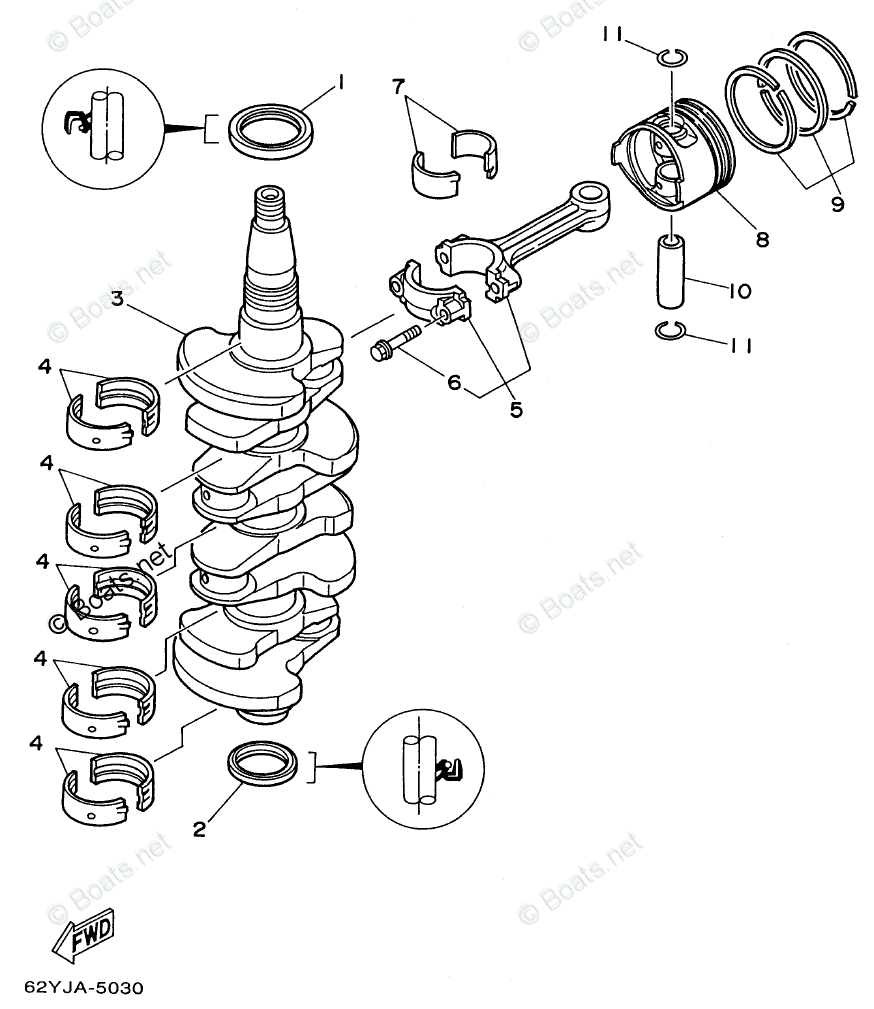

Yamaha T50TLRU 1996 Crankshaft Piston Diagram
