Yamaha Outboard 60HP OEM Parts Diagram for Crankshaft Piston

#	Description	Price	Qty
1	CRANKSHAFT ASSY 6H3-11400-03-00 Ships in 2 to 3 days	~~$1,483.95~~ $1,483.95	Add
2	.BEARING 93311-636U6-00 In Stock	~~$122.99~~ $103.68	Add
3	..OIL SEAL 93102-36M24-00 In Stock	~~$9.50~~ $8.46	Add
4	..CIRCLIP 93440-49M04-00	Unavailable
5	.BEARING 93306-306V1-00 Ships in 2 to 3 days	~~$60.99~~ $47.07	Add
6	.O-RING 93210-46M16-00 In Stock	~~$8.55~~ $7.58	Add
7	PISTON (STD) 6H3-11631-01-96 In Stock	~~$134.95~~ $113.75	Add
7	PISTON (0.25MM O/S) 6H3-11635-01-00 Ships in 2 to 3 days	~~$145.65~~ $117.27	Add
7	PISTON (0.50MM O.S.) 6H3-11636-01-00 Ships in 2 to 3 days	~~$145.65~~ $131.09	Add
8	PISTON RING SET (STD) 6K5-11601-02-00 In Stock	~~$66.70~~ $58.23	Add
8	PISTON RING SET (0.25MM O/S) 6K5-11601-12-00 Ships in 2 to 3 days	~~$66.70~~ $53.70	Add
8	PISTON RING SET (0.50MM O.S.) 6K5-11601-22-00 Ships in 2 to 3 days	~~$66.70~~ $60.03	Add
9	PIN, PISTON 6H3-11633-00-00 Ships in 2 to 3 days	~~$15.25~~ $13.73	Add
10	CLIP, PISTON PIN 688-11634-10-00 In Stock	~~$4.85~~ $4.26	Add
11	PIN, DOWEL 93603-18M09-00 In Stock	~~$3.05~~ $2.89	Add
12	WASHER, PLATE 90201-20417-00 In Stock	~~$6.30~~ $5.60	Add
13	HOUSING, OIL SEAL 6H3-15359-00-94 Ships in 2 to 3 days	~~$79.70~~ $64.16	Add
14	OIL SEAL 93102-30M23-00 In Stock	~~$12.50~~ $11.11	Add
15	OIL SEAL 93106-18M01-00 In Stock	~~$11.35~~ $10.08	Add
16	.O-RING 93210-65M50-00 In Stock	~~$9.25~~ $8.34	Add
17	BOLT, WITH WASHER 97595-06520-00 In Stock	~~$2.10~~ $1.85	Add

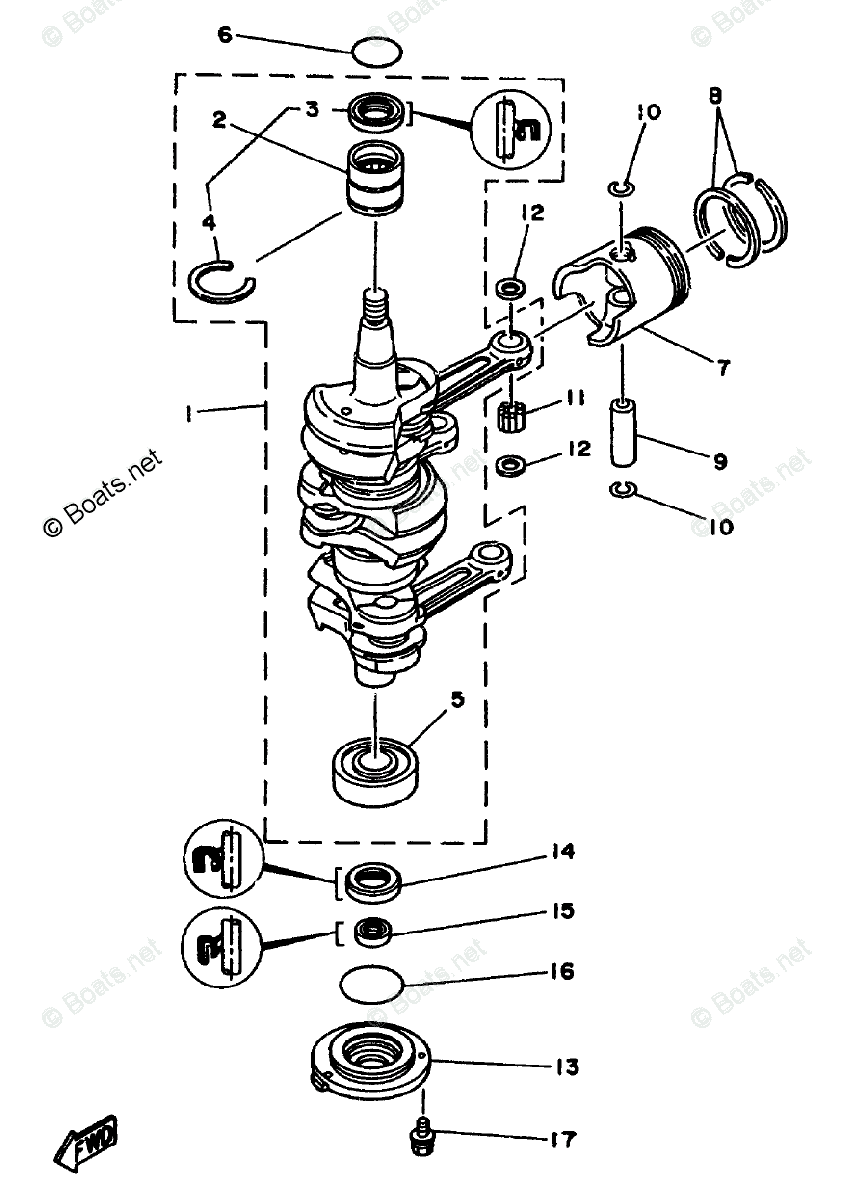

Yamaha C60TLRW 1998 Crankshaft Piston Diagram
