Yamaha F9.9SD 1990
Lower - Drive 1

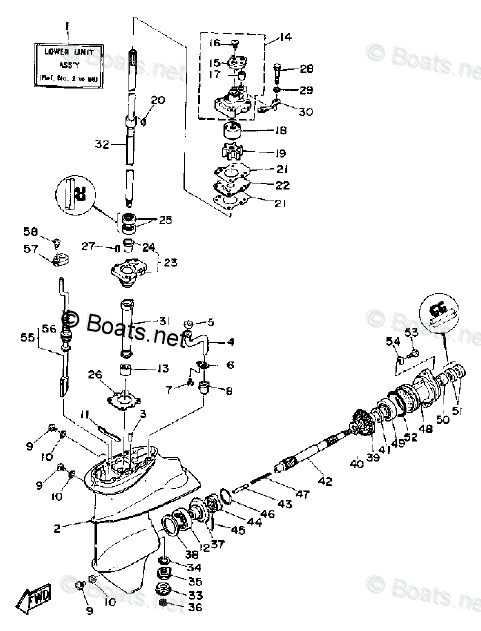

Diagram
Catalog
Yamaha
Outboard
9.9HP
F9.9SD 1990
Lower - Drive 1
Check Availability
Select your address
#
Description
Price
Qty
1
LOWER UNIT ASSEMBLY
6G9-45300-15-EK
Unavailable
1
LOWER UNIT ASSEMBLY
6G9-45300-03-EK
Unavailable
2
CASING, LOWER
6E8-45311-00-EK
Unavailable
3
PIN, DOWEL
93604-08062-00
In Stock
$3.05
$2.72
Add
4
TUBE, WATER
683-44362-01-00
Ships in 2 to 3 days
$12.65
$11.39
Add
5
DAMPER, WATER SEAL
683-44365-01-00
Ships in 2 to 3 days
$7.35
$5.89
Add
6
SET PLATE, WATER TUBE
683-44373-00-00
Ships in 2 to 3 days
$6.85
$6.17
Add
7
BOLT
97395-06010-00
In Stock
$2.99
$1.09
Add
8
DAMPER, WATER SEAL
6E7-44366-00-00
In Stock
$6.95
$6.11
Add
9
PLUG, STRAIGHT SCREW
90340-08M04-00
In Stock
$11.35
$10.08
Add
10
.GASKET
90430-08020-00
In Stock
$1.35
$1.19
Add
11
GUIDE, SEAL DAMPER
682-45376-01-00
Ships in 2 to 3 days
$6.85
$6.17
Add
12
BEARING
93332-00005-00
In Stock
$71.99
$56.49
Add
13
BEARING
93315-314V8-00
Ships in 2 to 3 days
$61.99
$48.89
Add
14
HOUSING, WATER PUMP
682-44300-01-00
In Stock
$39.45
$34.04
Add
15
.COVER, WATER PUMP HOUSING
682-44312-00-00
Ships in 2 to 3 days
$6.85
$6.17
Add
16
.SCREW, TAPPING
97780-40112-00
In Stock
$3.70
$3.23
Add
17
.DAMPER, WATER SEAL
682-44365-00-00
Unavailable
18
INSERT, CARTRIDGE
682-44322-00-00
In Stock
$11.20
$9.93
Add
19
IMPELLER
682-44352-01-00
In Stock
$24.70
$20.86
Add
20
.KEY, WOODRUFF
90280-03024-00
In Stock
$6.45
$6.45
Add
21
GASKET, WATER PUMP
682-44315-A0-00
In Stock
$2.10
$1.98
Add
22
OUTER PLATE, CARTRIDGE
682-44323-00-00
In Stock
$7.50
$6.63
Add
23
HOUSING, BEARING
6E7-45331-00-5B
In Stock
$47.50
$44.89
Add
24
.BUSHING, DRIVE SHAFT
626-45316-09-00
In Stock
$25.00
$21.17
Add
25
.OIL SEAL
93101-20048-00
In Stock
$7.99
$6.83
Add
26
PACKING, LOWER CASING
683-45315-A0-00
In Stock
$5.90
$5.58
Add
27
PIN, DOWEL
93606-12019-00
In Stock
$3.50
$2.79
Add
28
BOLT
97395-06040-00
In Stock
$2.75
$2.33
Add
29
WASHER, PLATE
92990-06600-00
In Stock
$2.50
$2.50
Add
30
PLATE
682-44328-00-00
Ships in 2 to 3 days
$4.70
$4.23
Add
31
SLEEVE, DRIVE SHAFT
6E7-45536-00-00
Ships in 2 to 3 days
$24.45
$22.01
Add
32
DRIVE SHAFT COMP.
6G9-45501-00-00
Ships in 2 to 3 days
$221.40
$199.26
Add
32
DRIVE SHAFT COMP.
6G9-45501-10-00
Ships in 2 to 3 days
$224.25
$195.06
Add
33
PINION (13T)
6E7-45551-00-00
Ships in 2 to 3 days
$91.60
$82.44
Add
34
SHIM 3
6E7-45587-01-30
Unavailable
34
SHIM 3
6E7-45587-01-50
Unavailable
34
SHIM 3
6E7-45587-01-40
Unavailable
34
SHIM 3
6E7-45587-01-12
Unavailable
34
SHIM 3
6E7-45587-01-18
Unavailable
34
SHIM 3
6E7-45587-01-10
Unavailable
34
SHIM 3
6E7-45587-01-15
Unavailable
35
BEARING, FLAT (#41)
93341-214U1-00
Ships in 2 to 3 days
$78.99
$55.97
Add
36
NUT
90179-08M06-00
In Stock
$11.49
$7.94
Add
37
GEAR
6E7-45560-00-00
Unavailable
38
SHIM (T:0.18MM)
664-45567-01-18
Ships in 2 to 3 days
$3.05
$2.47
Add
38
SHIM (T:0.10MM)
664-45567-01-10
Ships in 2 to 3 days
$3.05
$2.75
Add
38
SHIM (T0.30MM)
664-45567-01-30
Ships in 2 to 3 days
$3.05
$2.75
Add
38
SHIM (T:0.40MM)
664-45567-01-40
Ships in 2 to 3 days
$3.05
$2.47
Add
38
SHIM (T:0.50MM)
664-45567-01-50
Ships in 2 to 3 days
$3.05
$2.75
Add
38
SHIM (T:0.12MM)
664-45567-01-12
Ships in 2 to 3 days
$3.05
$2.75
Add
38
SHIM (T:0.15MM)
664-45567-01-15
Ships in 2 to 3 days
$3.05
$2.75
Add
39
GEAR 2 (27T)
6E7-45571-00-00
Ships in 2 to 3 days
$103.95
$85.07
Add
40
WASHER, PLATE
90201-17682-00
Ships in 2 to 3 days
$5.49
$5.17
Add
41
SHIM (T:0.50MM)
626-45577-00-05
In Stock
$5.50
$4.86
Add
41
SHIM (T:0.30MM)
626-45577-00-03
In Stock
$5.50
$5.20
Add
41
SHIM (T:0.10MM)
626-45577-00-01
Ships in 2 to 3 days
$5.50
$4.95
Add
42
SHAFT, PROPELLER
683-45611-00-00
In Stock
$177.45
$166.56
Add
43
PLUNGER, SHIFT
650-45635-00-00
In Stock
$10.15
$9.60
Add
44
CLUTCH, DOG
682-45631-00-00
In Stock
$42.85
$37.05
Add
45
PIN, STRAIGHT
90250-05010-00
In Stock
$4.90
$4.34
Add
46
RING, CROSS PIN
648-45633-00-00
In Stock
$7.50
$6.63
Add
47
SPRING, COMPRESSION
90501-14M06-00
Ships in 2 to 3 days
$5.50
$4.95
Add
48
CAP, LOWER CASING
99999-02231-00
In Stock
$119.45
$99.92
Add
49
BEARING
93306-00501-00
In Stock
$26.99
$22.67
Add
50
BEARING
93315-317U2-00
In Stock
$26.99
$19.52
Add
51
.OIL SEAL
93101-17054-00
In Stock
$9.90
$9.36
Add
52
.O-RING
93210-57M09-00
In Stock
$6.20
$6.20
Add
53
BOLT, HEXAGON
97395-06020-00
Unavailable
54
WASHER, PLATE
92990-06600-00
In Stock
$2.50
$2.50
Add
55
SHIFT CAM ASSY.
6G9-44150-10-00
Unavailable
55
SHIFT CAM ASSY.
6G9-44150-00-00
Unavailable
56
.BOOT, SHIFT ROD
682-44147-00-00
In Stock
$12.60
$11.18
Add
57
BRACKET
682-44176-00-00
In Stock
$8.30
$7.84
Add
58
SCREW, PAN HEAD
97780-50110-00
In Stock
$6.99
$5.76
Add
