Yamaha Outboard 9.9HP OEM Parts Diagram for Crankshaft Piston

#	Description	Price	Qty
1	CRANKSHAFT 6G8-11411-04-00 Ships in 2 to 3 days	~~$499.85~~ $449.81	Add
2	.OIL SEAL 93102-30M22-00 Ships in 2 to 3 days	~~$7.35~~ $6.17	Add
3	OIL SEAL 93101-25M24-00 In Stock	~~$7.35~~ $6.95	Add
4	PLANE BEARING, CRANKSHAFT 1 6G8-11416-00-00	Unavailable
4	PLANE BEARING, CRANKSHAFT 1 6G8-11416-10-00	Unavailable
4	PLANE BEARING, CRANKSHAFT 1 6G8-11416-20-00	Unavailable
5	CONNECTING ROD ASSY 6G8-11650-03-00 Ships in 2 to 3 days	~~$120.35~~ $96.88	Add
6	BOLT, CONNECTING ROD 6G8-11654-00-00 Ships in 2 to 3 days	~~$7.49~~ $4.32	Add
7	WASHER, PLATE 90201-06M00-00 Ships in 2 to 3 days	~~$3.30~~ $2.66	Add
8	PLANE BEARING, CRANKSHAFT 1 6G8-11426-00-00	Unavailable
9	PISTON STD 6G8-11631-01-97 Ships in 2 to 3 days	~~$60.40~~ $54.36	Add
9	PISTON 2 O/S 0.50 6G8-11636-01-00	Unavailable
10	PISTON RING SET 6G8-11610-01-00	Unavailable
10	PISTON RING SET (2ND O/S) 6G8-11610-21-00	Unavailable
11	PIN, PISTON 634-11633-00-00	Unavailable
12	CIRCLIP 93450-15023-00 In Stock	~~$6.99~~ $5.76	Add

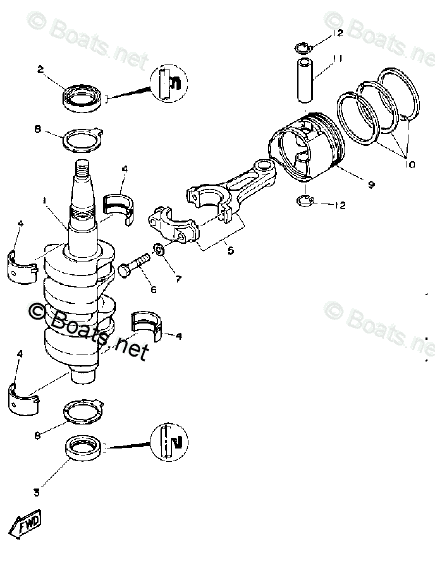

Yamaha FT9.9EXD 1990 Crankshaft Piston Diagram
