1. Catalog
  2. Yamaha
  3. Outboard
  4. 90HP
  5. 90TJRW 1998

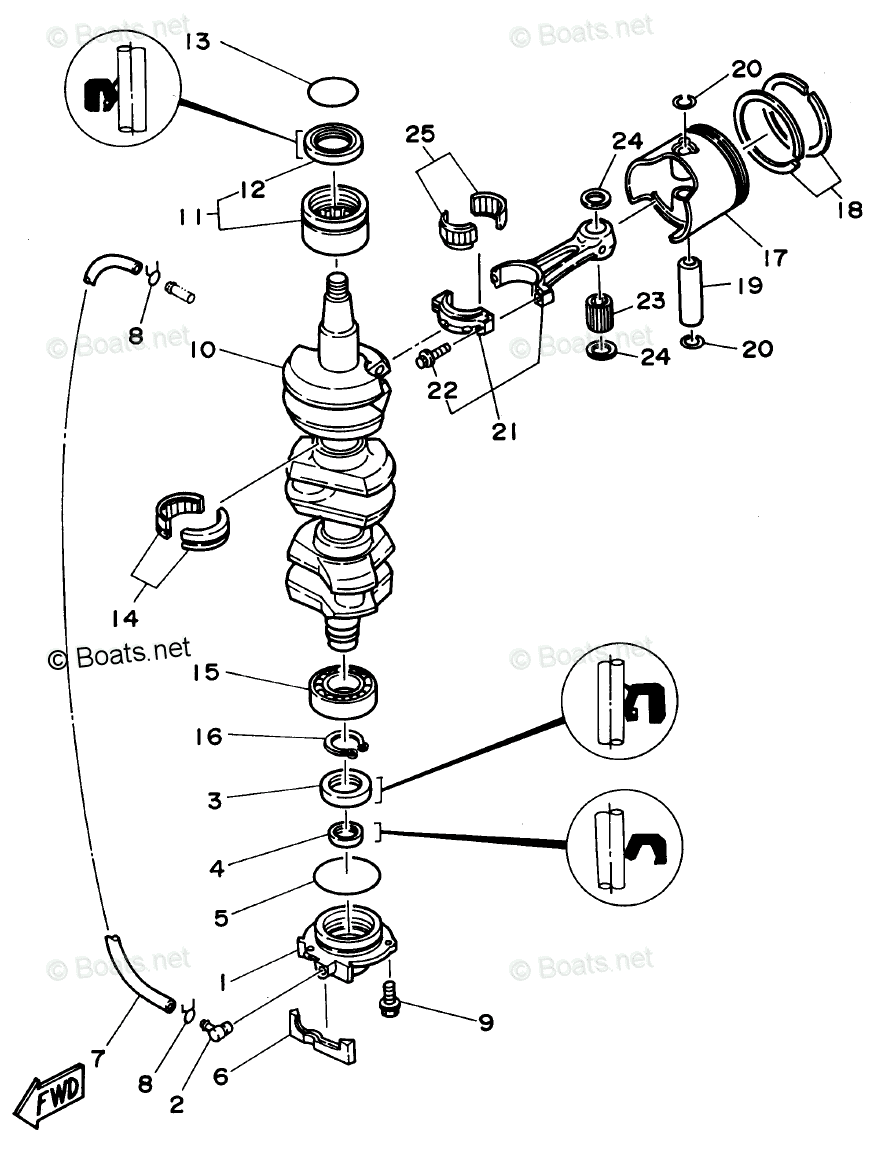

  6. Crankshaft Piston

Check Availability

# Description Price Qty
1 HOUSING, OIL SEAL
6H1-15359-01-94
Ships in 2 to 3 days
$56.15
$50.54
Add
2 CHECK VALVE ASSY
688-11370-00-00
Ships in 2 to 3 days
$14.20
$12.78
Add
3 .OIL SEAL
93102-30M05-00
In Stock
$9.90
$8.83
Add
4 OIL SEAL
93104-20M02-00
In Stock
$6.15
$5.45
Add
5 O-RING
93210-62269-00
In Stock
$9.25
$8.34
Add
6 SEAL, CRANKCASE
688-15379-00-00
Ships in 2 to 3 days
$14.45
$12.19
Add
7 HOSE (L460)
90445-07M86-00
In Stock
$27.99
$16.75
Add
8 CLIP
90467-06016-00
In Stock
$2.80
$2.51
Add
9 BOLT, WITH WASHER
97595-06520-00
In Stock
$2.10
$1.85
Add
10 CRANKSHAFT
688-11411-01-00
In Stock
$902.35
$812.12
Add
11 BEARING
93310-636U4-00
In Stock
$95.99
$77.44
Add
12 .OIL SEAL
93102-36M02-00
In Stock
$9.50
$8.46
Add
13 .O-RING
93210-46M16-00
In Stock
$8.55
$7.58
Add
14 BEARING
93310-835U8-00
Ships in 2 to 3 days
$150.99
$112.93
Add
15 BEARING
93306-206U5-00
In Stock
$82.99
$65.08
Add
16 CIRCLIP
93410-32M00-00
In Stock
$6.99
$5.76
Add
17 PISTON (STD)
6H1-11631-03-95
Ships in 2 to 3 days
$147.35
$132.62
Add
17 PISTON (0.25MM O/S)
6H1-11635-03-00
Ships in 2 to 3 days
$158.90
$143.01
Add
17 PISTON (0.50MM O/S)
6H1-11636-03-00
Ships in 2 to 3 days
$158.90
$143.01
Add
18 PISTON RING SET (0.50MM O/S)
688-11605-A0-00
In Stock
$58.65
$55.43
Add
18 PISTON RING SET (0.25MM O/S)
688-11604-A0-00
Ships in 2 to 3 days
$54.85
$49.37
Add
18 PISTON RING SET (STD)
688-11603-A0-00
In Stock
$54.85
$51.84
Add
19 PIN, PISTON
663-11633-00-00
Ships in 2 to 3 days
$18.40
$16.56
Add
20 CLIP, PISTON PIN
688-11634-10-00
In Stock
$4.85
$4.26
Add
21 CONNECTING ROD ASSEMBLY
688-11650-00-00
Ships in 2 to 3 days
$226.50
$203.85
Add
22 .BOLT
90109-08M61-00
In Stock
$6.95
$6.11
Add
23 PIN, DOWEL
93603-21111-00
In Stock
$3.30
$3.12
Add
24 WASHER, PLATE
90201-20417-00
In Stock
$6.30
$5.60
Add
25 BEARING
93310-730V8-00
In Stock
$92.99
$81.31
Add
